Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension And Axle >> Steering Knuckle >> Components

Steering Knuckle: Components

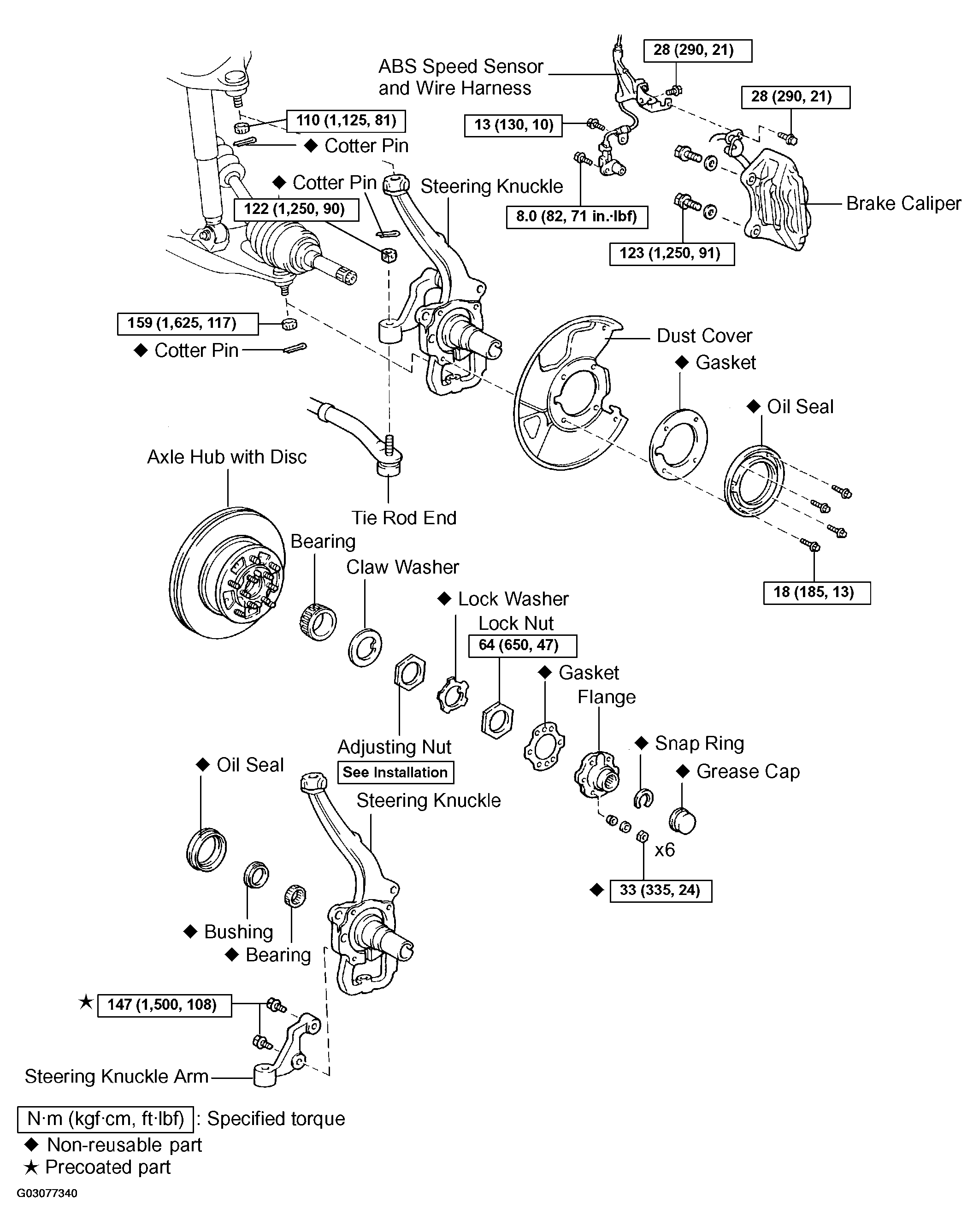

Fig 1: Exploded View Of Steering Knuckle Components

G03077340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
