Rear Stabilizer Bar: Components

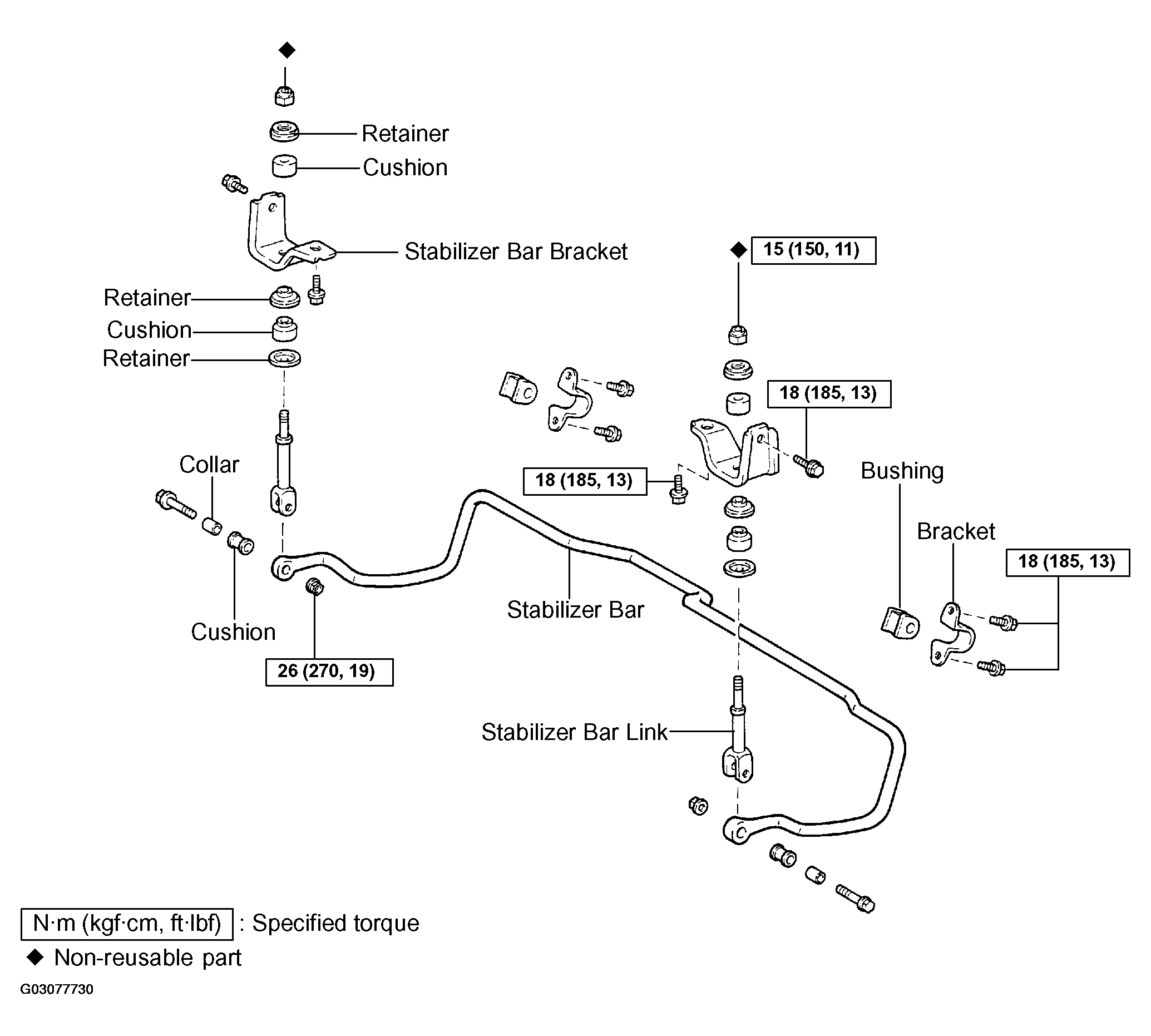

Fig 1: Removing Rear Stabilizer Bar Components

G03077730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
