Front Stabilizer Bar: Components

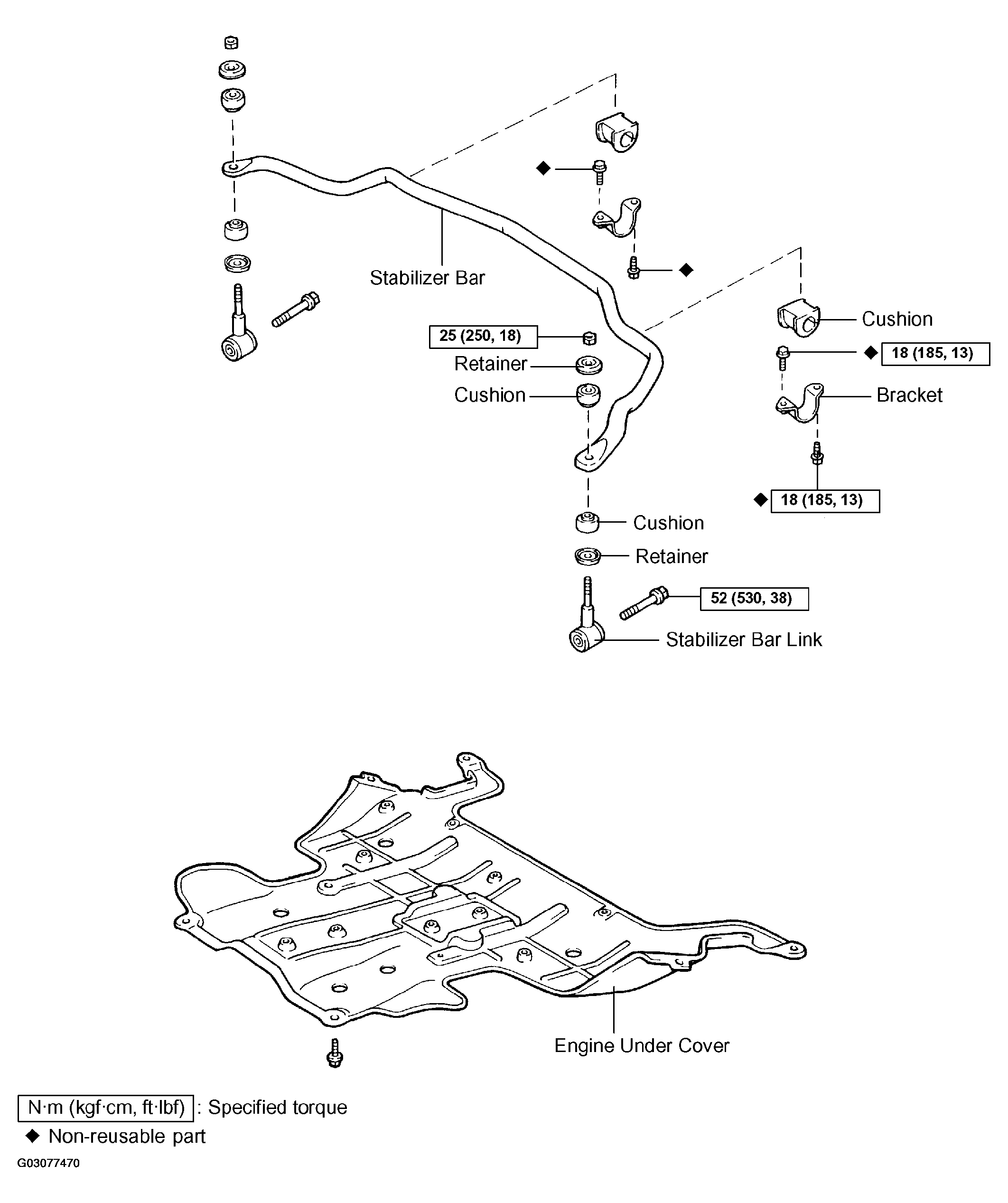

Fig 1: Front Stabilizer Bar Components

G03077470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
