Front Shock Absorber: Components

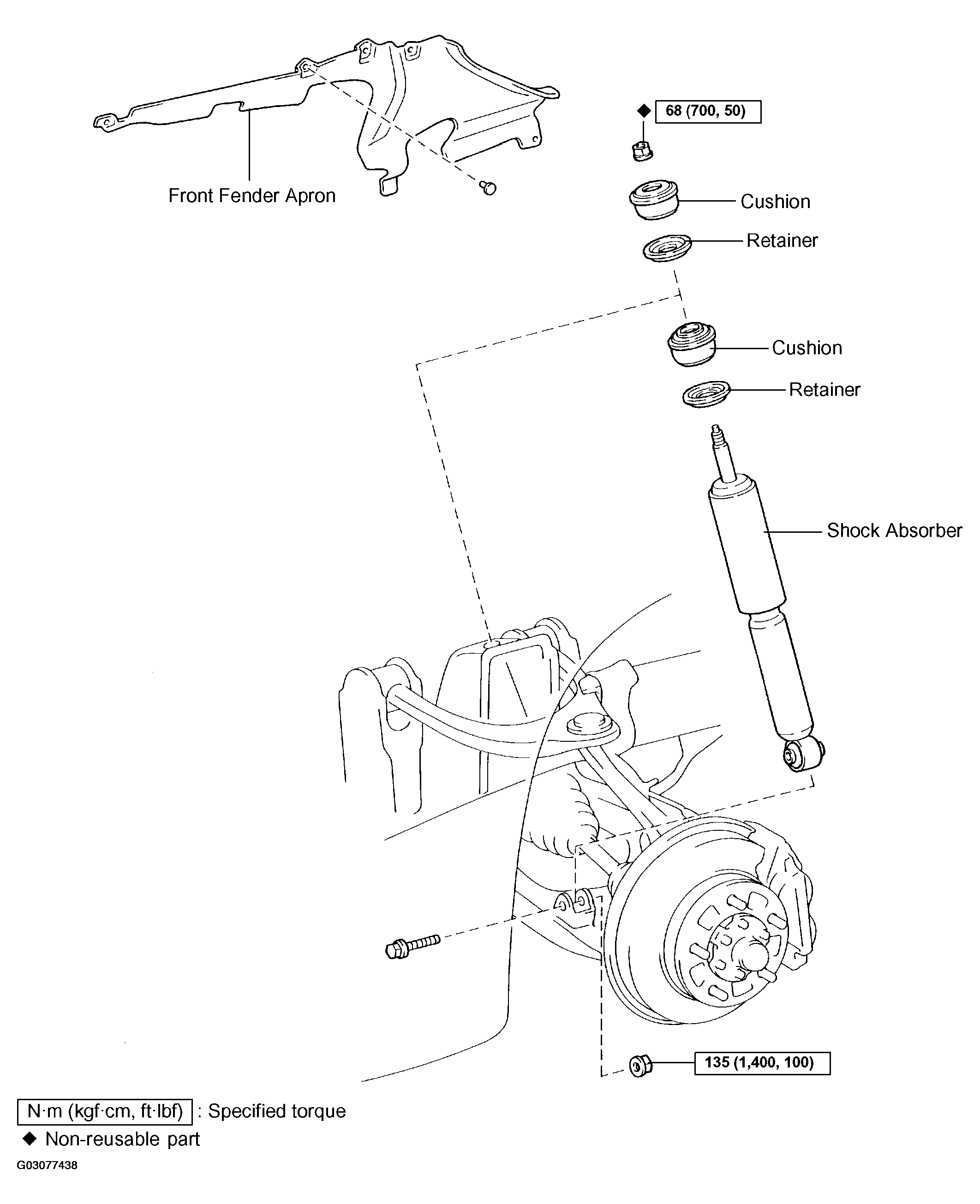

Fig 1: Front Shock Absorber Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
