Front Drive Shaft: Components

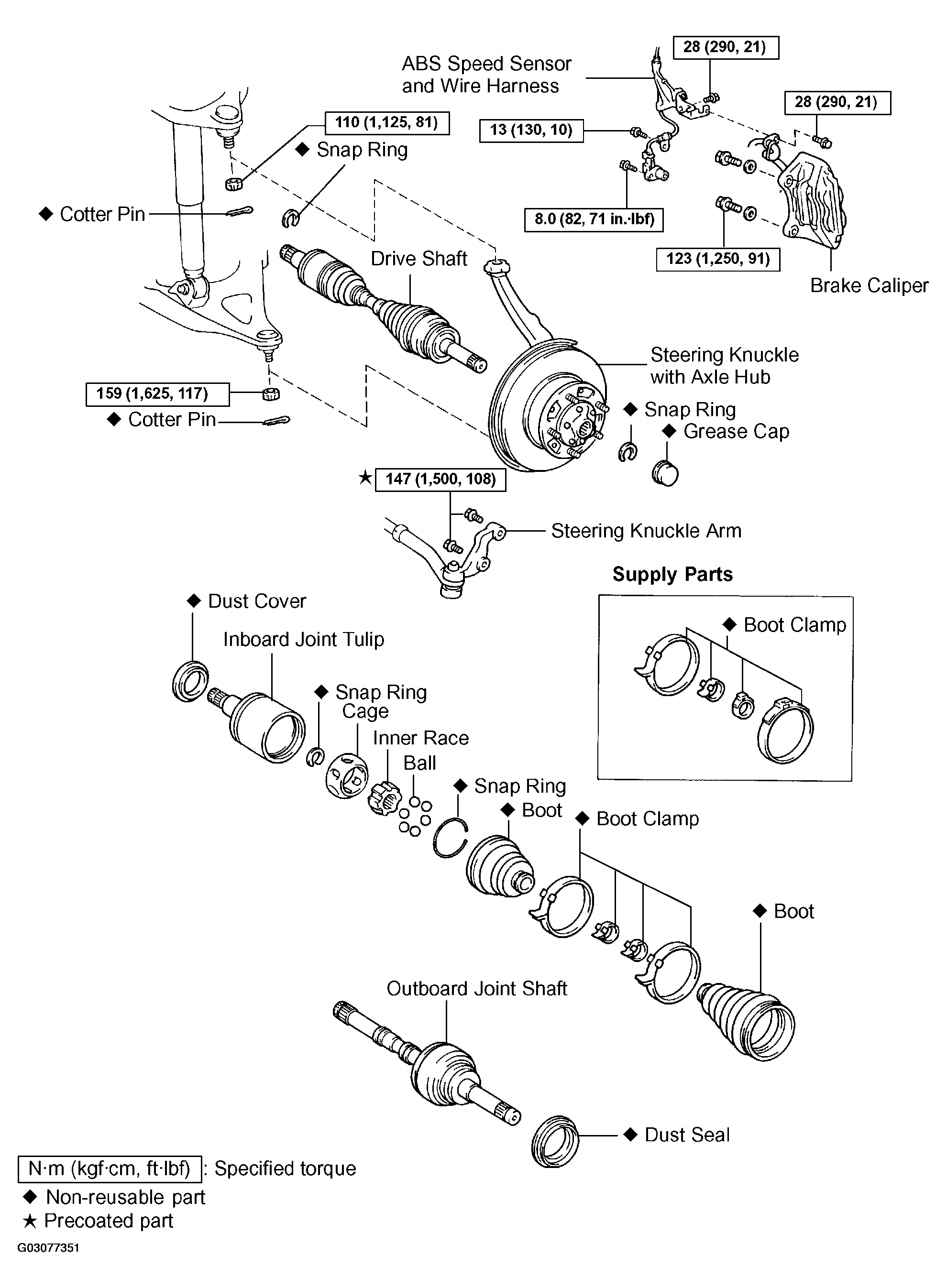

Fig 1: Identifying Front Drive Shaft Components

G03077351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
