Front Axle Hub: Reassembly

INSTALL DISC
1. Mount the disc in a soft jaw vice.
  NOTE: Close vice until it holds disc, do not tighten further.

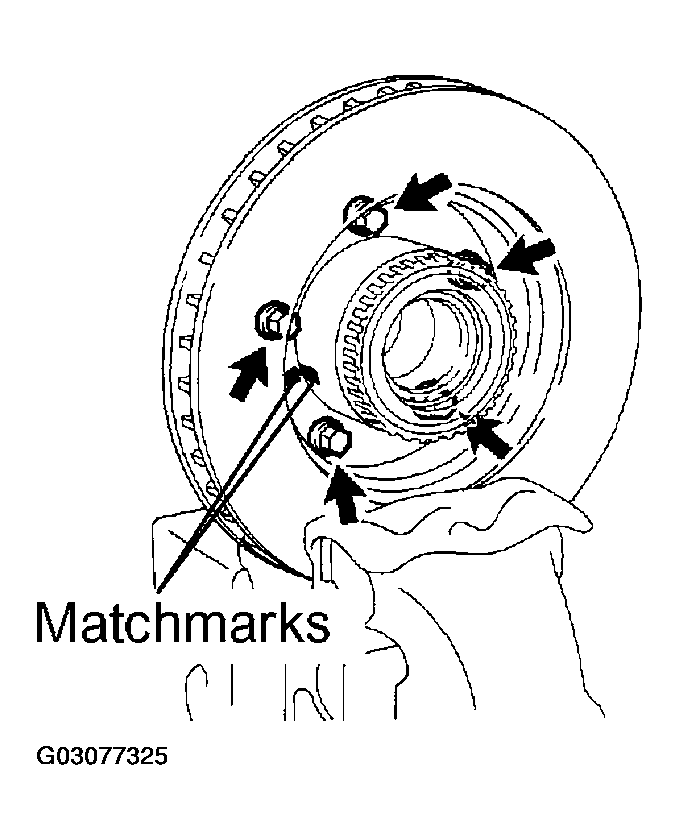

2. Align the matchmarks on the axle hub and disc.
3. Install the 5 bolts to the axle hub.
  Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)

  Fig 1: Aligning Matchmarks On Axle Hub & Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BEARING OUTER RACES
1. Using SST and a hammer, carefully install a new outside bearing outer race.
  SST 09950-60020 (09951-00730), 09950-70010 (09951-07100)

  Fig 2: Installing New Outside Bearing Outer Race Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, carefully install a new inside bearing outer race.
  SST 09950-60020 (09951-00890), 09950-70010 (09951-07100)

  NOTE: Be careful not to damage the ABS speed sensor rotor.

  Fig 3: Installing Inside Bearing Outer Race Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BACK BEARING WITH MP GREASE
1. Place MP grease in the palm of your hand.
2. Pack grease into a new bearing, continuing until the grease oozes out from the other side.
3. Employ the same manner around the bearing circumference.

  Fig 4: Placing MP Grease In Palm Of Your Hand
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

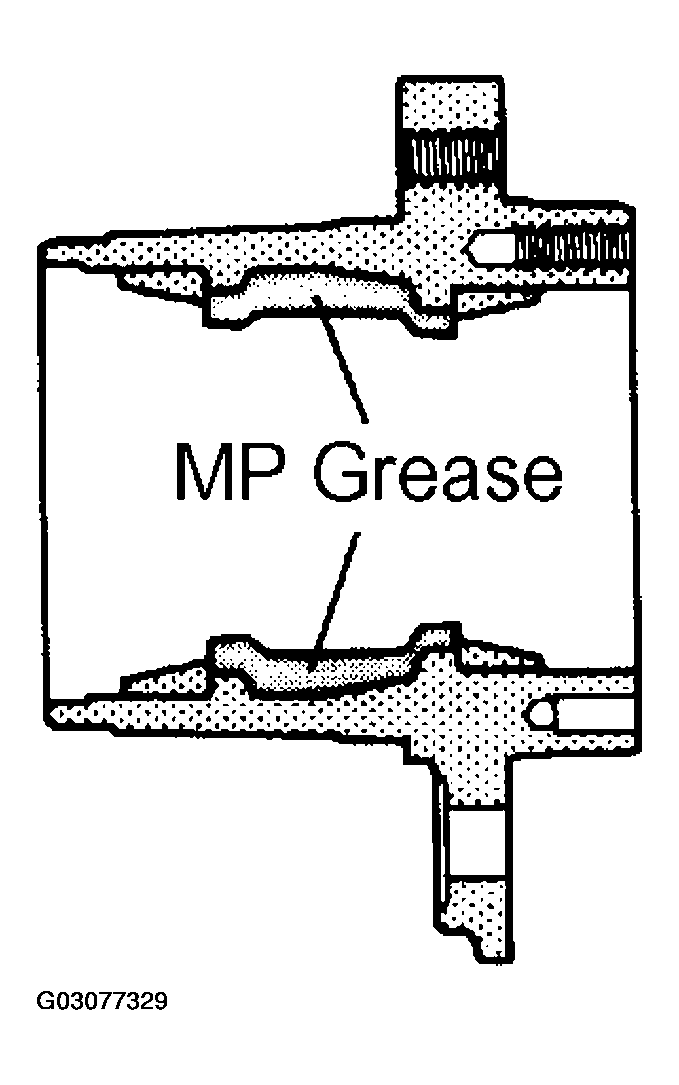

COAT INSIDE OF AXLE HUB WITH MP GREASE
INSTALL INNER BEARING AND OIL SEAL
1. Place the inner bearing into the axle hub.

  Fig 5: Installing Inner Bearing & Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

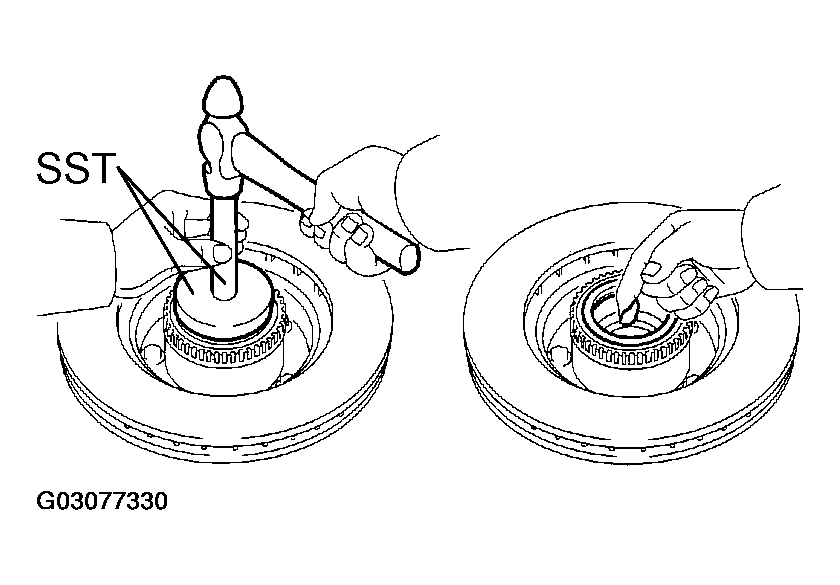

2. Using SST and a hammer, install a new oil seal into the axle hub.
  SST 09950-60020 (09951-01030), 09950-70010 (09951-07100)

  NOTE: Be careful not to damage the ABS speed sensor rotor.
3. Coat the lip of the oil seal with MP grease.

  Fig 6: Installing Oil Seal Into Axle Hub Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
