Front Axle Hub: Disassembly

REMOVE OIL SEAL AND BEARING
1. Using a screwdriver, pry out the oil seal.
2. Remove the bearing from the axle hub.
REMOVE BEARING OUTER RACES
1. Using a brass bar and hammer, remove the outside bearing outer race.
  NOTE: Be careful not to damage the ABS speed sensor rotor.

  Fig 1: Removing Outside Bearing Outer Race Using Brass Bar & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and hammer, remove the inside bearing outer race.
INSPECT BEARINGS
Clean the bearings and outer races and inspect them for wear or damage.

Fig 2: Removing Inside Bearing Outer Race Using Brass Bar & Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC
1. Mount the axle hub with the disc in a soft jaw vice.
  NOTE: Close vice until it holds disc, do not tighten further.
2. Place matchmarks on the axle hub and disc.
3. Remove the 5 bolts and separate the axle hub and disc.

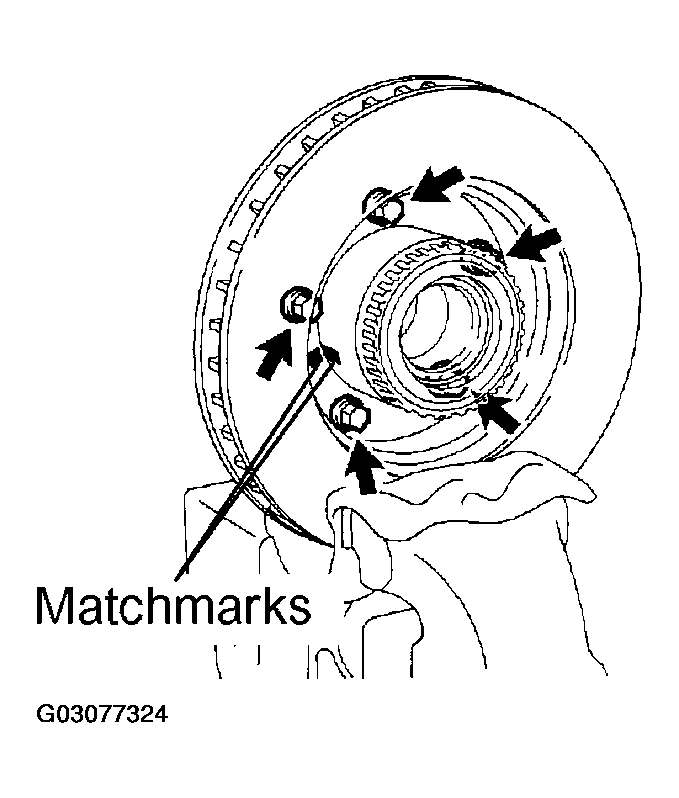

  Fig 3: Placing Matchmarks On Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
