Front Axle Hub: Components

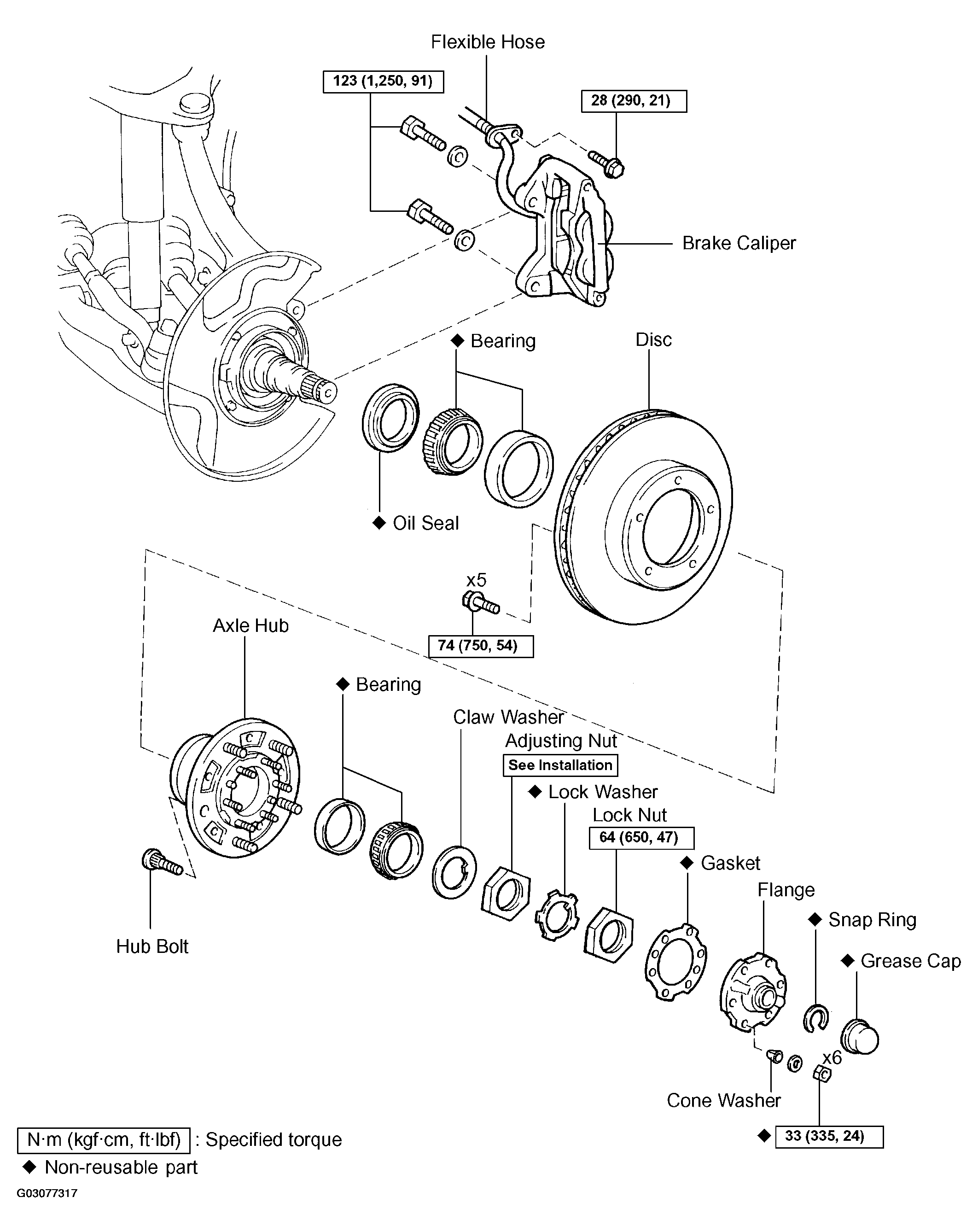

Fig 1: Exploded View Of Front Axle Hub Components

G03077317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
