Tilt Steering Column: Disassembly

NOTE: When using a vise, do not overtighten it.
  1. REMOVE NO. 2 LOWER COVER

    Remove the 2 nuts and lower side No. 2 lower cover.

  2. REMOVE INTERMEDIATE SHAFT ASSEMBLY
    1. Place matchmarks on the intermediate shaft assembly and main shaft assembly.
      Fig 1: Placing Matchmarks On Intermediate Shaft And Main Shaft Assembly
      G03077029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and intermediate shaft assembly with the upper side No. 2 lower cover.
    3. Remove the thrust stopper from the main shaft assembly.
  3. REMOVE TRANSPONDER KEY AMPLIFIER
    1. Widen the claw hung on the upper bracket by approx. 1.0 mm (0.039 in.) using a screwdriver.
    2. Pull the transponder key amplifier toward the rear of the vehicle with the claw open.
      NOTE: Take care not to use excessive force to prevent the case from being damage.
  4. REMOVE COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
    1. Using a centering punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 bolts.
    3. Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.
      Fig 2: Removing Column Upper Bracket And Column Upper Clamp Using Screw Extractor
      G03077030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COLUMN TUBE SUPPORT
    1. Remove the bolt.
    2. Remove the column tube support with tube attachment.
    3. Remove the tube attachment from the column tube support.
  6. REMOVE 2 ENERGY ABSORBING PLATES
    1. Using pliers, remove the 2 energy absorbing clips.
    2. Remove the 2 energy absorbing plates and 2 energy absorbing guides.
    Fig 3: Removing Energy Absorbing Plates And Guides
    G03077031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE 4 TENSION SPRINGS

    HINT:

    Remove the springs with the tilt function at maximum tilt up.

  8. REMOVE TILT LEVER
    1. Using a screwdriver, remove the spring nut.
      Fig 4: Removing Spring Nut
      G03077032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tilt lever.
    3. Remove the 2 bushings from the column upper tube.
  9. REMOVE TILT LEVER LINK
  10. REMOVE COLUMN UPPER TUBE WITH MAIN SHAFT ASSEMBLY
    1. Using a hexagon wrench, remove the 2 tilt steering bolts.
    2. Remove the upper tube with the main shaft assembly from the column tube.
  11. REMOVE TILT LEVER RETAINER
  12. REMOVE MAIN SHAFT ASSEMBLY
    1. Using SST, compress the compression spring.

      SST 09950-4001 1 (09958-04011)

      NOTE: Do not bend the universal joint of the shaft more than 20°.

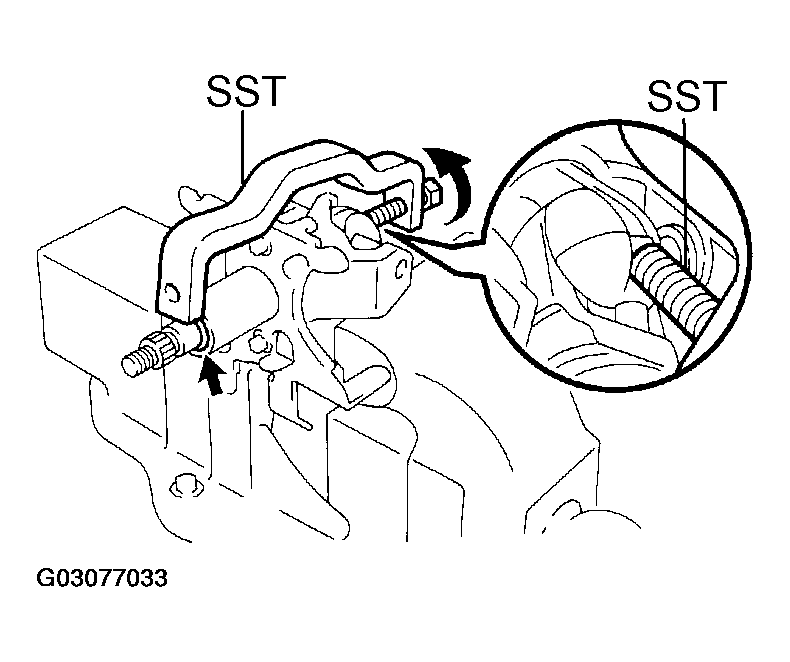

      Fig 5: Compressing Compression Spring
      G03077033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a snap ring expander, remove the snap ring from the shaft.
    3. Remove the shaft assembly from the column upper tube.
    4. Remove the compression spring and bearing thrust collar from the shaft.
  13. REMOVE TURN SIGNAL BRACKET

    Remove the 2 bolts and turn signal bracket.

  14. REMOVE TILT STEERING PAWL
    1. Using a pin punch and hammer, tap out the tilt steering No. 2 shaft.
    2. Remove the pawl from the column upper tube.
    3. Remove the pin from the pawl.
    Fig 6: Removing Tilt Steering Pawl
    G03077034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BUSHING

    Using a screwdriver, tap out the bushing.

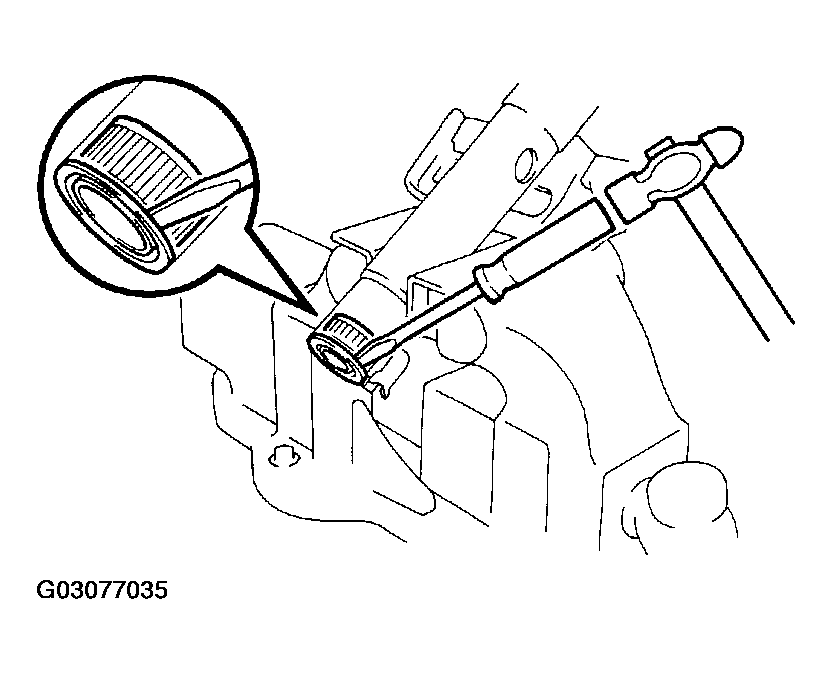

    Fig 7: Tapping Out Bushing Using Screwdriver
    G03077035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
