Power Steering Gear: Disassembly

NOTE: When using a vise, do not overtighten it.
  1. SECURE PS GEAR ASSEMBLY IN VISE

    Using SST, secure the gear assembly in a vise, as shown in Fig 1.

    SST 09630-00014 (09631-00142)

    Fig 1: Securing Gear Assembly In Vise
    G03077086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE 2 TURN PRESSURE TUBES

    Using SST, remove the tube.

    SST 09023-38201

    Fig 2: Removing Turn Pressure Tubes Using SST
    G03077087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE RH AND LH CLIPS, RACK BOOTS AND CLAMPS
    1. Using pliers, loosen the clamp, as shown in Fig 3.
      NOTE: Be careful not to damage the boot.
      Fig 3: Loosening Clamp Using Pliers
      G03077088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip, rack boot and clamp.
    3. Employ the same manner described above to the other side.

    HINT:

    Mark the RH and LH rack boots.

  4. REMOVE RH AND LH RACK ENDS AND CLAW WASHERS
    1. Using a screwdriver and hammer, stake back the washer.
      NOTE: Avoid and impact to the steering rack.
      Fig 4: Staking Back Washer
      G03077089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a spanner to hold the steering rack steady, and using SST, remove the rack end.

      SST 09922-10010

      NOTE: Use SST 09922-10010 in the direction as shown in Fig 5.
      Fig 5: Removing Rack End
      G03077090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the claw washer.
    4. Employ the same manner described above to the other side.

    HINT:

    Mark the RH and LH rack ends.

  5. REMOVE RACK GUIDE SPRING CAP LOCK NUT

    Using SST, remove the nut.

    SST 09922-10010

    NOTE: Use SST 09922-10010 in the direction as shown in Fig 6.

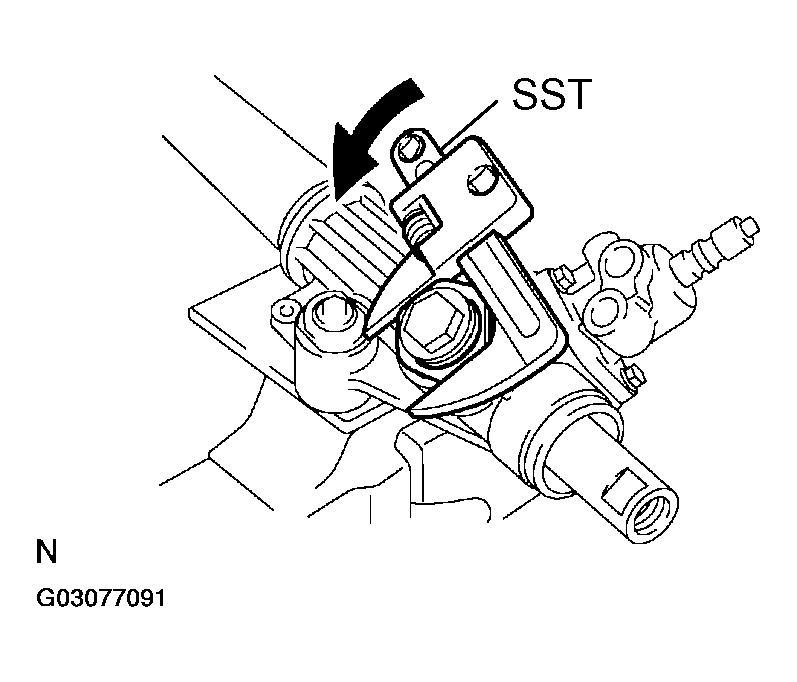

    Fig 6: Removing Nut Using SST
    G03077091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RACK GUIDE SPRING CAP
  7. REMOVE RACK GUIDE SPRING AND RACK GUIDE SUB-ASSEMBLY
  8. REMOVE DUST COVER
  9. REMOVE CONTROL VALVE HOSING WITH CONTROL VALVE ASSEMBLY
    1. Place matchmarks on the valve housing and rack housing.

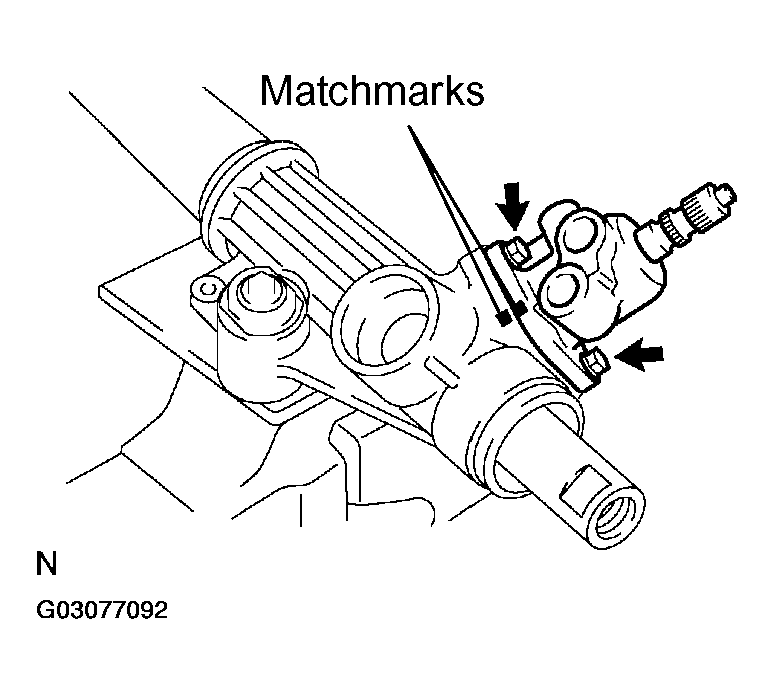

      Fig 7: Placing Matchmarks On Valve Housing
      G03077092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
    3. Pull out the control valve assembly with the valve housing.
    4. Remove the O-ring from the valve housing.
  10. REMOVE CONTROL VALVE ASSEMBLY
    1. Using SST, loosen the bearing guide nut.

      SST 09631-20060

      Fig 8: Removing Bearing Guide Nut Using SST
      G03077093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Wind vinyl tape to the control valve shaft.
      Fig 9: Winding Vinyl Tape To Control Valve Shaft
      G03077094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a plastic hammer, tap out the valve assembly with the nut from the control valve housing.
      NOTE: Be careful not to damage the oil seal lip.
    4. Remove the nut from the valve assembly.
      NOTE: Be careful not the damage the oil seal lip.
    5. Remove the O-ring from the nut.
  11. REMOVE CYLINDER END STOPPER AND SPACER
    1. Using SST, remove the stopper.

      SST 09922-10010

      NOTE: Use SST 09922-10010 in the direction as shown in Fig 10.
      Fig 10: Removing Stopper
      G03077095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the stopper.
  12. REMOVE STEERING RACK AND OIL SEAL
    1. Using SST, press out the rack and oil seal.
      NOTE: Take care not to drop the rack.

      SST 09950-70010 (09951-07200)

    2. Remove the oil seal from the rack.
      Fig 11: Pressing Out Rack & Oil Seal Using SST
      G03077096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
