Combination Meter: Location

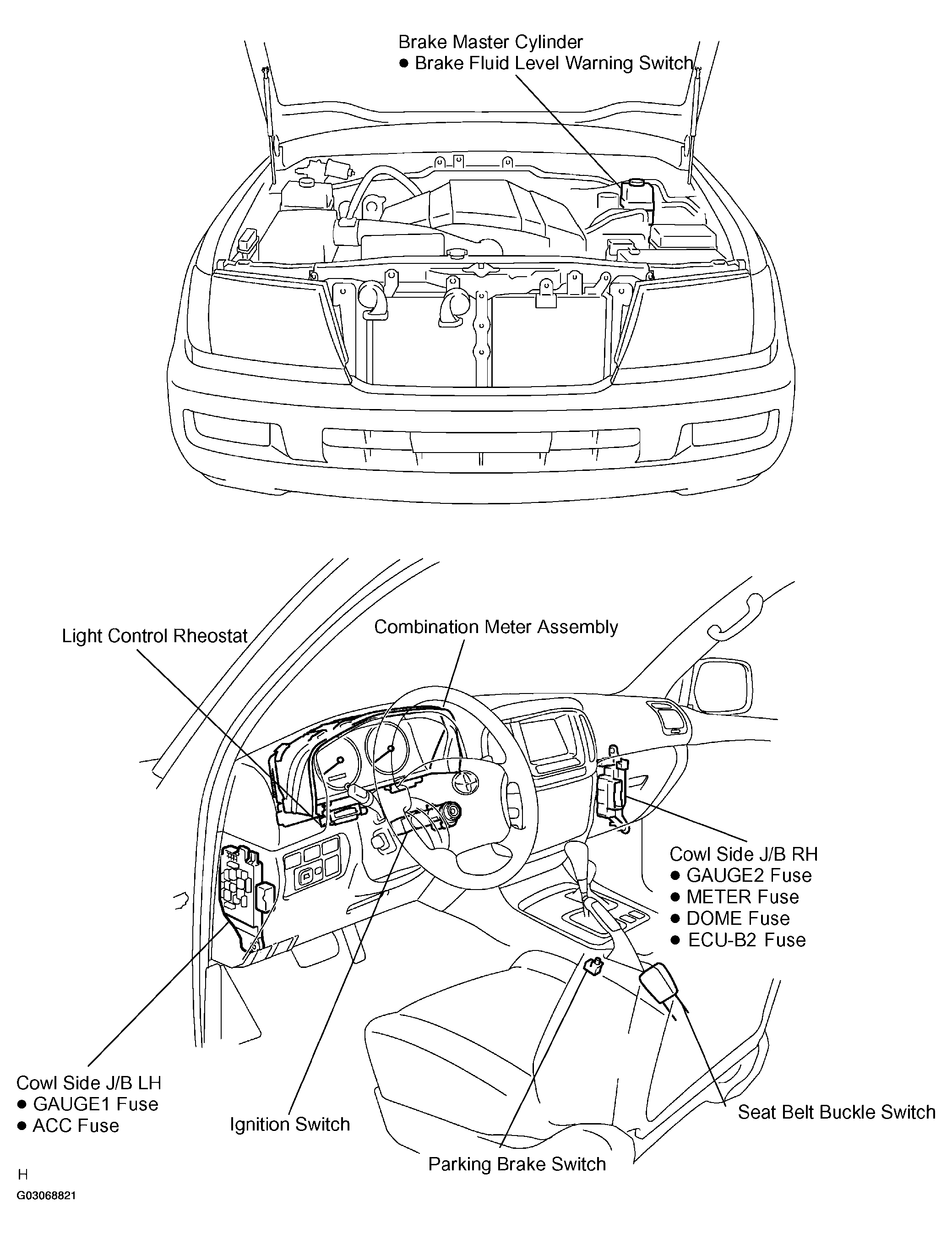

Fig 1: Locating Combination Meter Components (1 Of 2)
G03068821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

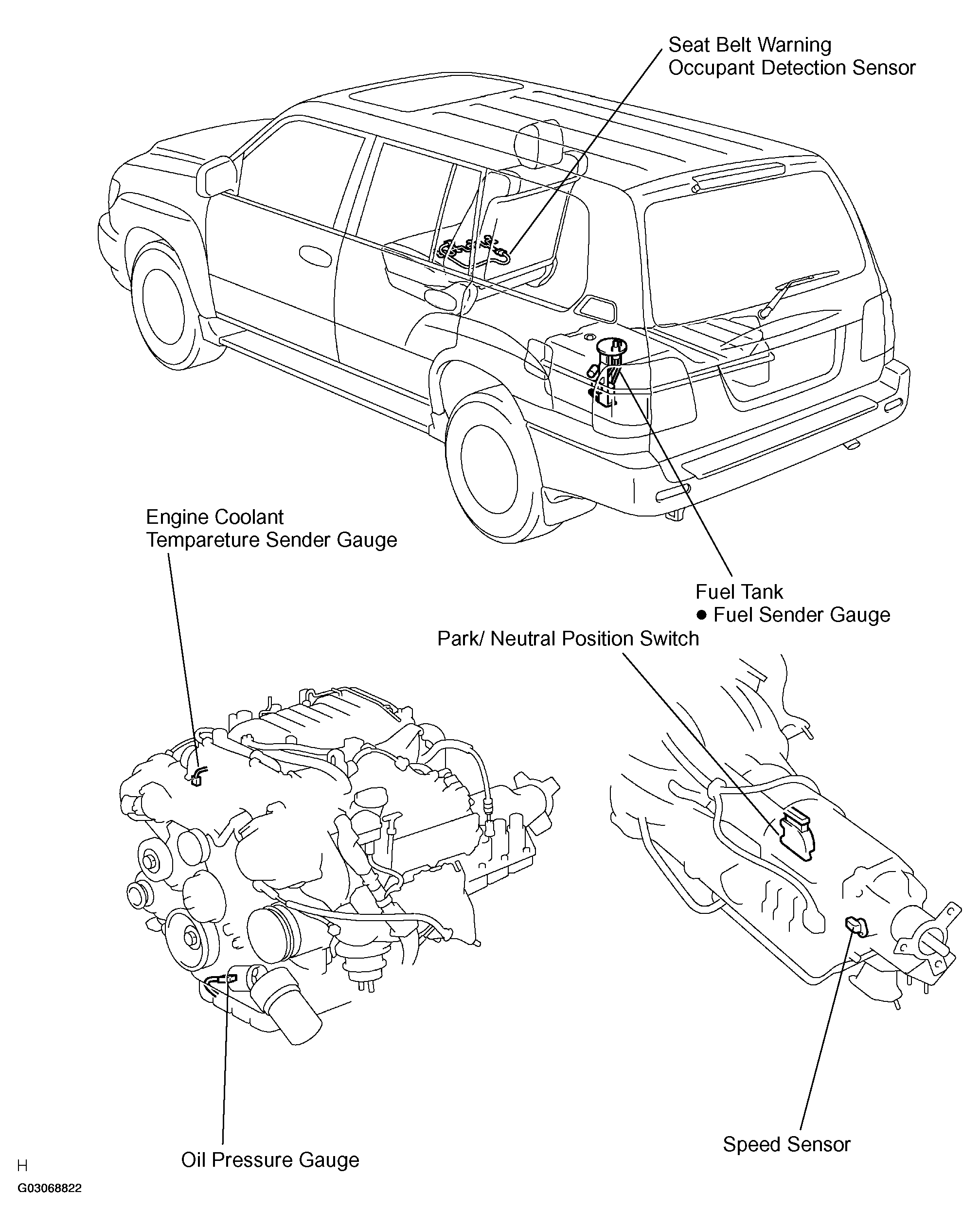

Fig 2: Locating Combination Meter Components (2 Of 2)
G03068822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
