Combination Meter: Circuit

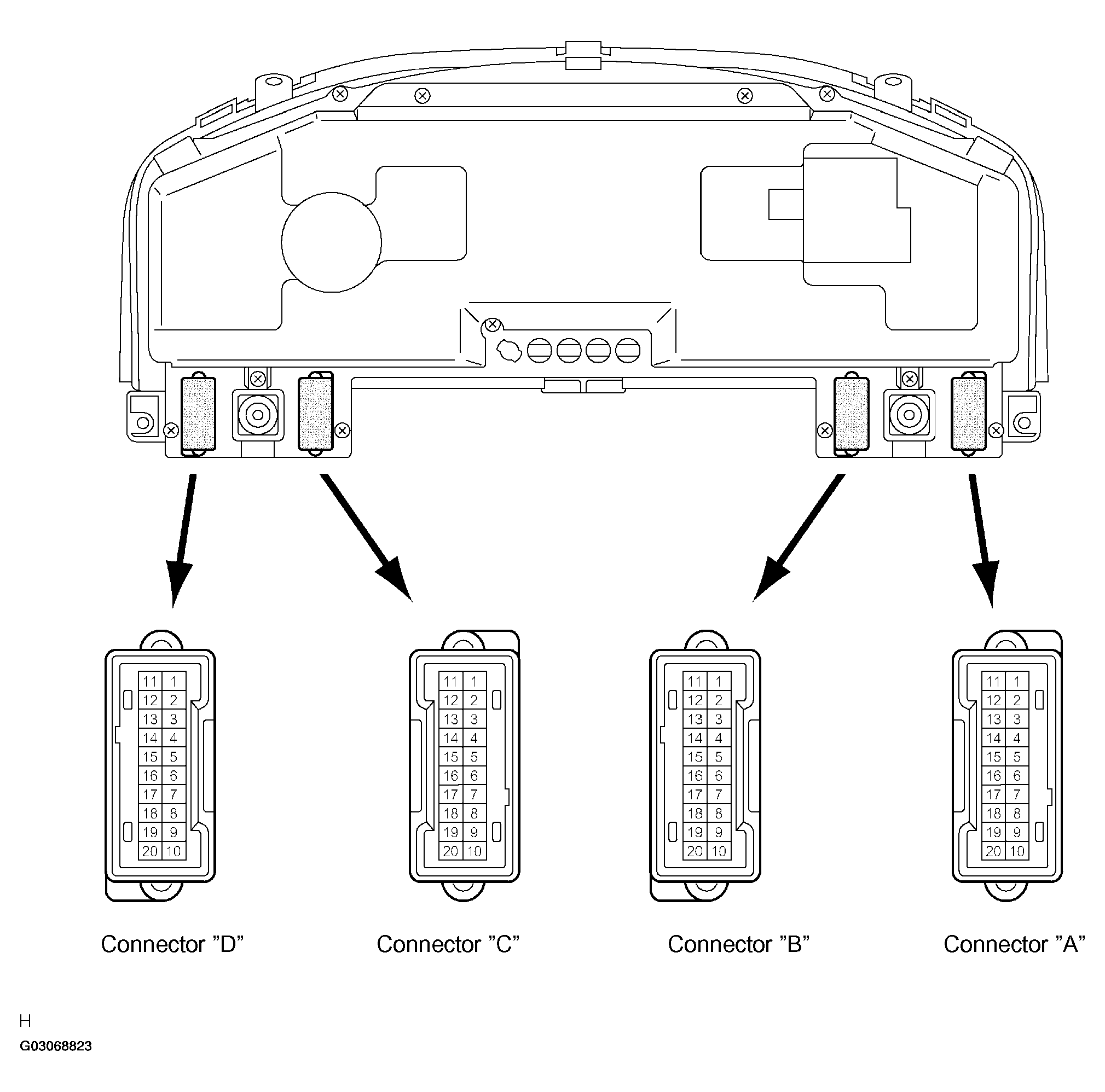

Fig 1: Identifying Combination Meter Connector Terminals
G03068823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

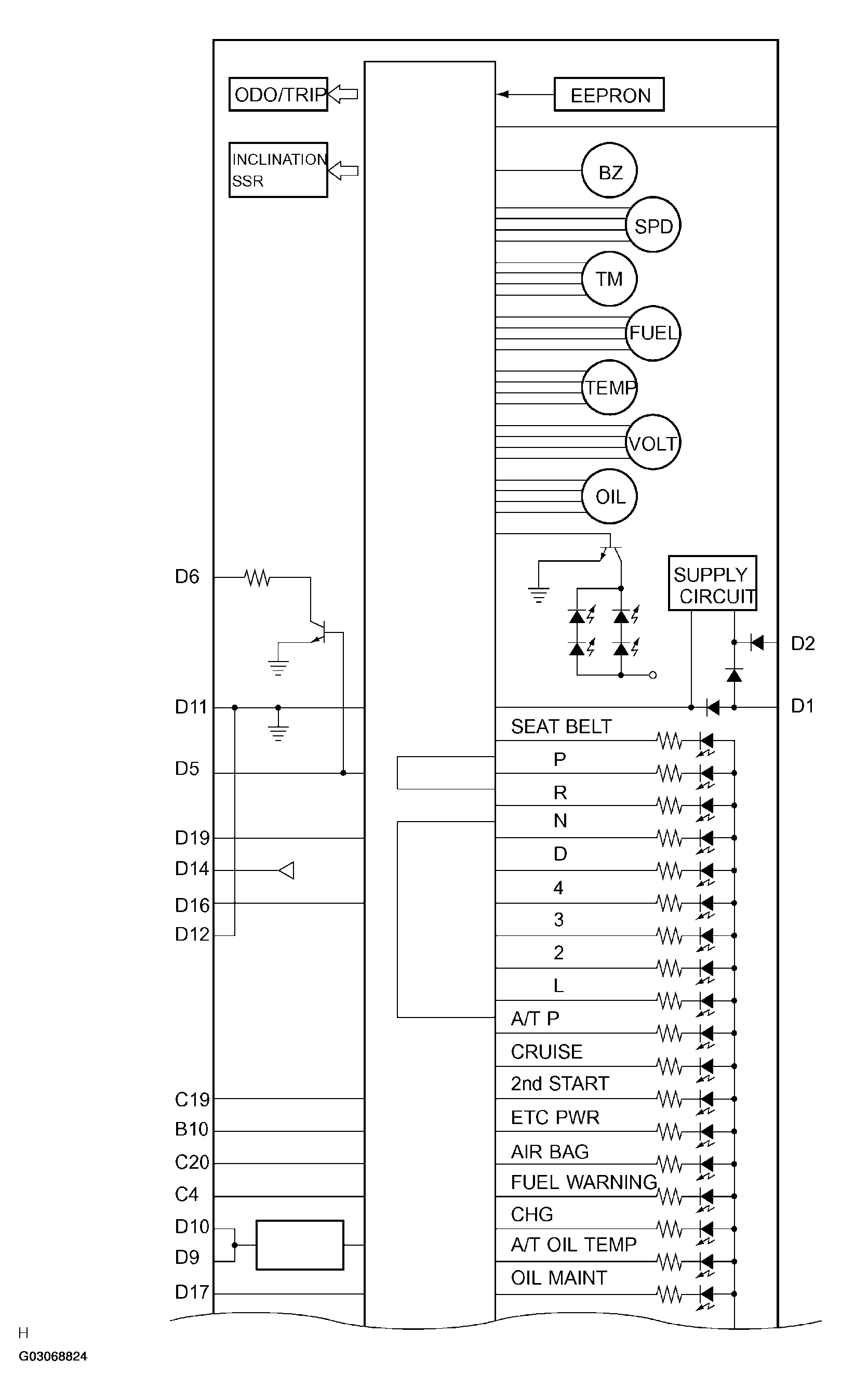

Fig 2: Combination Meter Circuit Diagram (1 Of 2)
G03068824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

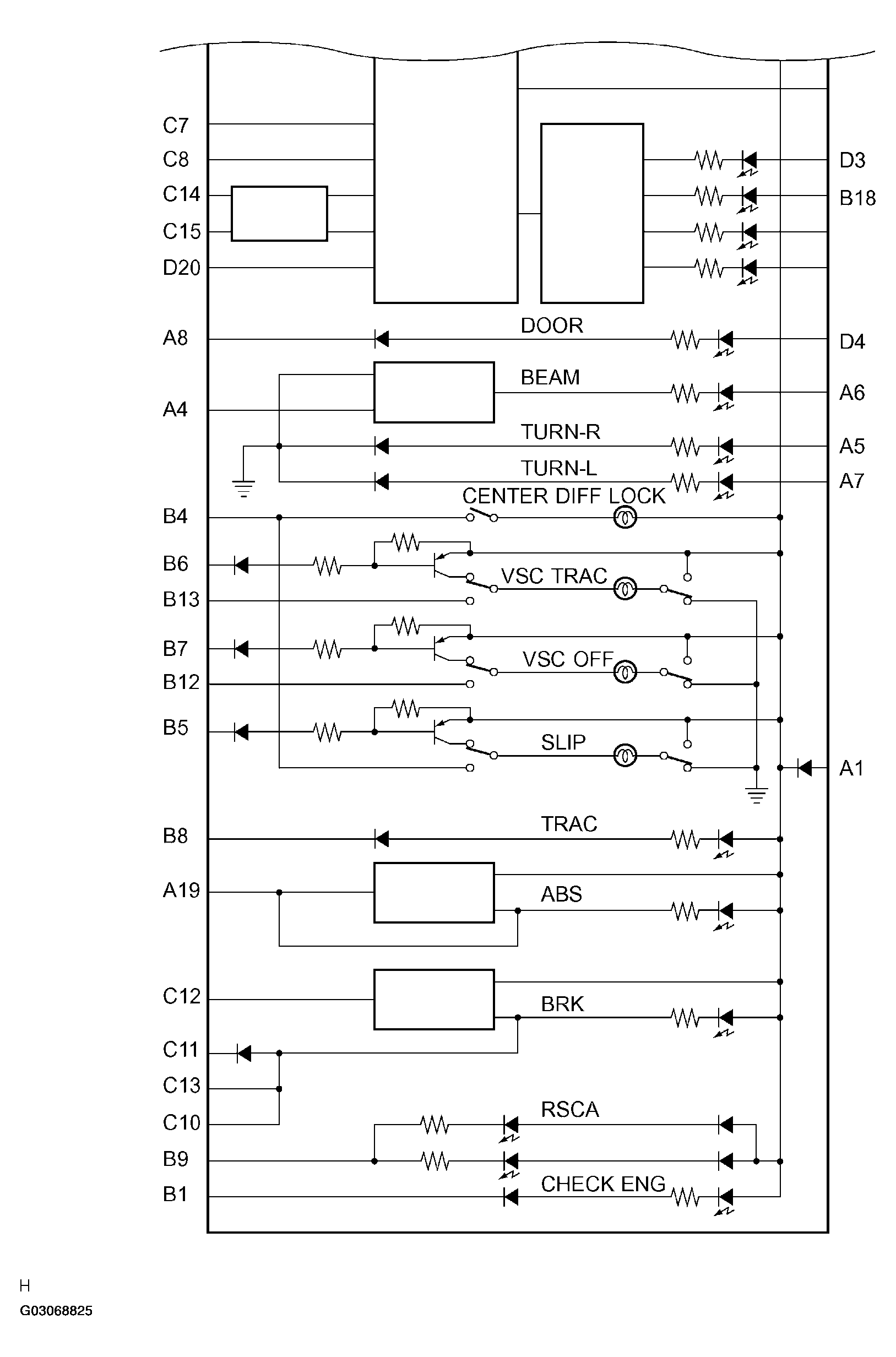

Fig 3: Combination Meter Circuit Diagram (2 Of 2)
G03068825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

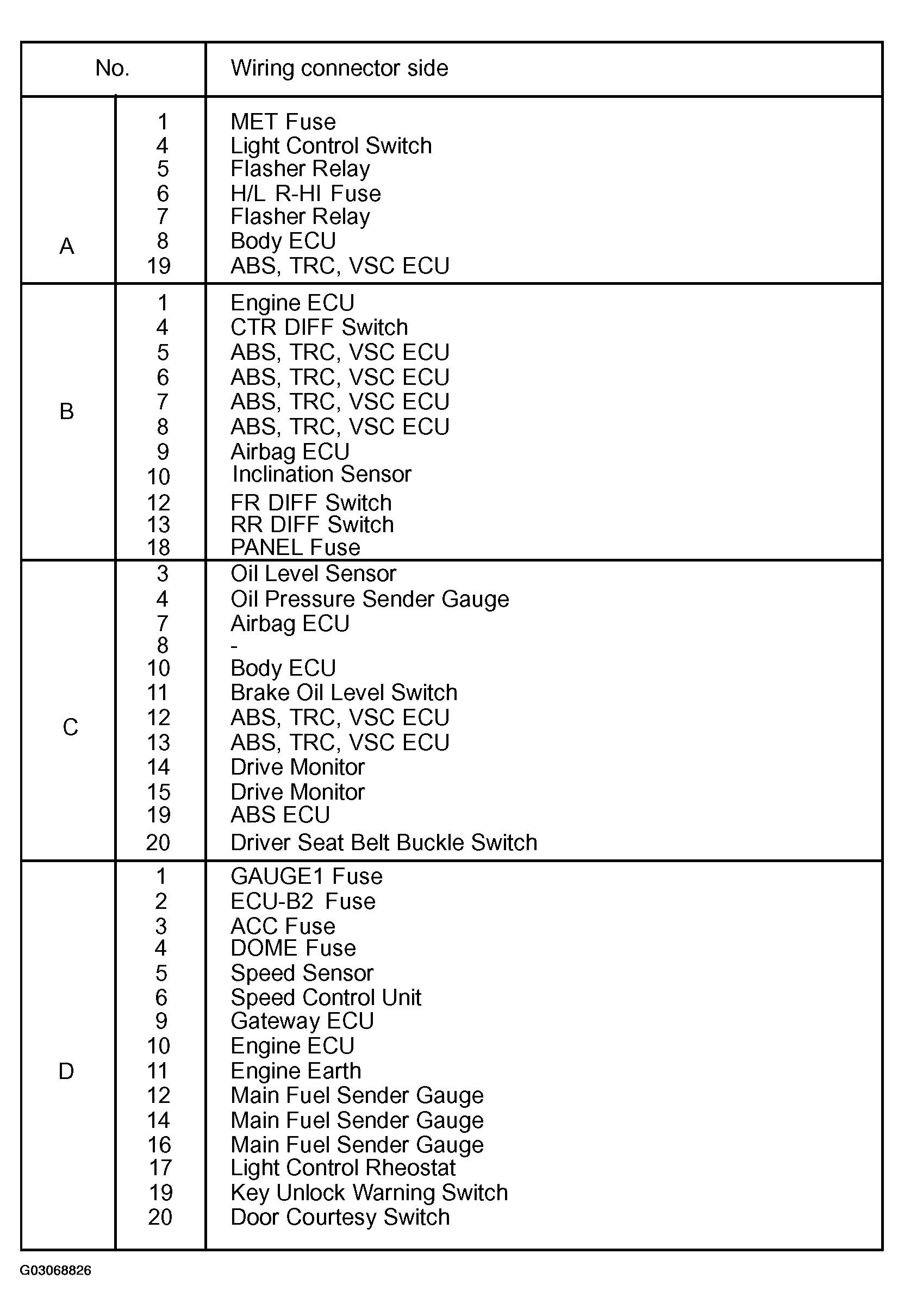

Fig 4: Combination Meter Connector Terminal Circuit Identification
G03068826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
