Quarter Window Glass: Removal

REMOVE ROOF HEADLINING REAR TRIM
Using a screwdriver, remove the roof headlining rear trim.

HINT:

Tape up the screwdriver tip before use.
REMOVE REAR NO. 2 SEATS

Fig 1: Removing Roof Headlining Rear Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR MAT SET PLATE
1. Remove the 5 screws.
2. Using a screwdriver, remove the rear mat set plate.
HINT:

Tape up the screwdriver tip before use.

Fig 2: Removing Rear Mat Set Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STRIKER PLATE
1. Remove the 6 screws.
2. Using a screwdriver, remove the striker plates.
HINT:

Tape up the screwdriver tip before use.
REMOVE REAR MAT
REMOVE REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR
Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
REMOVE REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR
Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
REMOVE REAR DOOR SCUFF PLATE
REMOVE REAR DOOR OPENING TRIM

Fig 3: Removing Striker Plates
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER TRIM PANEL
1. Remove the quarter trim jack cover.
2. Using a clip remover, remove the 2 clips.
3. Remove the quarter trim panel, then disconnect the connector.
REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR
REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR

Fig 4: Removing Quarter Trim Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

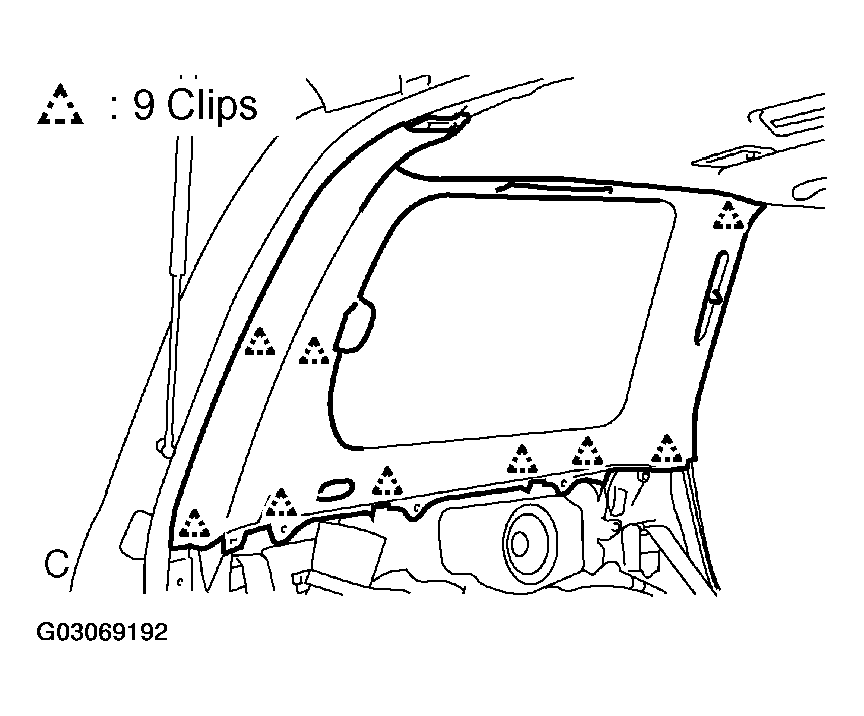

REMOVE UPPER ROOF SIDE INNER GARNISH
1. Using a screwdriver, remove the assist grip plugs, then remove the 2 screws and the rear assist grip.
  HINT:

  Tape up the screwdriver tip before use.
2. Using a clip remover, remove the clip.
3. Using a screwdriver, remove the upper roof side inner garnish.
HINT:

Tape the screwdriver tip before use.

Fig 5: Removing Upper Roof Side Inner Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

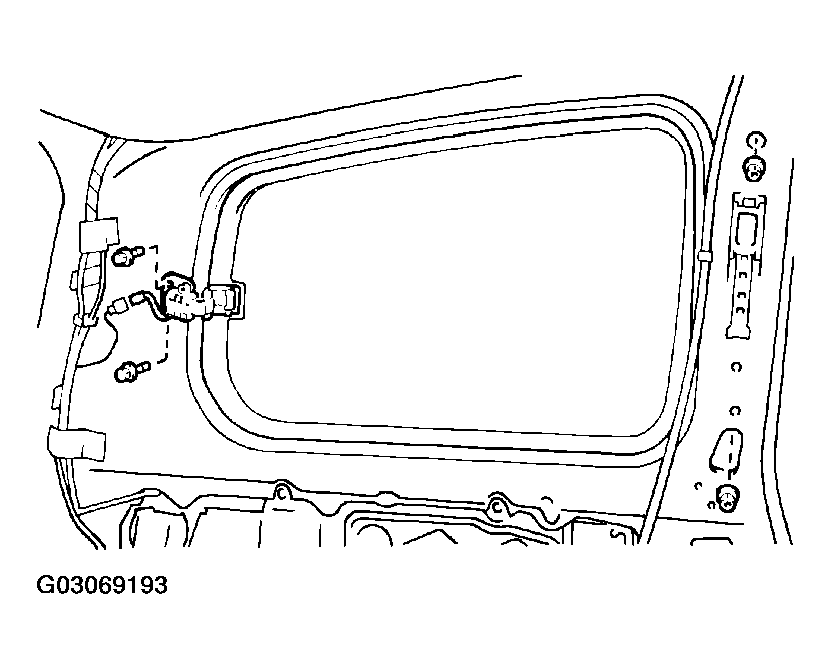

REMOVE QUARTER WINDOW GLASS
1. Disconnect the connector.
2. w/ Antenna:
  Disconnect the connector.
3. Remove the 2 bolts, the 2 nuts and the quarter window glass.
REMOVE QUARTER WINDOW GLASS WEATHERSTRIP

Fig 6: Disconnecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER BELT MOLDING
1. Remove the screw.
2. Using a screwdriver, remove the quarter belt molding.
HINT:

Tape up the screwdriver tip before use.

Fig 7: Removing Quarter Belt Molding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR VENT WINDOW MOTOR
Remove the screw and the rear vent window motor.
REMOVE QUARTER WINDOW LOCK
Remove the screw and the quarter window lock.

Fig 8: Removing Screw & Quarter Window Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
