Trailer Towing: Location

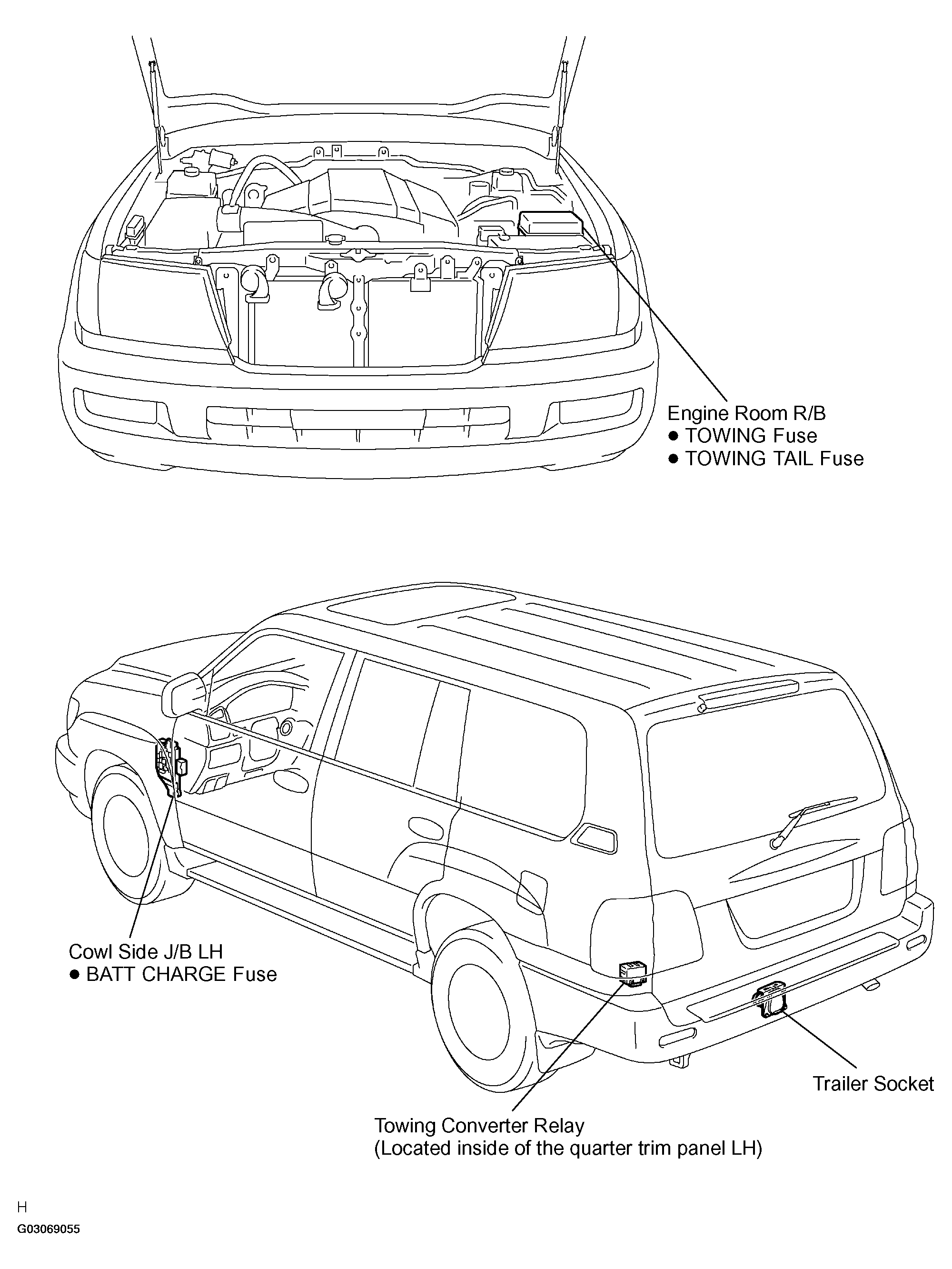

Fig 1: Identifying Components Location

G03069055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
