Front Seat: Components

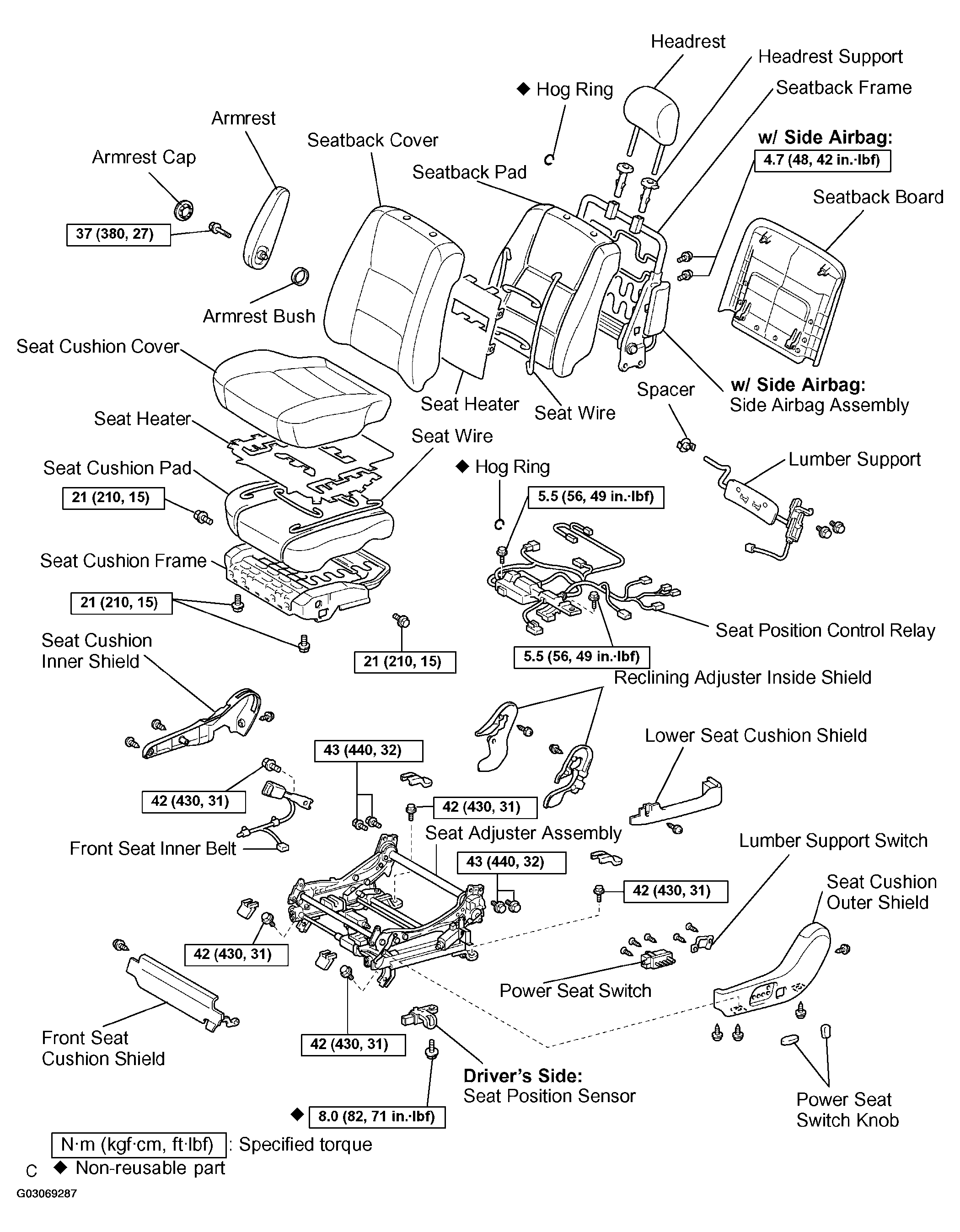

Fig 1: Identifying Front Seat Components

G03069287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
