Problem Symptoms Table

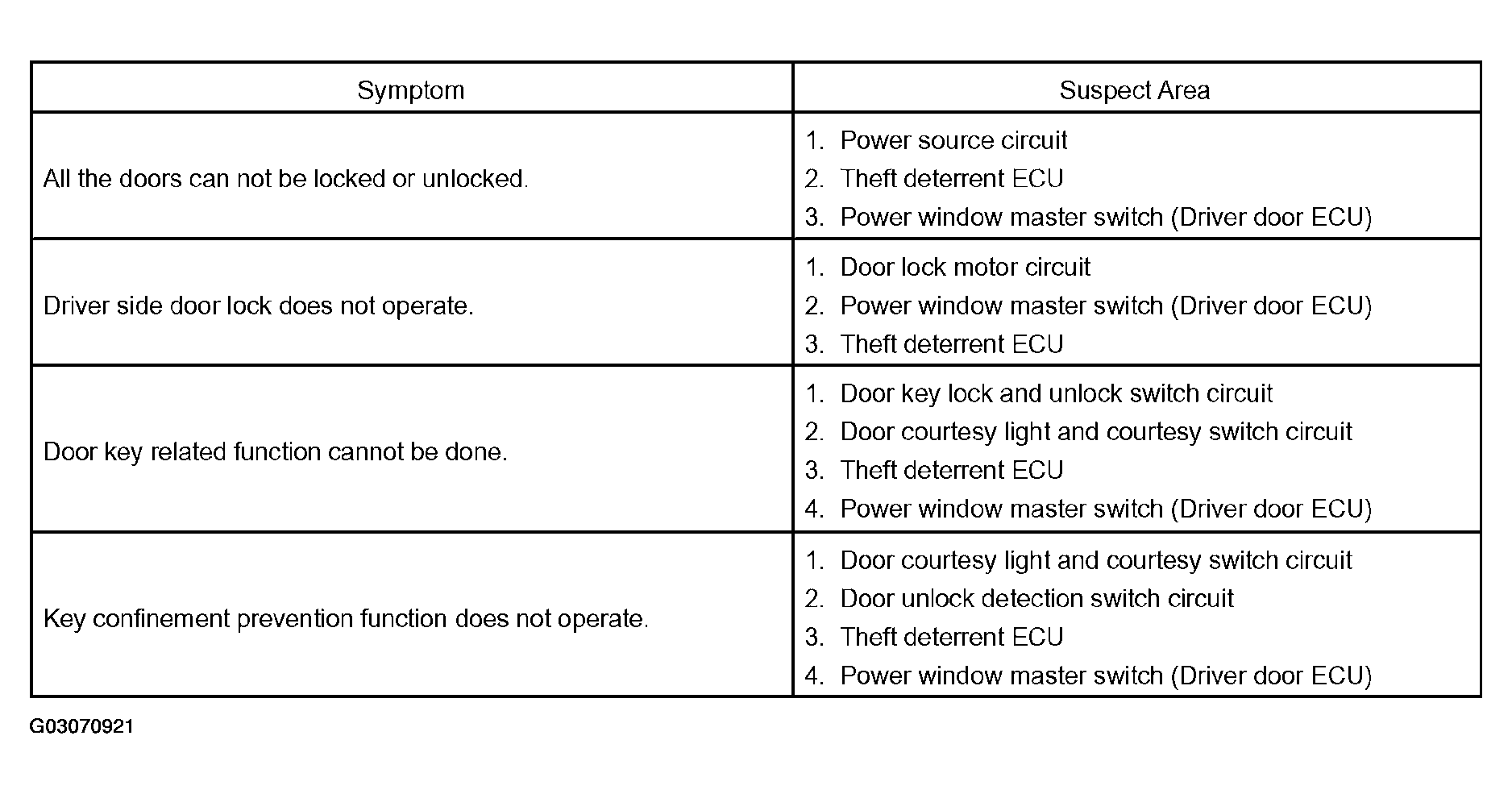

POWER DOOR LOCK CONTROL SYSTEM:

Fig 1: Diagnostic Reference Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

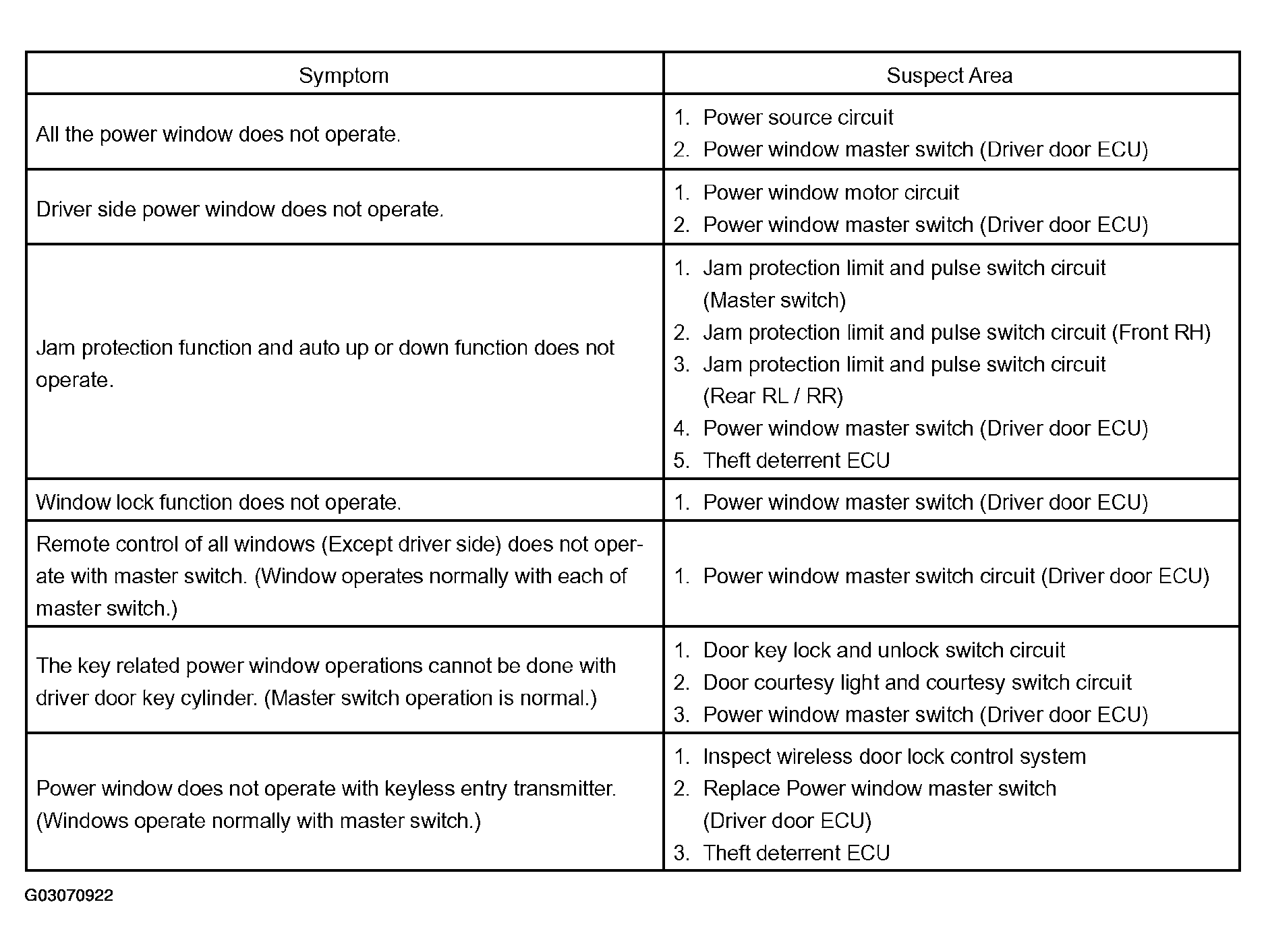

POWER WINDOW CONTROL SYSTEM:

Fig 2: Diagnostic Reference Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
