Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio System >> Location

Audio System: Location

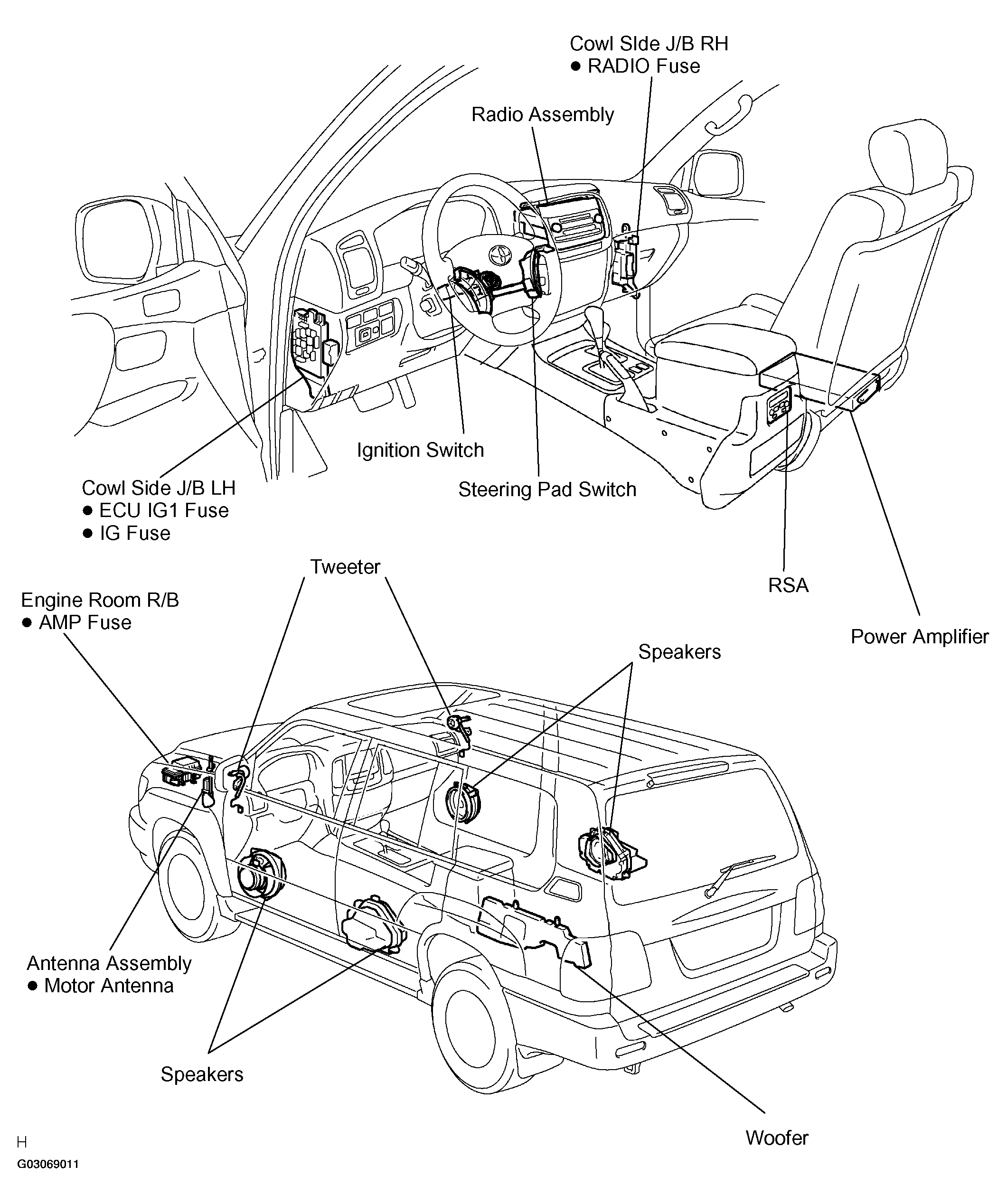

Fig 1: Locating Audio System Components

G03069011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
