Side Step: Components

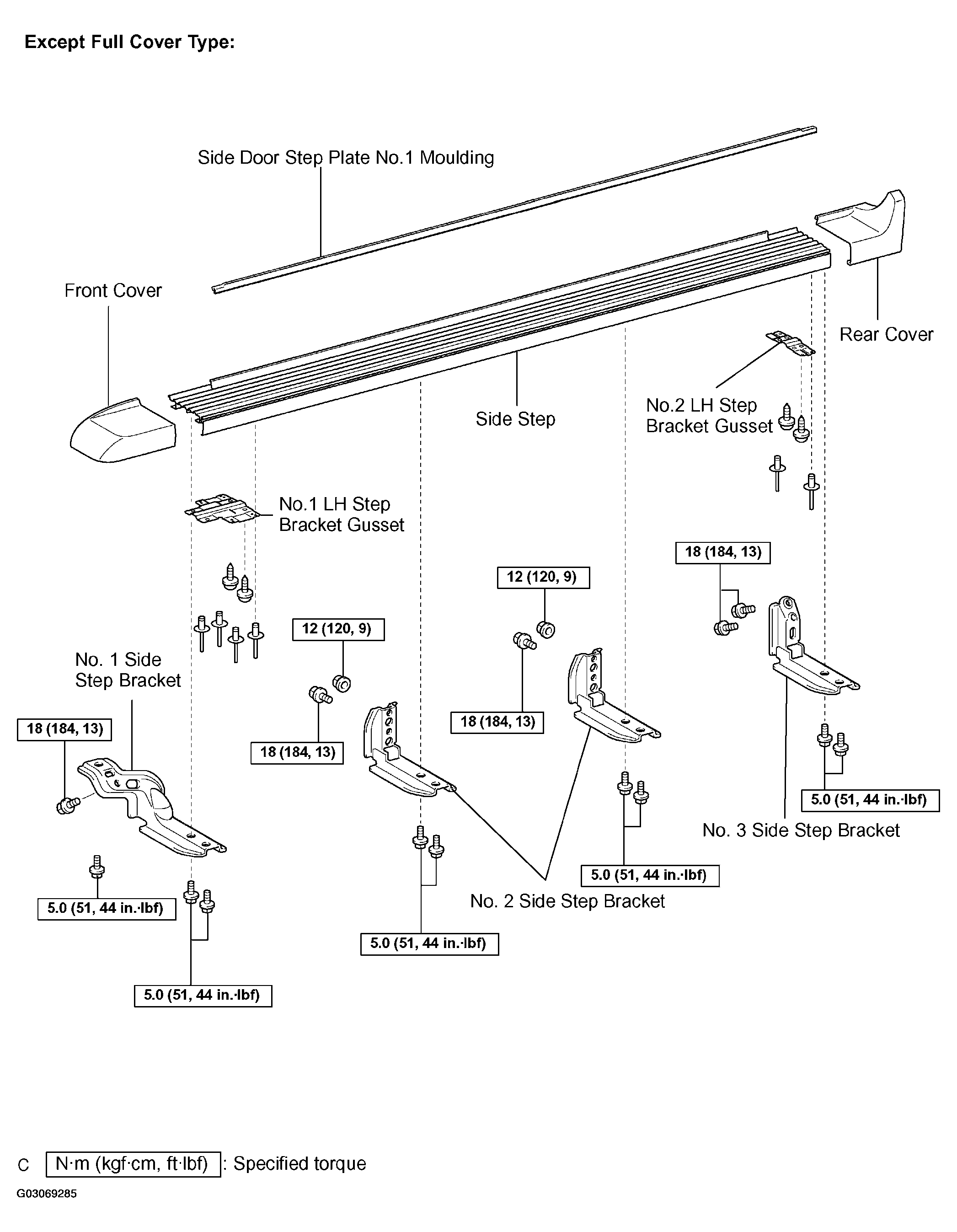

Fig 1: Identifying Side Step Components (1 Of 2)
G03069285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

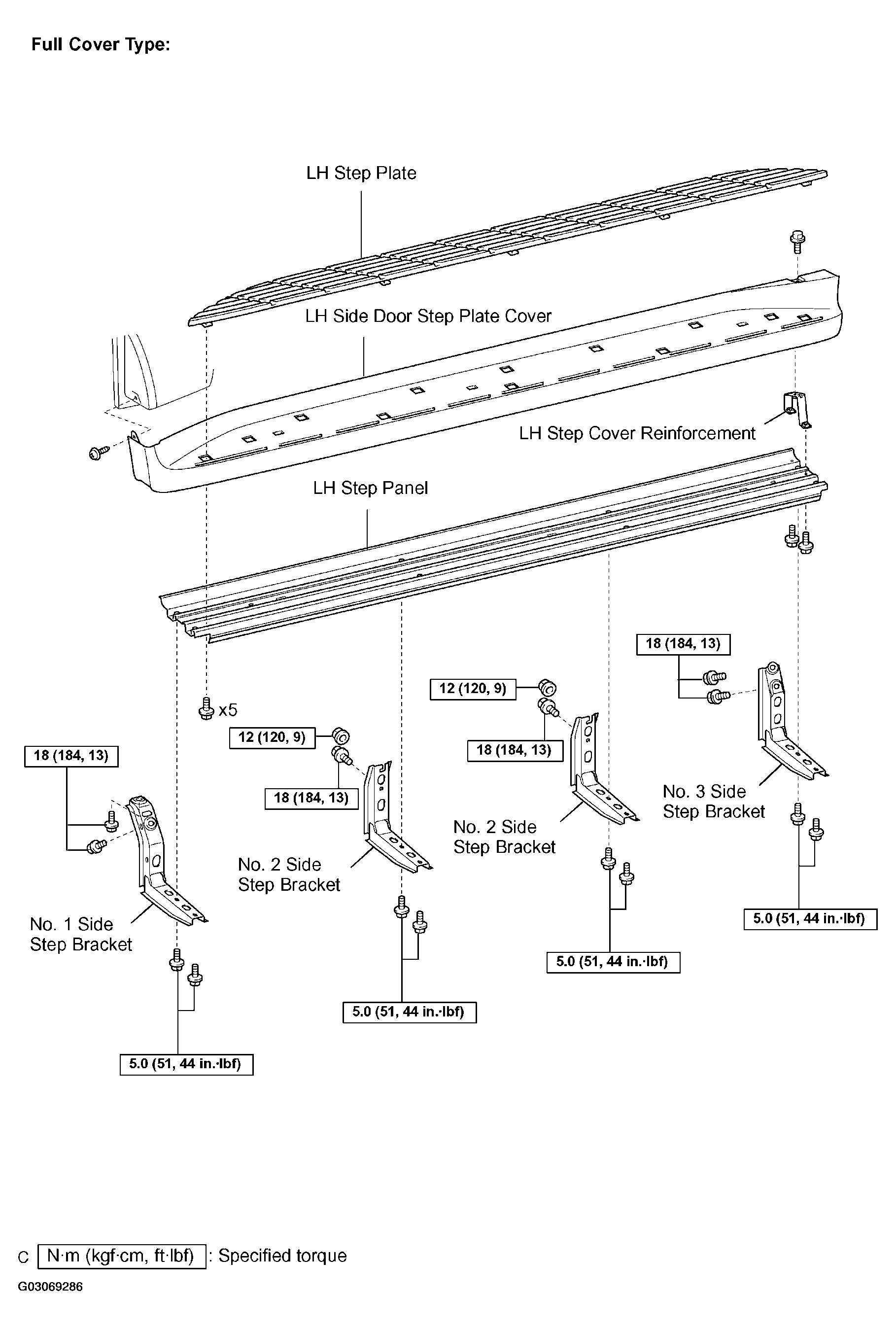

Fig 2: Identifying Side Step Components (2 Of 2)
G03069286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
