Front Suspension: Components

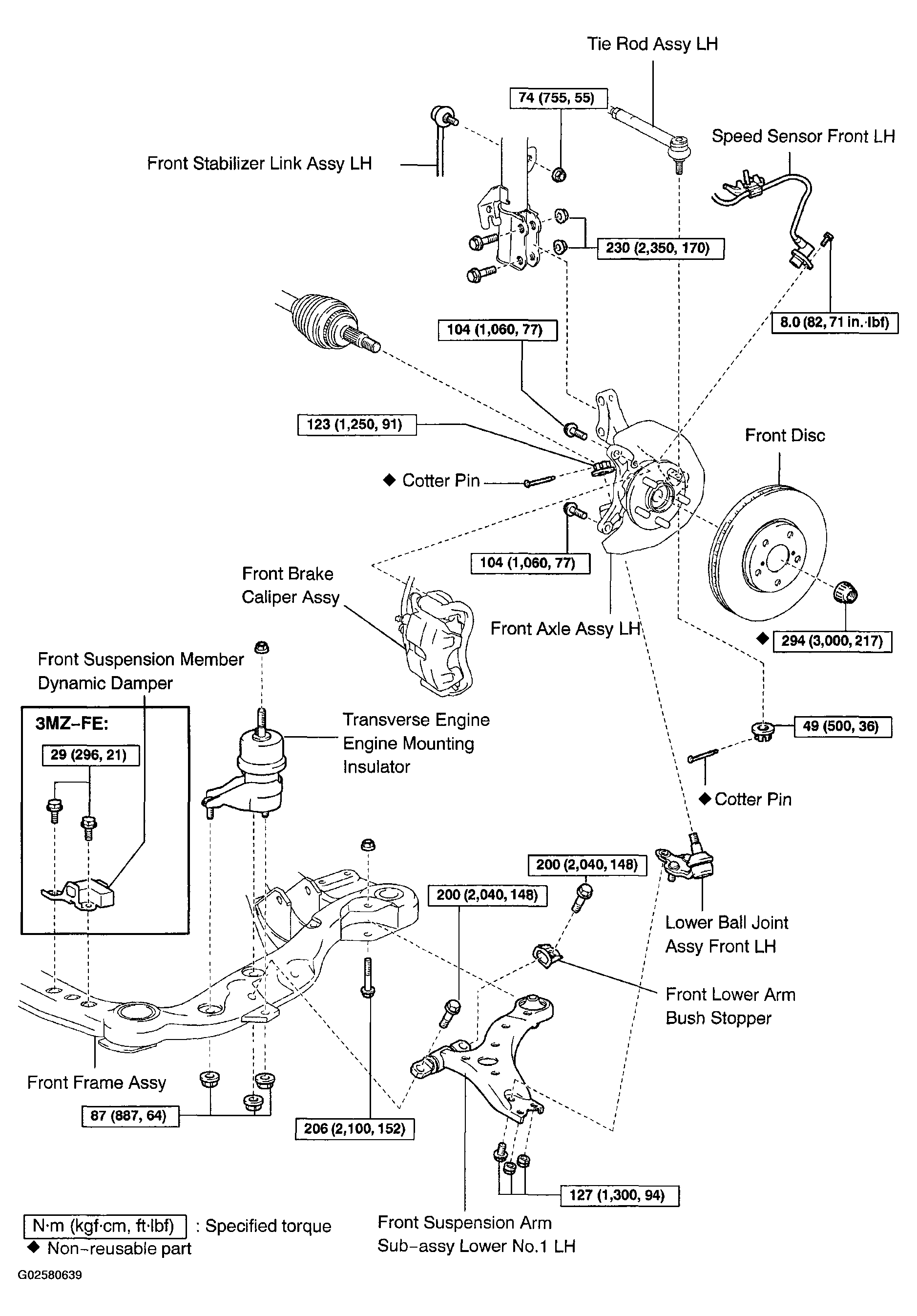

Fig 1: Front Suspension Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

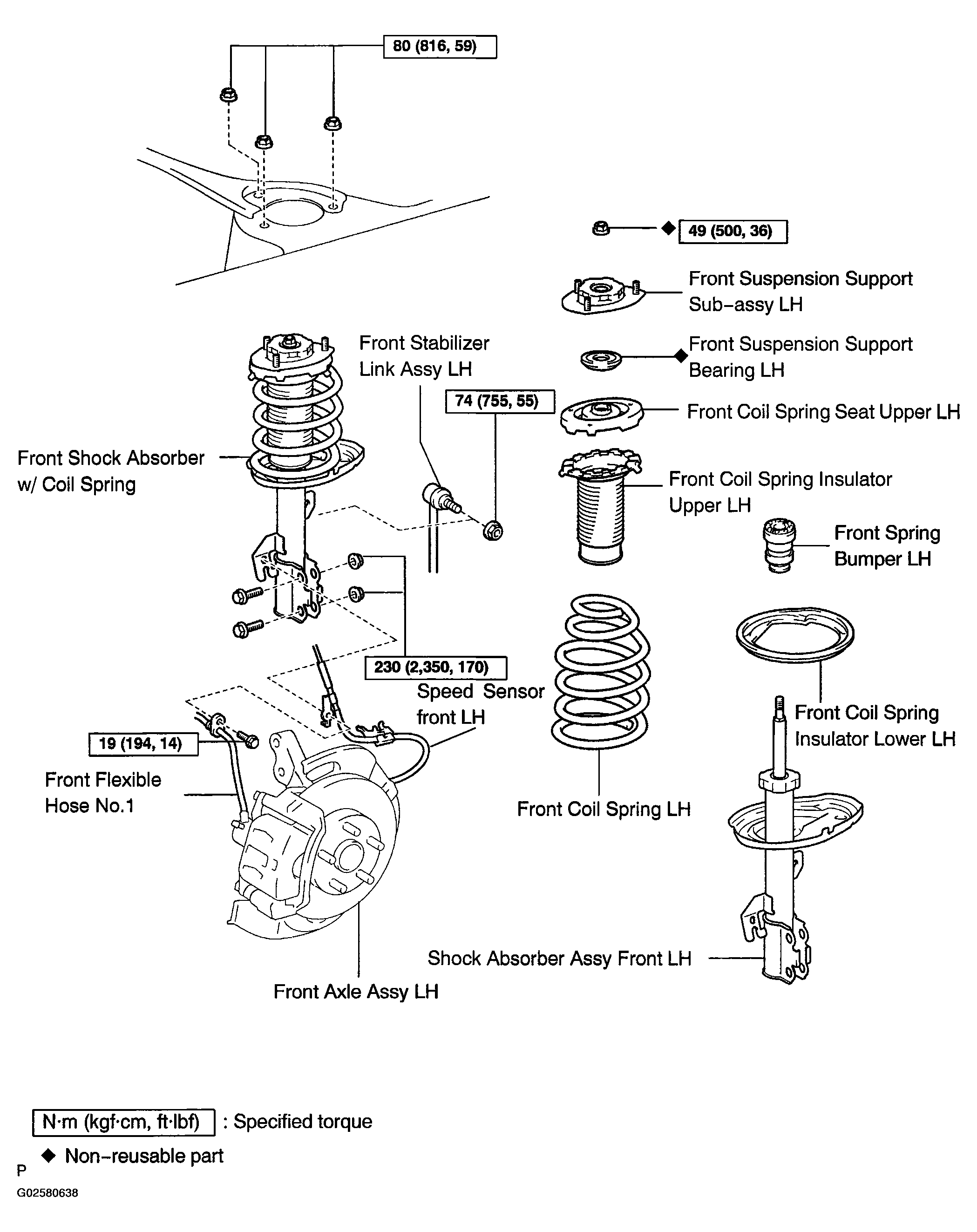

Fig 2: Front Suspension Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

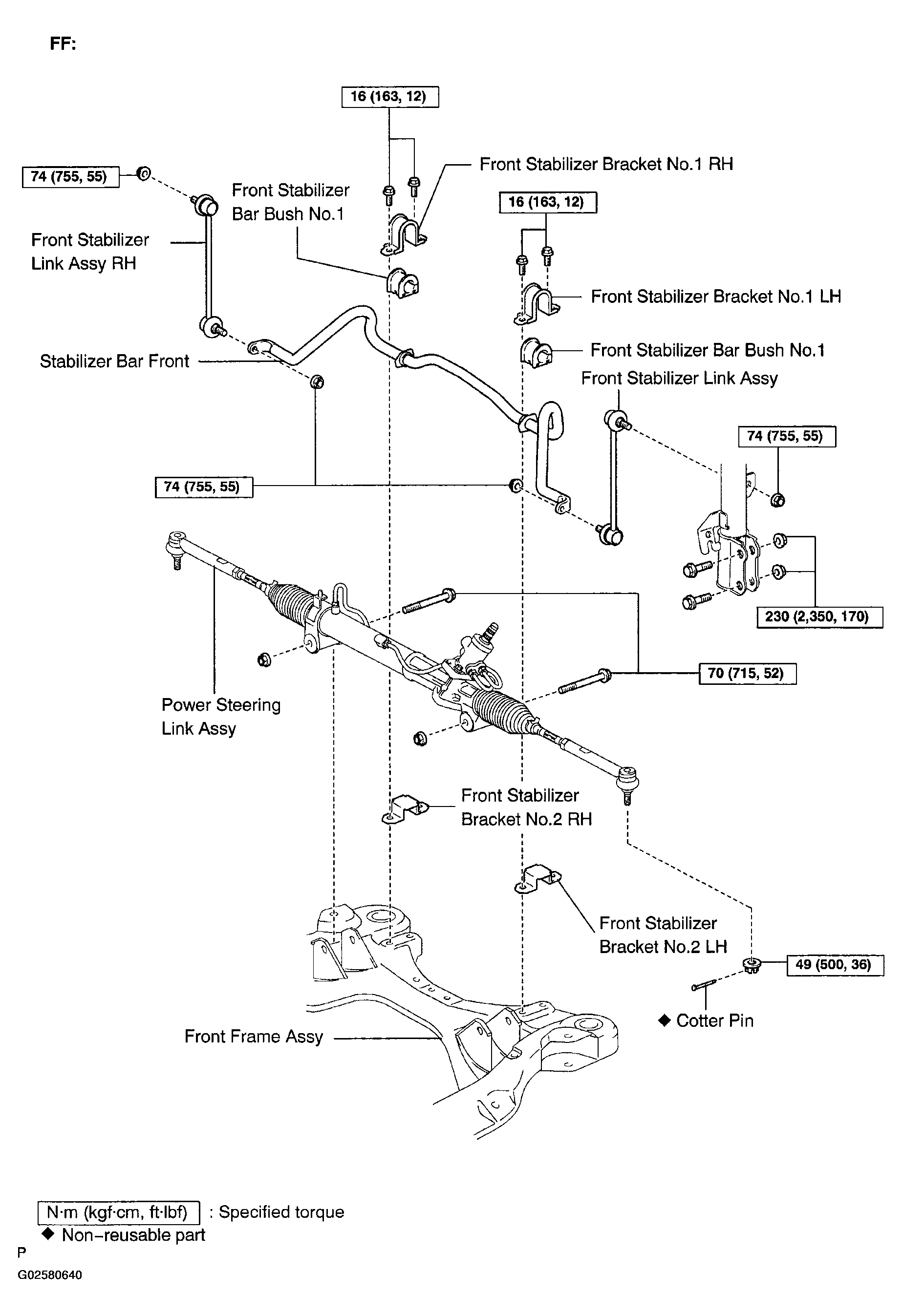

Fig 3: Front Suspension Replacement Components With Torque Specifications (FF)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

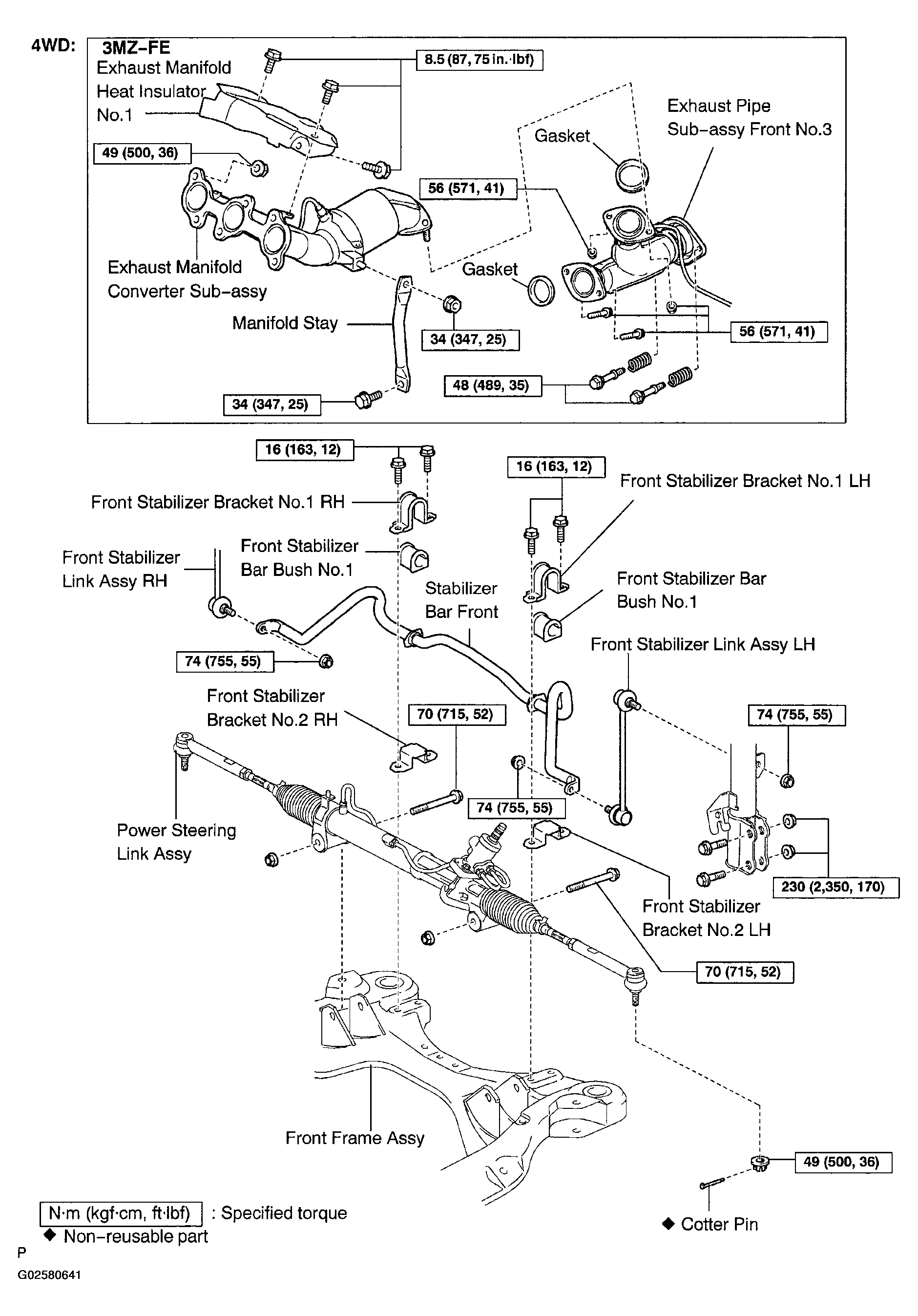

Fig 4: Front Suspension Replacement Components With Torque Specifications (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
