Fuel Injector ASSY (3MZ-FE): Components

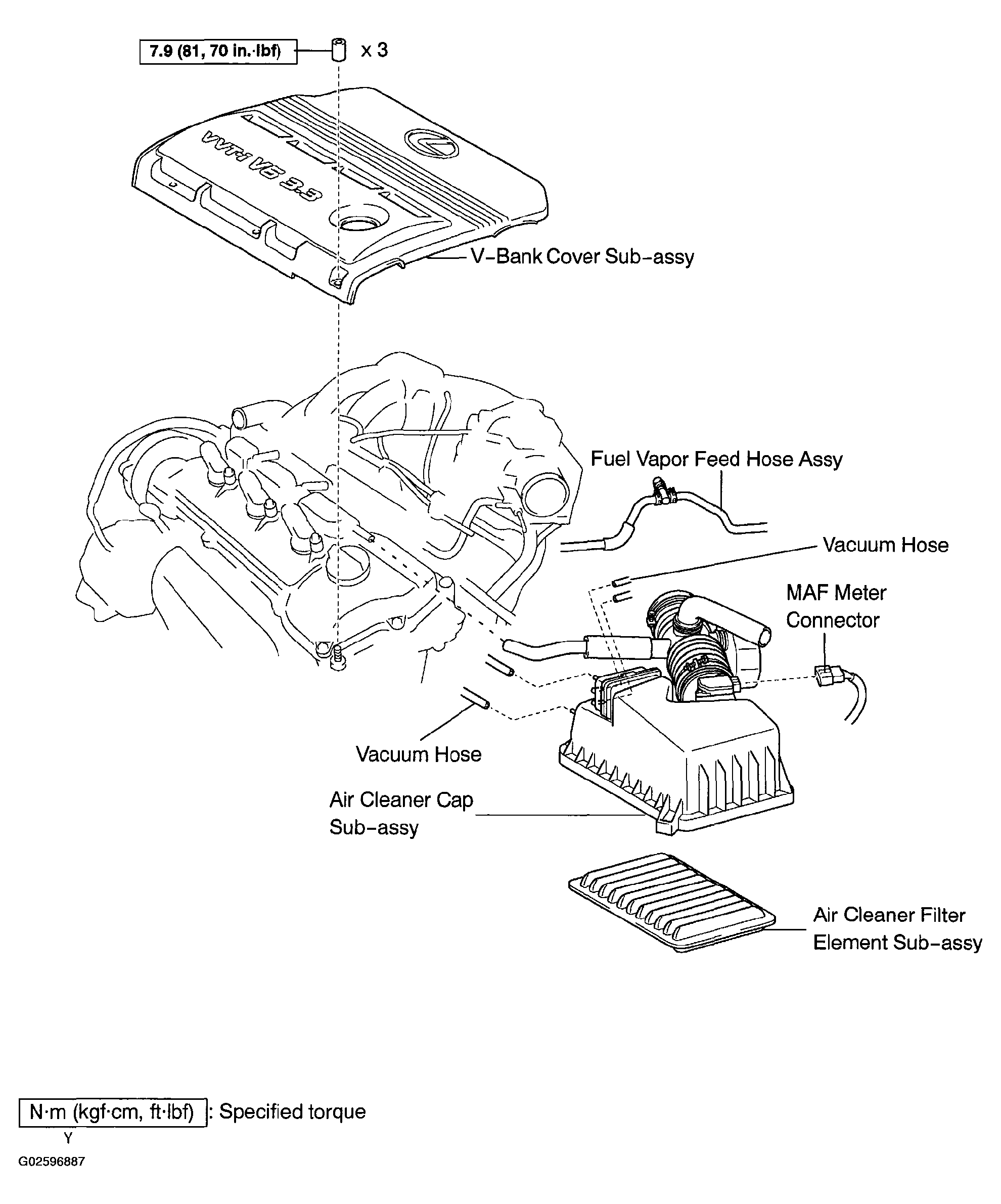

Fig 1: Fuel Injector Assy Replacement Components (3MZ-FE) And Torque Specifications (1 Of 3)
G02596887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

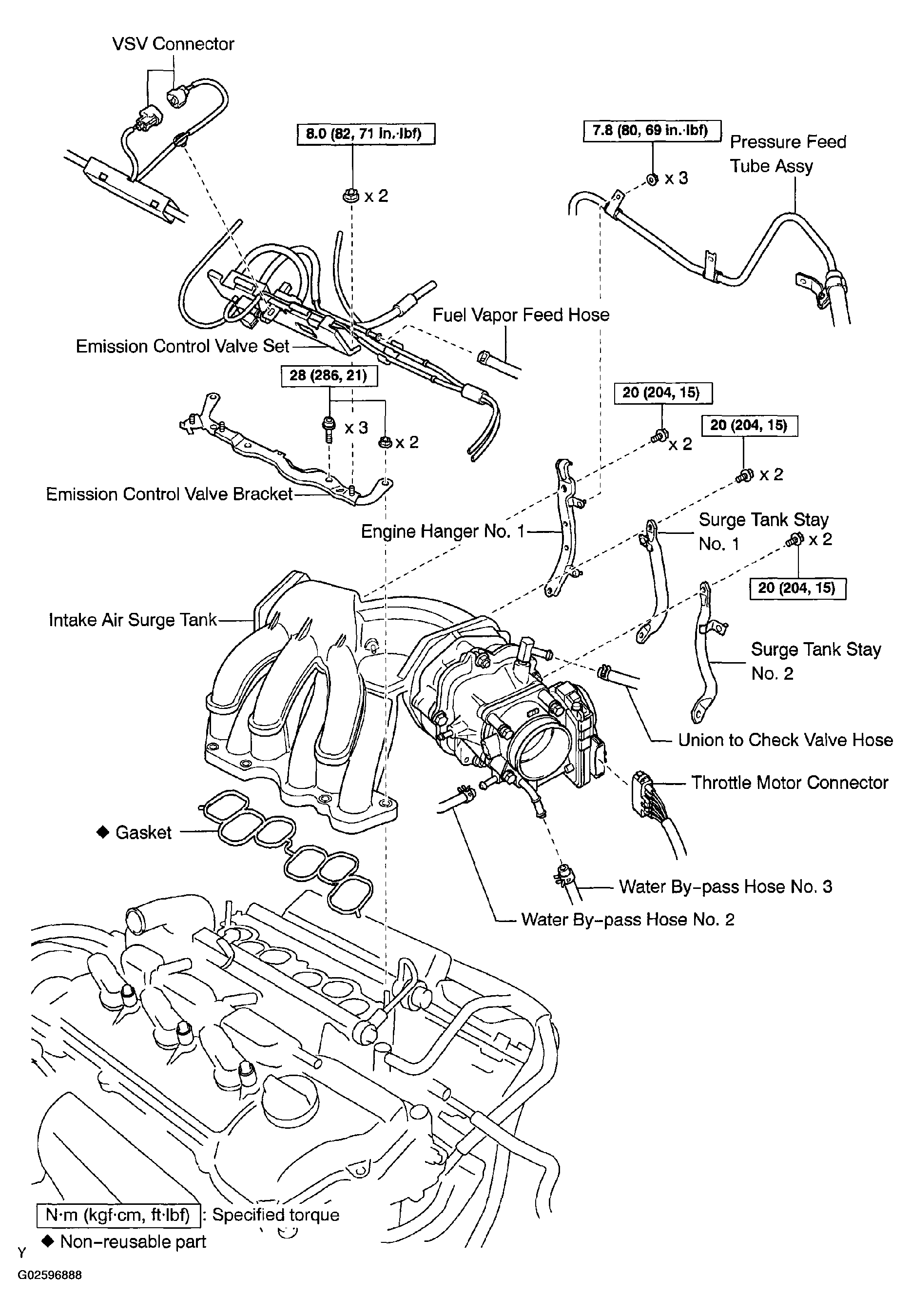

Fig 2: Fuel Injector Assy Replacement Components (3MZ-FE) And Torque Specifications (2 Of 3)
G02596888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

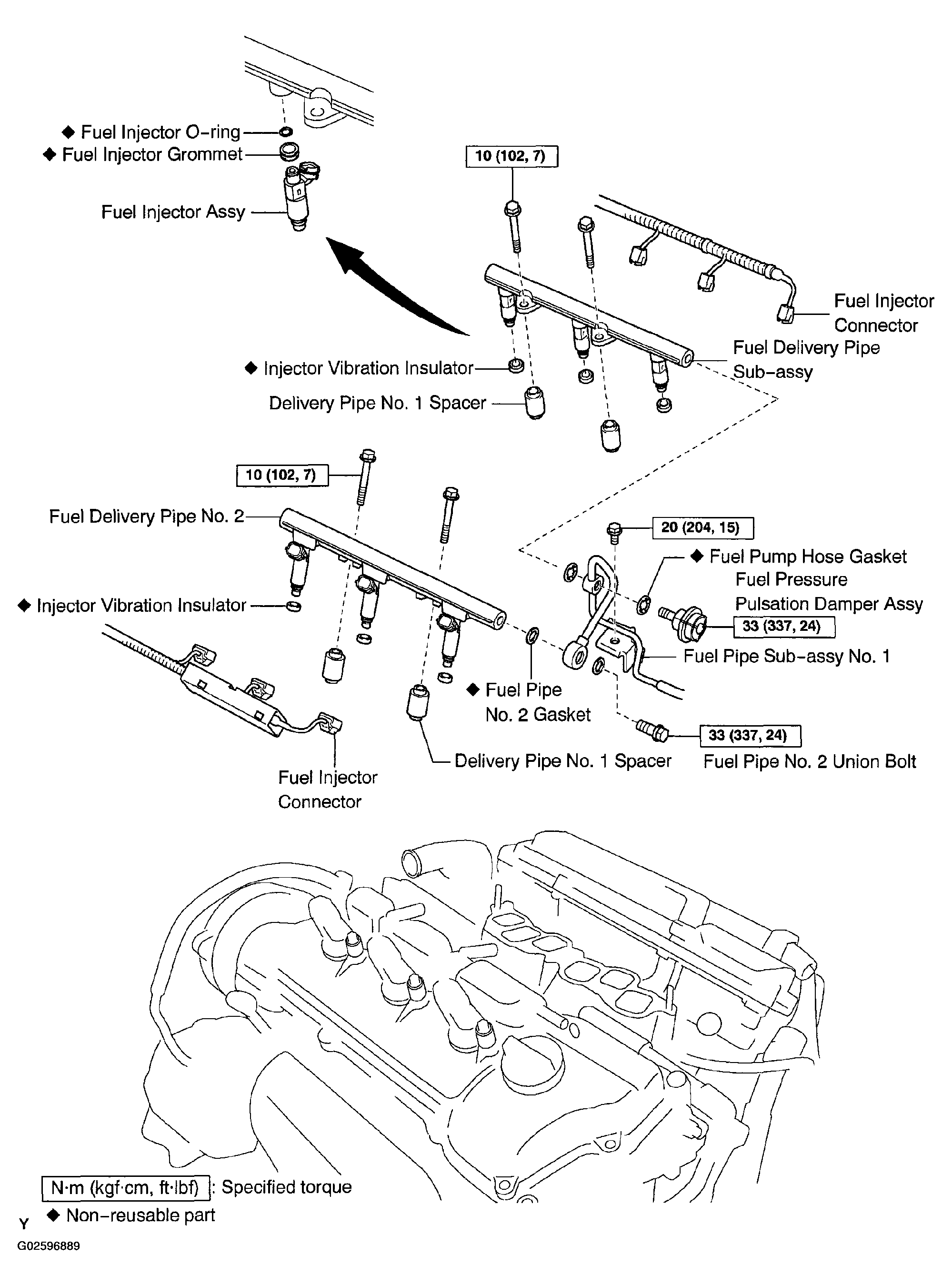

Fig 3: Fuel Injector Assy Replacement Components (3MZ-FE) And Torque Specifications (3 Of 3)
G02596889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
