Horn System: Location

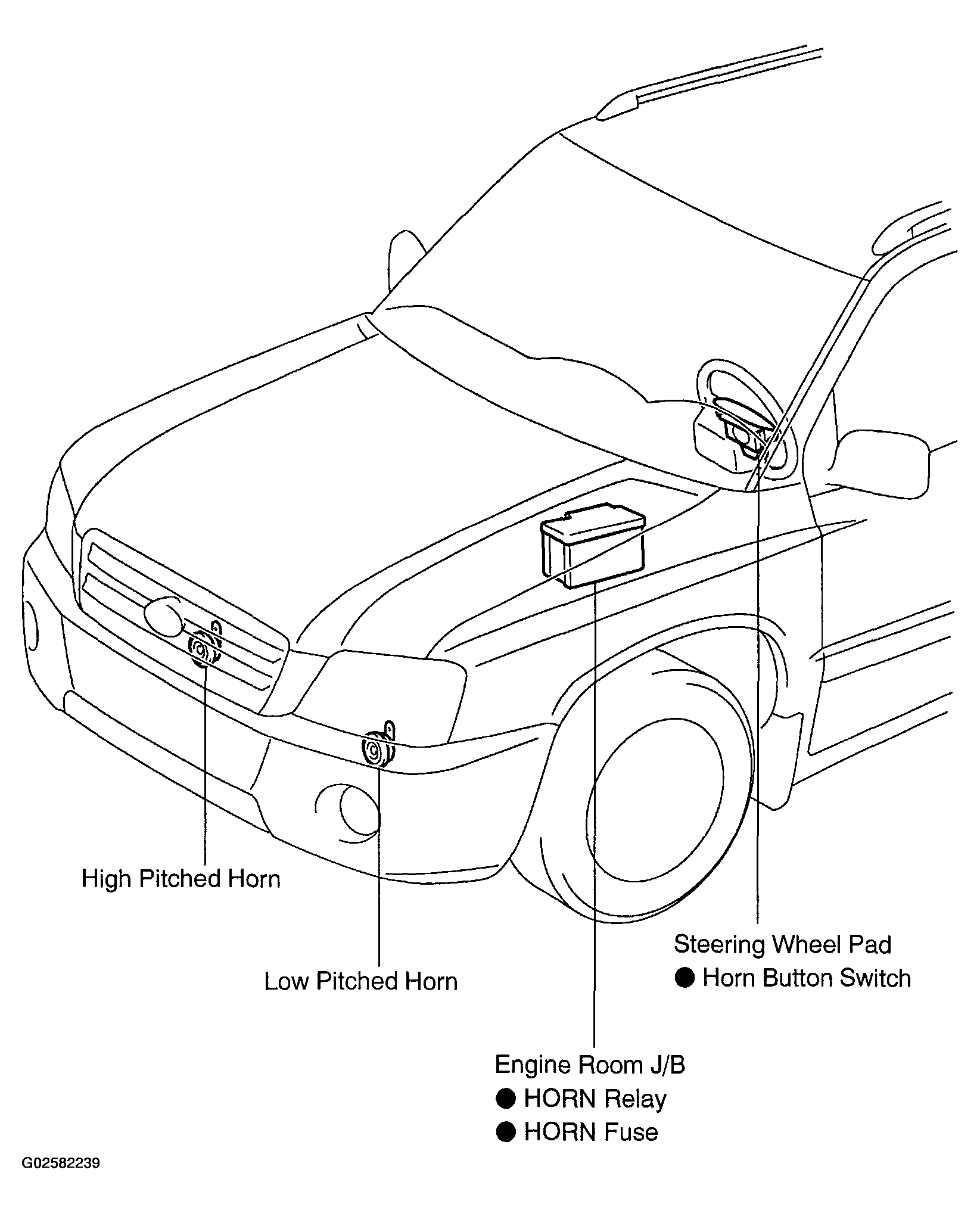

Fig 1: Identifying Location Of Horn System Components

G02582239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
