Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib (Front Passenger Airbag Assembly) | Right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | On steering wheel. See Figure. |

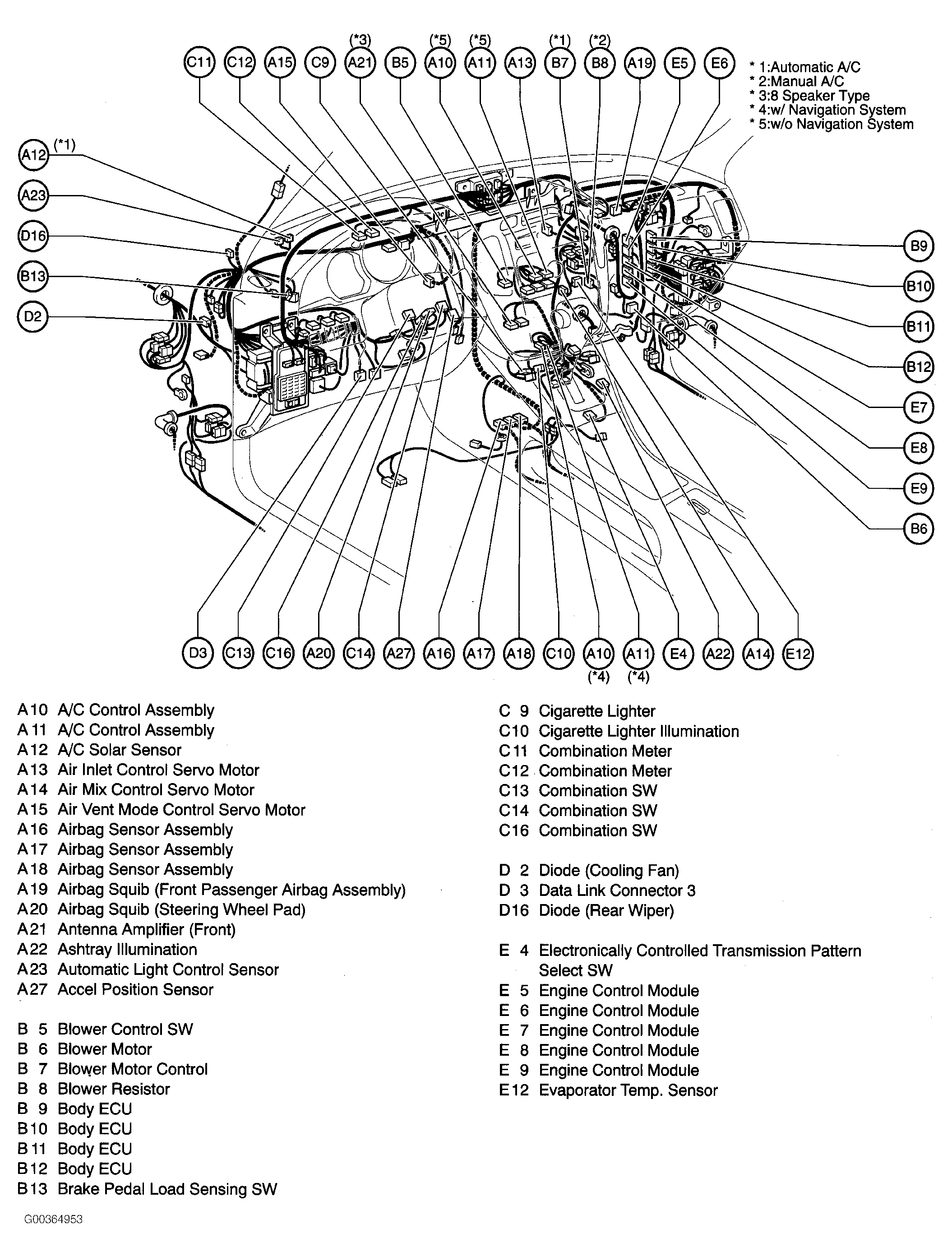

| Antenna Amplifier (Front) | Behind center of dash. See Figure. |
| Antenna Amplifier (Rear) | In left rear of vehicle. See Figure. |
| Blower Resistor | Behind right side of dash. See Figure. |
| Curtain Shield Airbag Squib (Left) | Left side of roof. See Figure. |
| Curtain Shield Airbag Squib (Right) | Right side of roof. See Figure. |
| Data Link Connector (DLC) No. 3 | Under left side of dash. See Figure. |
| Diode (Cooling Fan) | Behind left side of dash. See Figure. |

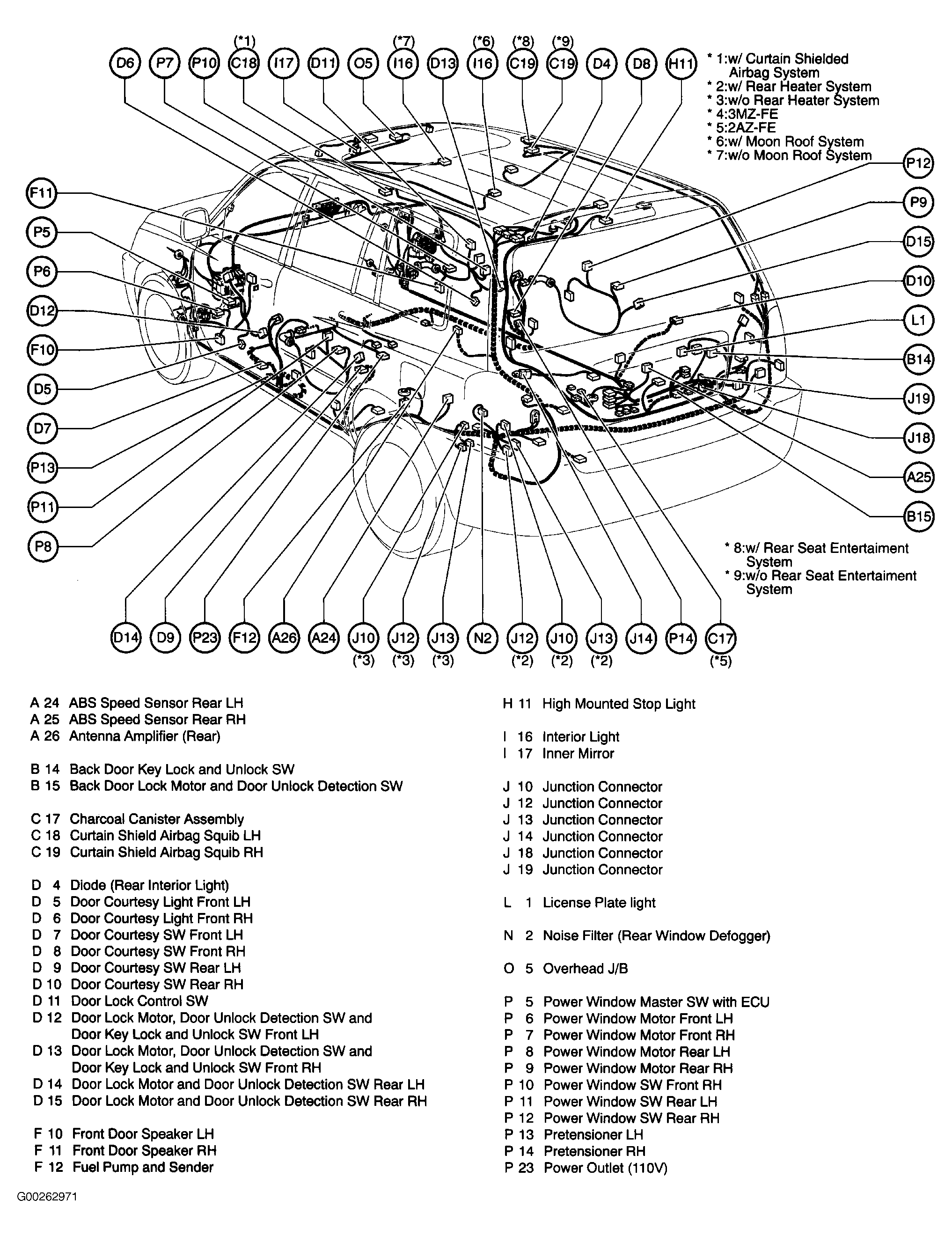

| Diode (Rear Interior Light) | In roof, near rear hatch. See Figure. |

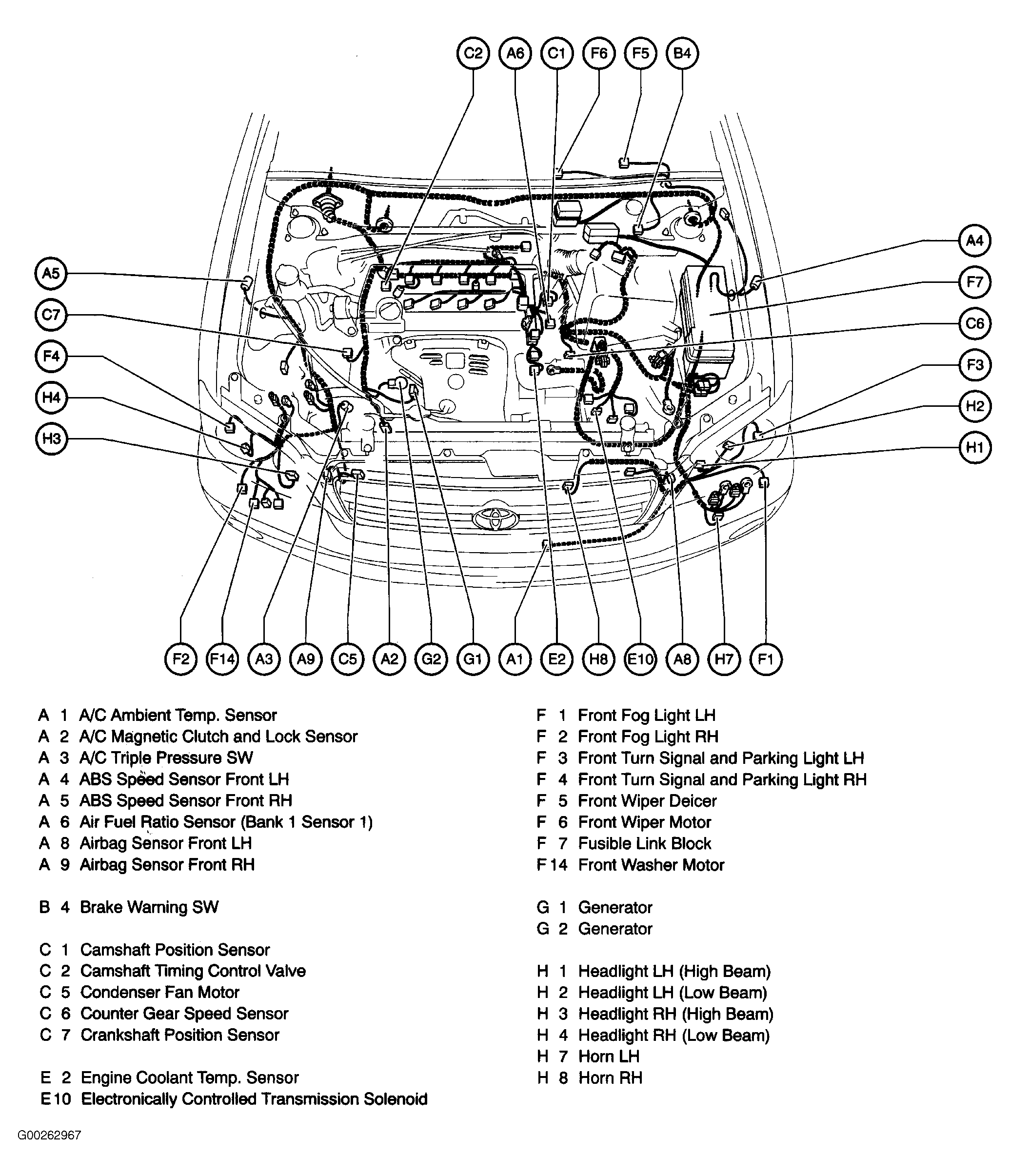

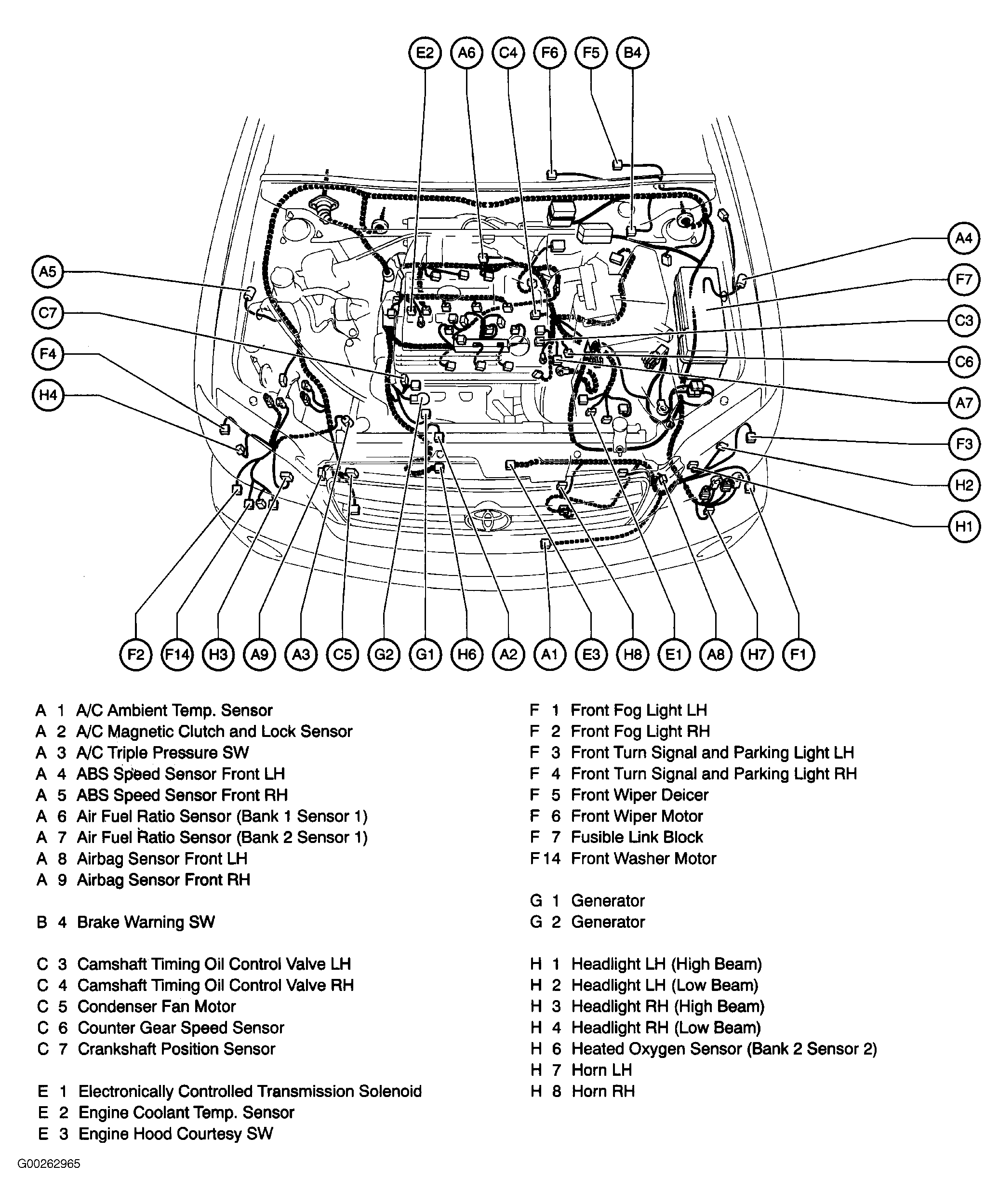

| Front Wiper Deicer (2.4L) | On left rear of engine compartment. See Figure. |
| Front Wiper Deicer (3.3L) | On left rear of engine compartment. See Figure. |
| Horn (Left & Right) (2.4L) | Front of vehicle. See Figure. |
| Horn (Left & Right) (3.3L) | Front of vehicle. See Figure. |

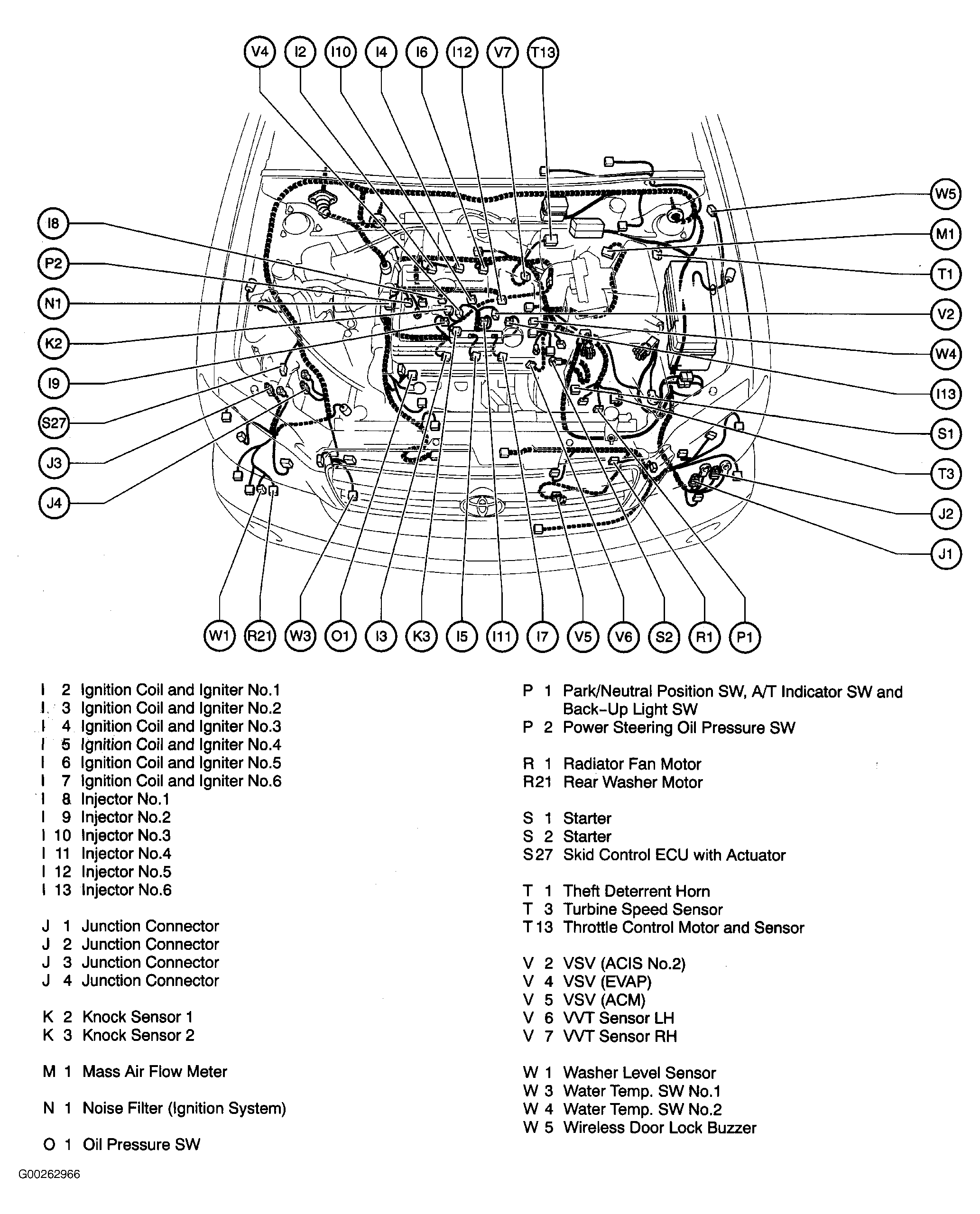

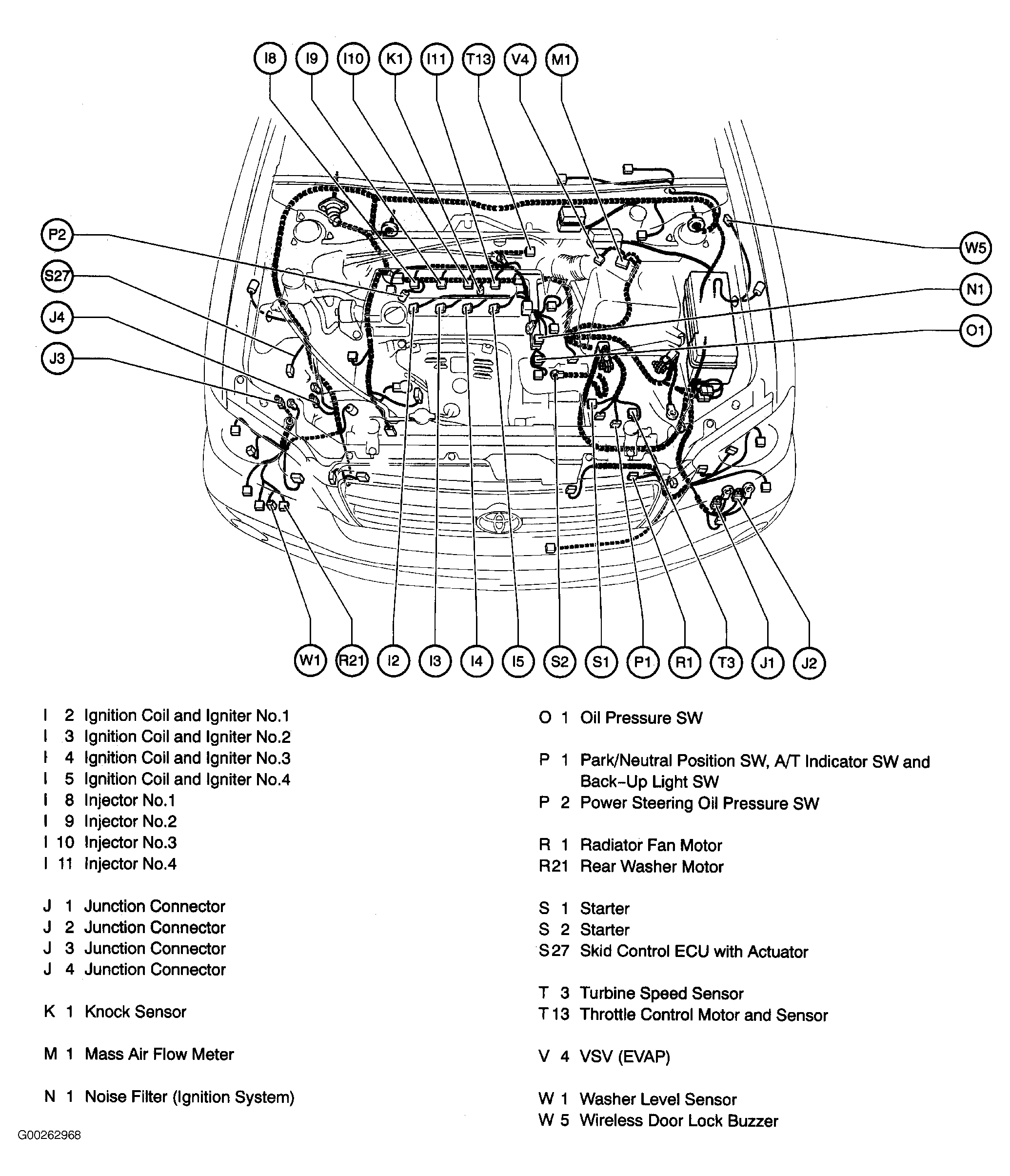

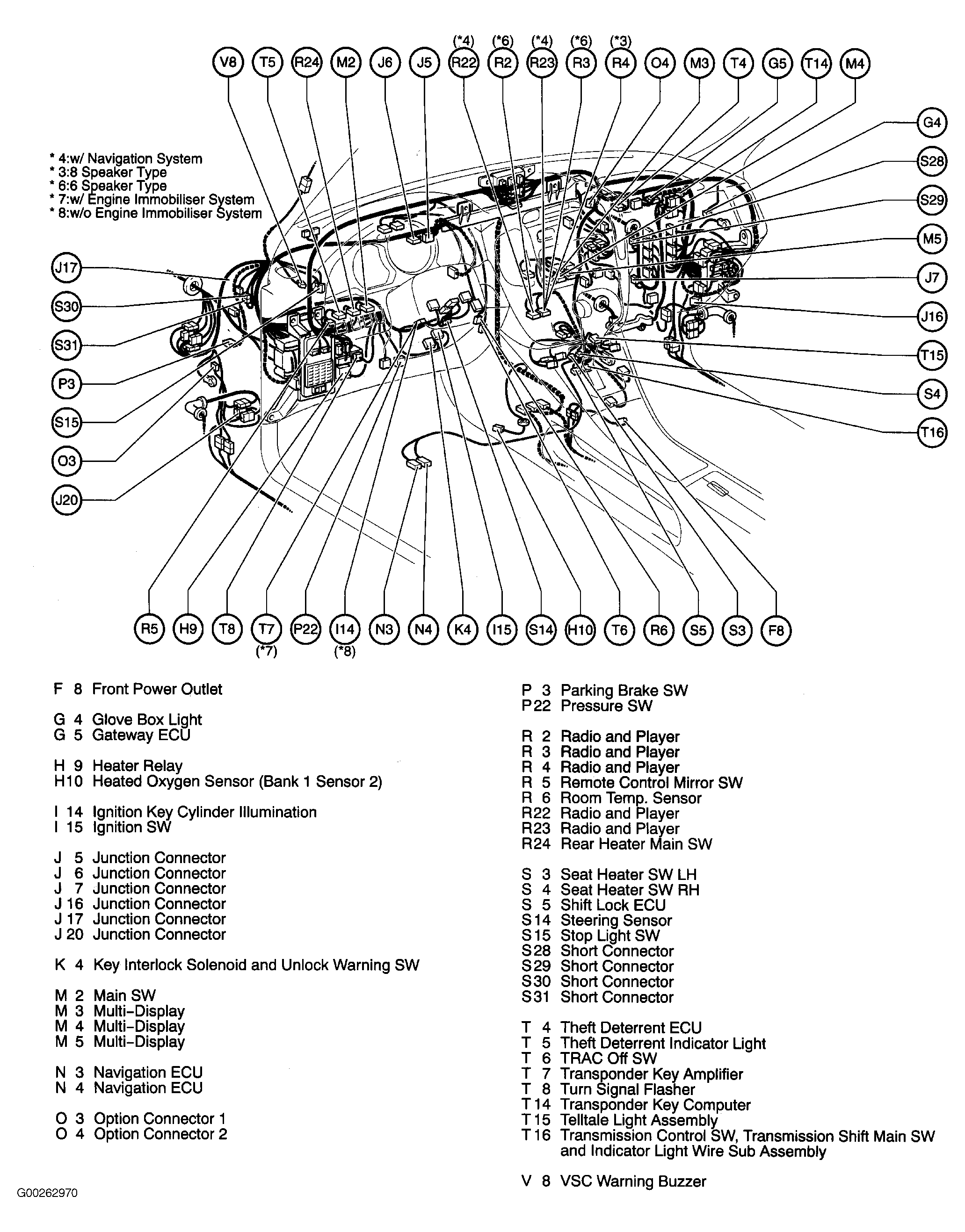

| Ignition Coil And Ignitor No. 1 (2.4L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 1 (3.3L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 2 (2.4L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 2 (3.3L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 3 (2.4L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 3 (3.3L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 4 (2.4L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 4 (3.3L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 5 (3.3L) | On top of engine. See Figure. |
| Ignition Coil And Ignitor No. 6 (3.3L) | On top of engine. See Figure. |
| Junction Connector No. 1 & 2 | Behind left headlight. See Figure. |
| Junction Connector No. 3 & 4 | On right side of engine compartment. See Figure. |
| Junction Connector No. 5 & 6 | Left side of dash, behind instrument cluster. See Figure. |
| Junction Connector No. 7 | Behind right side of dash. See Figure. |
| Junction Connector No. 10, 12, 13 & 14 | On left rear of vehicle. See Figure. |
| Junction Connector No. 16 | Right kick panel. See Figure. |
| Junction Connector No. 17 | Behind left side of dash. See Figure. |
| Junction Connector No. 18 & 19 | At rear of vehicle. See Figure. |
| Junction Connector No. 20 | Near left kick panel. See Figure. |
| Junction Connector No. 21 & 22 | Below driver's seat. See Figure. |
| Junction Connector No. 23 & 24 | Below right front seat. See Figure. |
| Noise Filter (Ignition System) (2.4L) | On rear of engine. See Figure. |
| Noise Filter (Ignition System) (3.3L) | On front center of engine. See Figure. |
| Noise Filter (Rear Window Defogger) | On left rear of vehicle. See Figure. |
| Option Connector No. 1 | Behind left kick panel. See Figure. |
| Option Connector No. 2 | Behind upper right side of dash. See Figure. |
| Pretensioner (Left) | At base of left "B" pillar. See Figure. |
| Pretensioner (Right) | At base of right "C" pillar. See Figure. |
| Seat Heater (Left) | In driver's seat. See Figure. |
| Seat Heater (Right) | In right front seat. See Figure. |
| Short Connector 28 | Behind right side of dash. See Figure. |
| Short Connector 29 | Behind right side of dash. See Figure. |
| Short Connector 30 | Behind left side of dash. See Figure. |
| Short Connector 31 | Behind left side of dash. See Figure. |

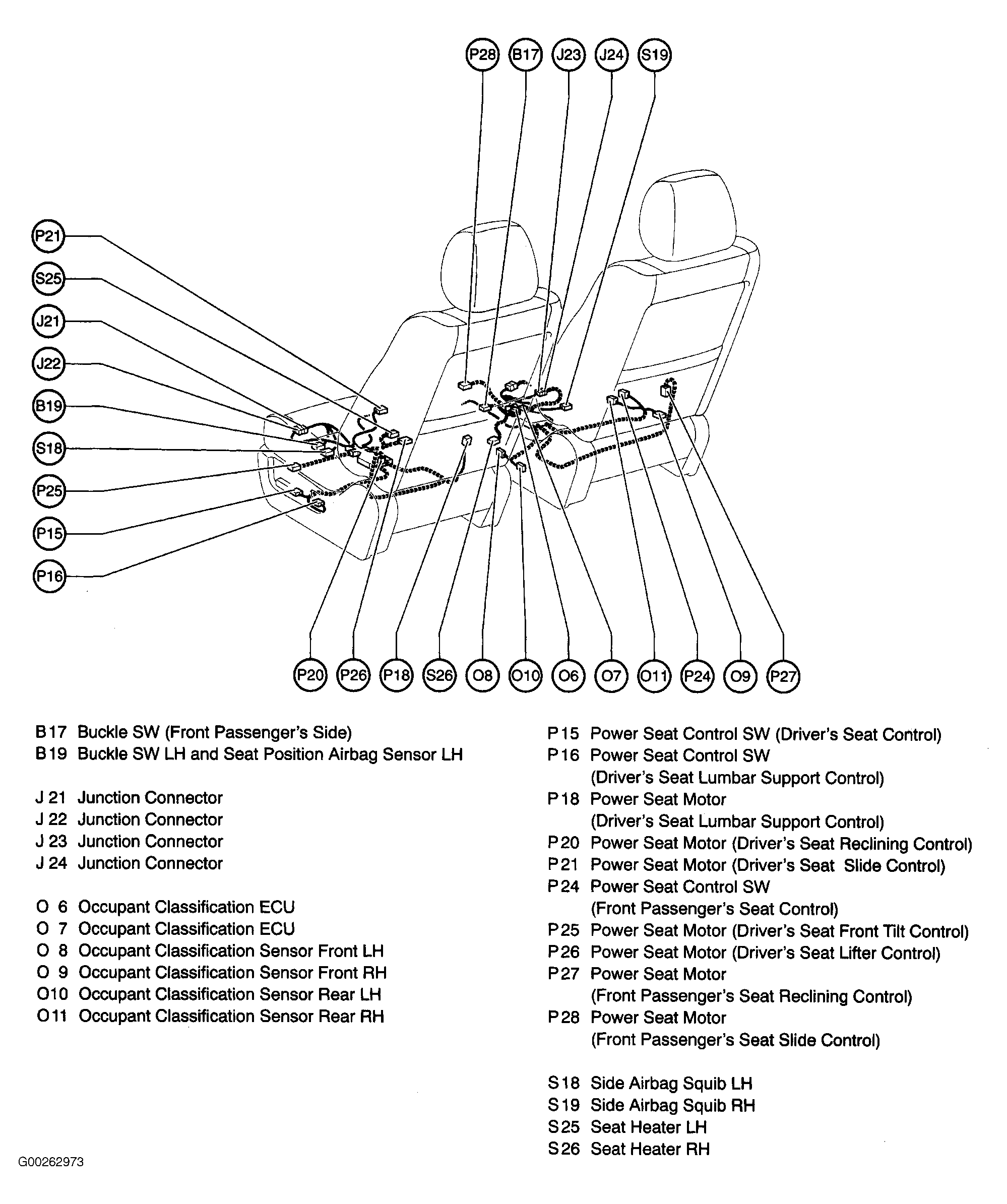

| Side Airbag Squib (Left) | In driver's seat. See Figure. |
| Side Airbag Squib (Right) | In right front seat. See Figure. |

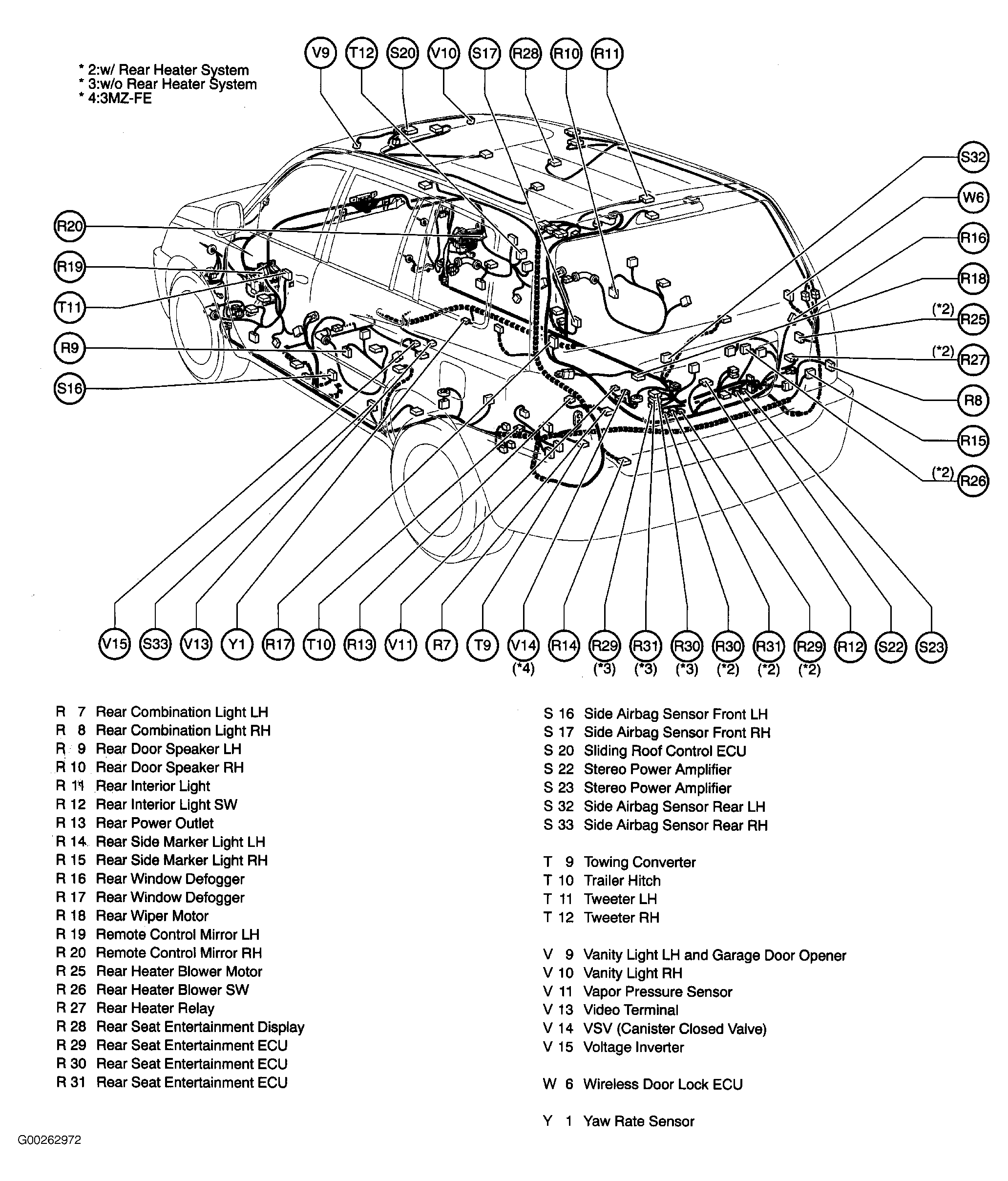

| Stereo Power Amplifier | In luggage compartment. See Figure. |
| Theft Deterrent Horn | On right side of engine compartment. See Figure. |
| Towing Converter | Rear of vehicle. See Figure. |
| Transponder Key Amplifier | In steering column. See Figure. |
| Voltage Inverter | Center of vehicle. See Figure. |
