Home >> Toyota >> 2005 >> Highlander Limited, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Quarter Window ASSY LH >> Components

Quarter Window ASSY LH: Components

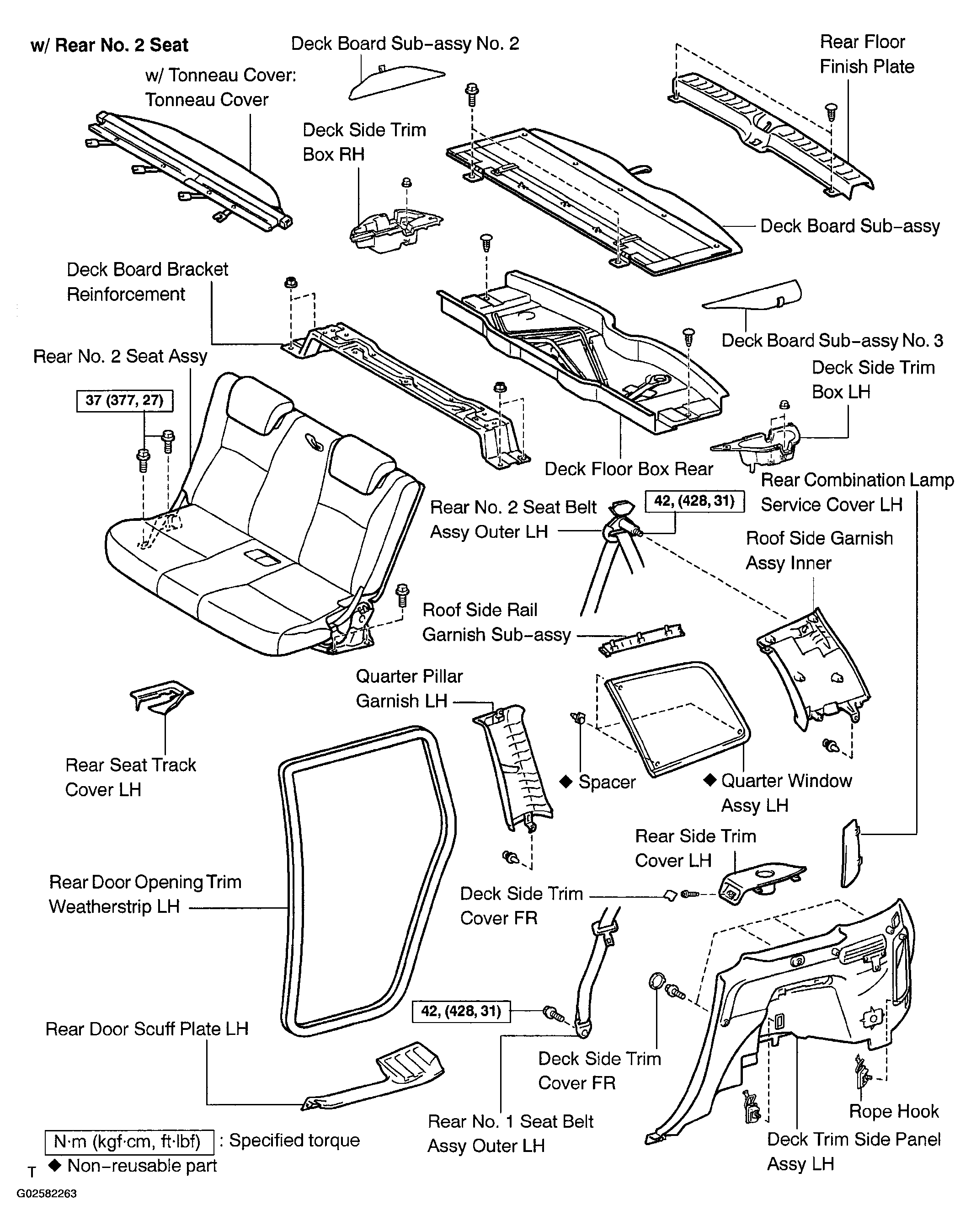

Fig 1: Quarter Window Assy LH Replacement Components With Torque Specifications (W/Rear No. 2 Seat)
G02582263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

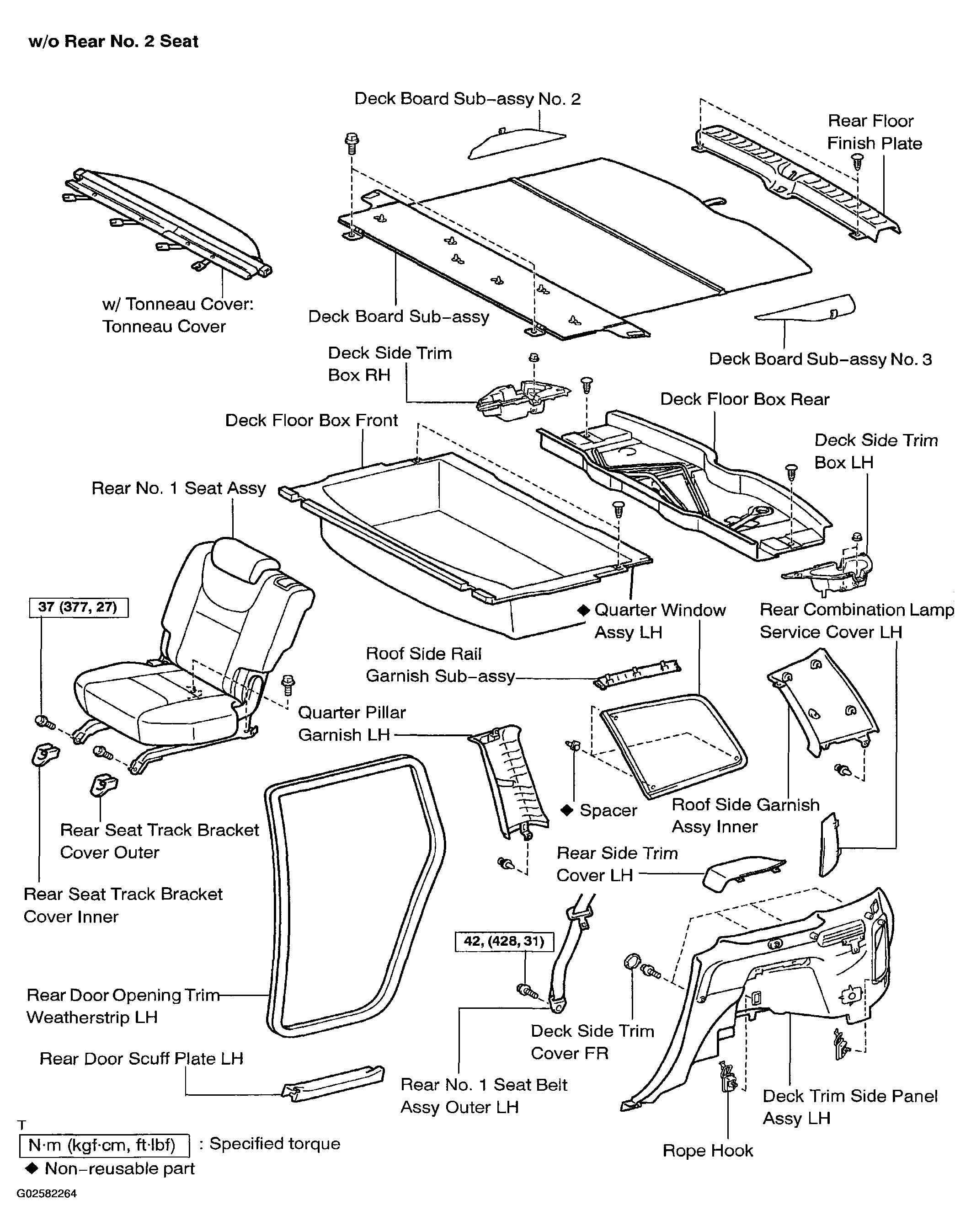

Fig 2: Quarter Window Assy LH Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)
G02582264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
