Inner Rear View Mirror ASSY: Inspection

HINT:

EC mirror stands for electrochromatic mirror.

1. w/EC mirror: INSPECT INNER REAR VIEW MIRROR ASSY
   1. Inspect operation of the electrochromatic inner rear view mirror.
      1. Connect the battery's positive (+) lead to terminal 6 and the battery's negative (-) lead to terminal 7.
      2. Attach black colored tape to the forward sensor to prevent it from sensing.
      3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

      If the result is not as specified, replace the mirror assy.

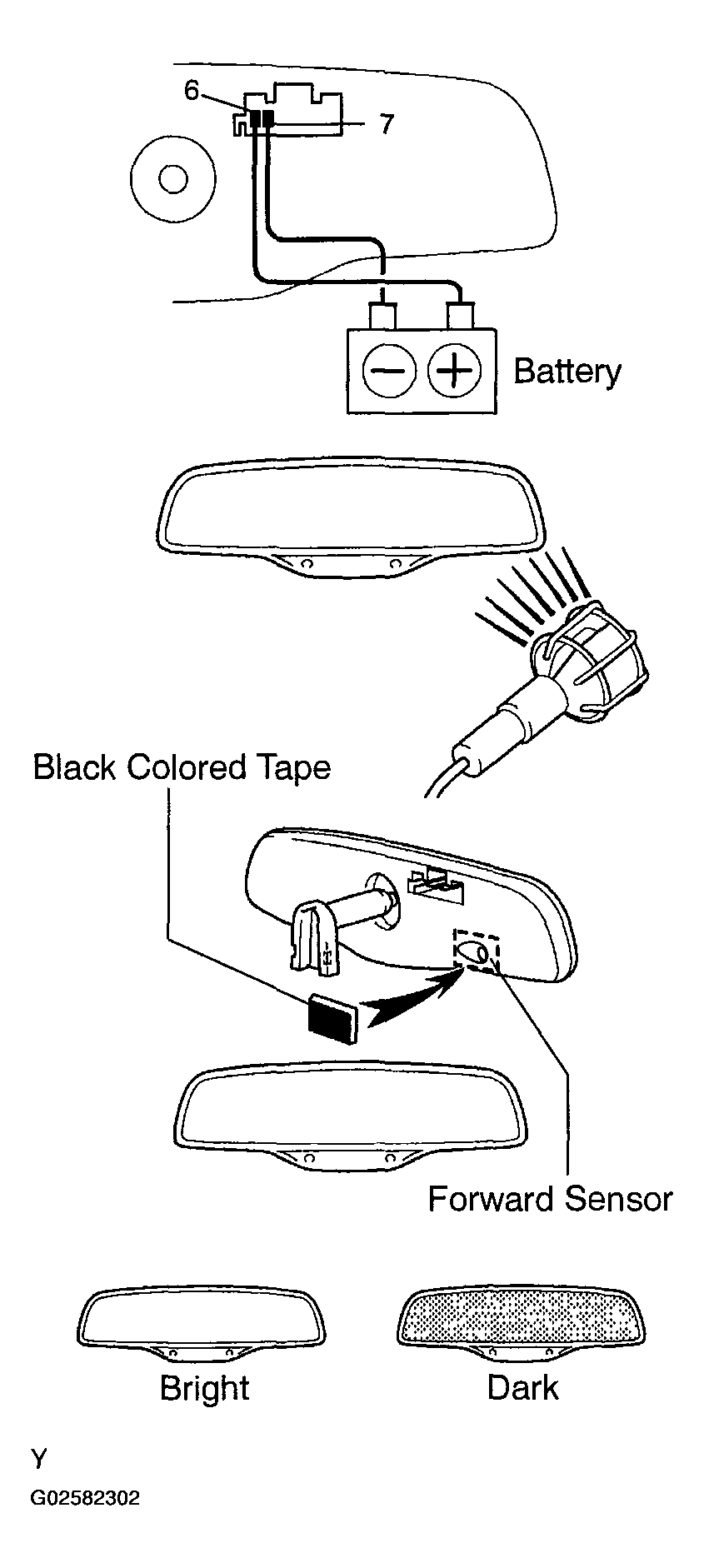

      Fig 1: Inspecting Inner Rear View Mirror Assy (W/EC Mirror)
