Driver Power Window Does Not Operate: Wiring Diagram

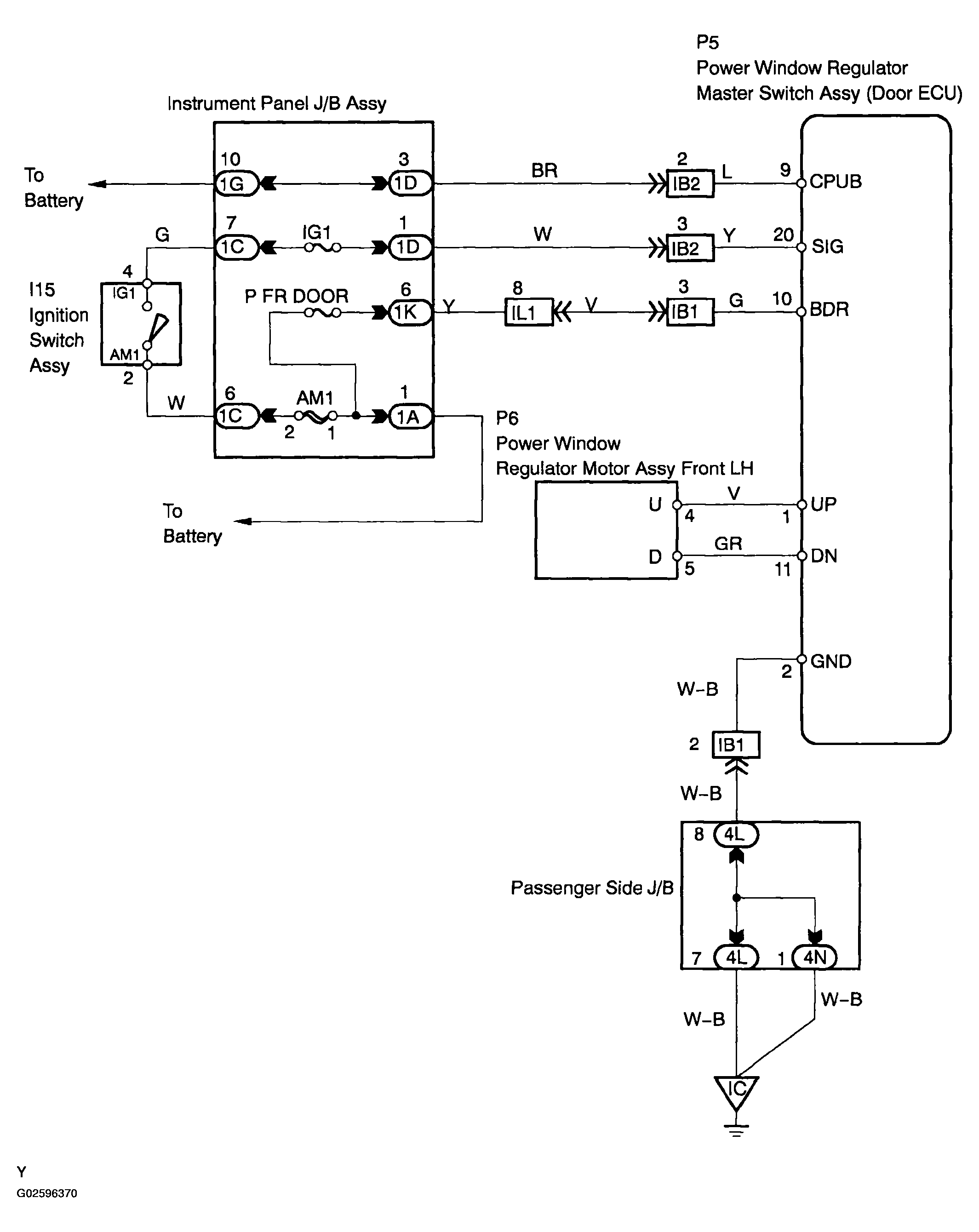

Fig 1: Wiring Diagram - Power Windows

G02596370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
