Instrument Panel/Meter: Components

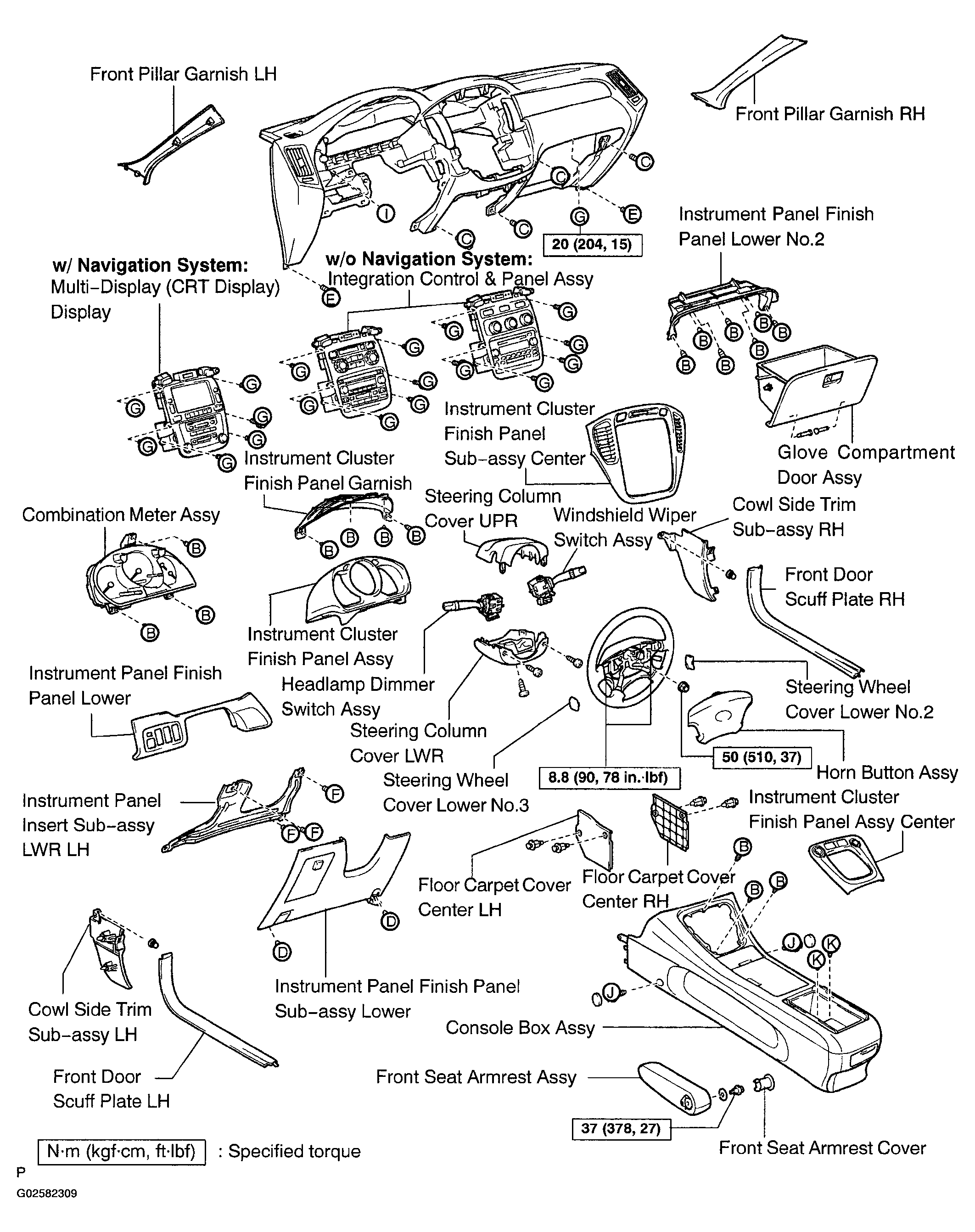

Fig 1: Instrument Panel/Meter Replacement Components With Torque Specifications (1 Of 3)
G02582309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Instrument Panel/Meter Replacement Components With Torque Specifications (2 Of 3)
G02582310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

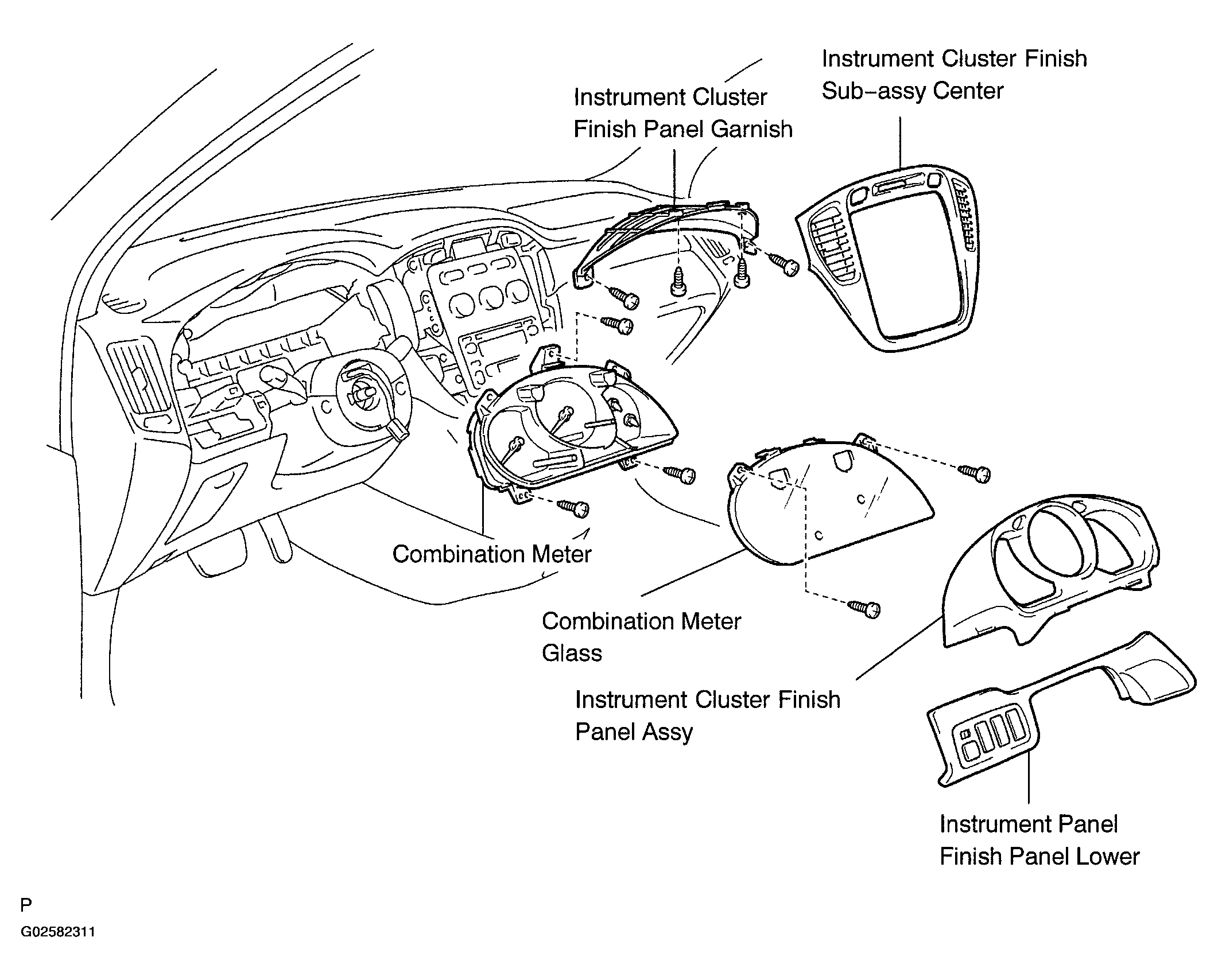

Fig 3: Identifying Instrument Panel/Meter Components (3 Of 3)
G02582311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
