Shift Lever System (ATM): Components

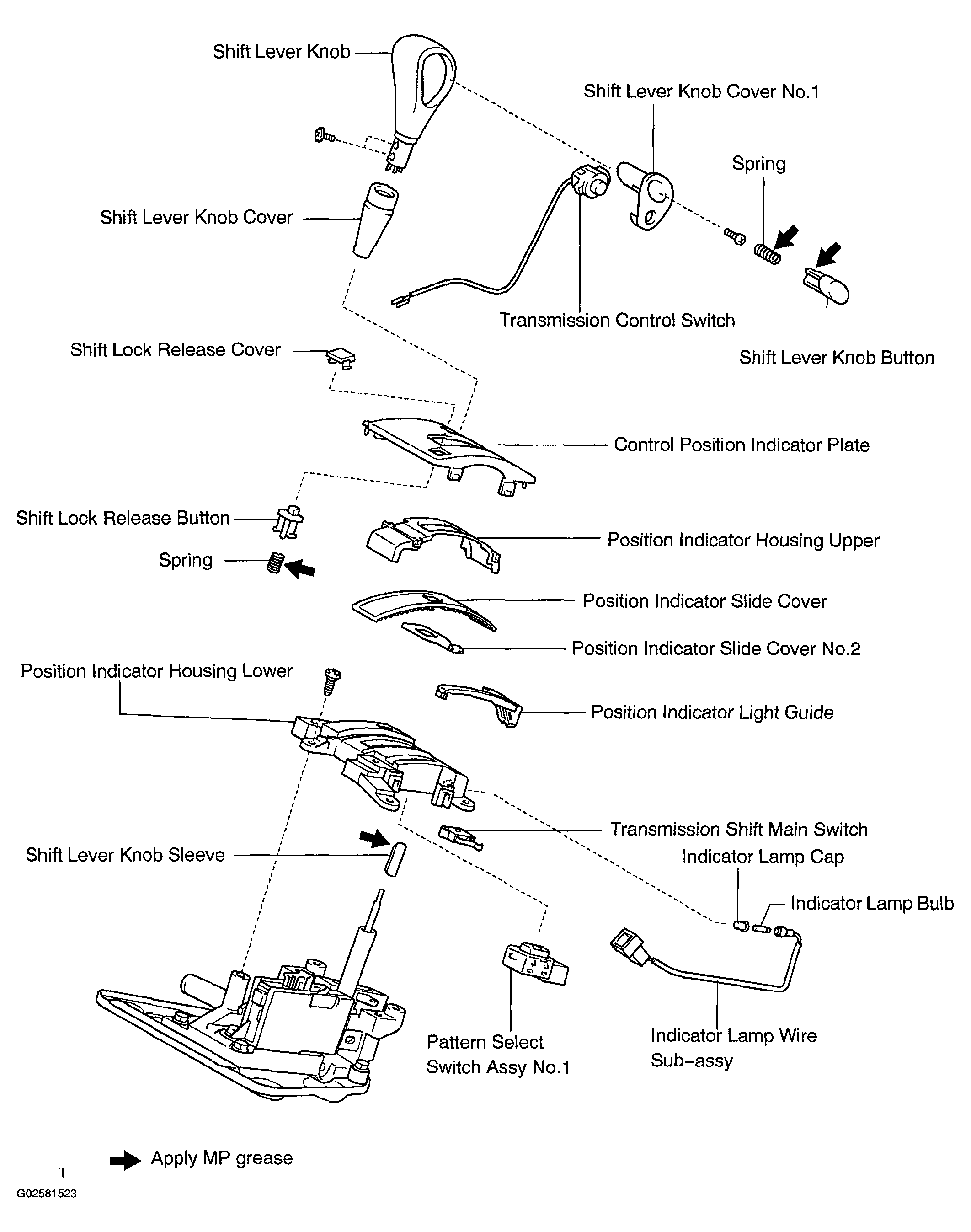

Fig 1: Identifying Shift Lever Assy Components

G02581523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
