Accelerator Pedal Rod ASSY (3MZ-FE): Replacement

1. REMOVE ACCELERATOR PEDAL ROD ASSY
   1. Disconnect the accelerator pedal position sensor connector.
   2. Remove the 2 bolts and pedal rod.
2. INSTALL ACCELERATOR PEDAL ROD ASSY
   1. Install the pedal rod with the 2 bolts.

      Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

   2. Connect the accelerator pedal position sensor connector.

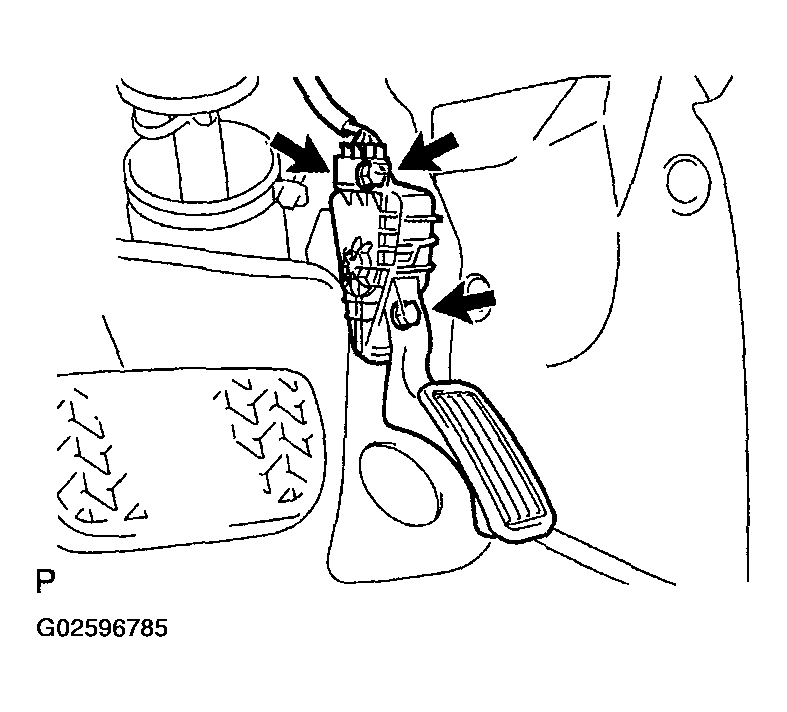

Fig 1: Removing & Installing Accelerator Pedal Rod Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
