Accelerator Pedal Rod ASSY (2AZ-FE): Replacement

  1. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and pedal rod.
  2. INSTALL ACCELERATOR PEDAL ROD ASSY
    1. Install the pedal rod with the 2 bolts.

      Torque: 4.9 N m (50 kgf cm, 43 in.lbf)

    2. Connect the accelerator pedal position sensor connector.

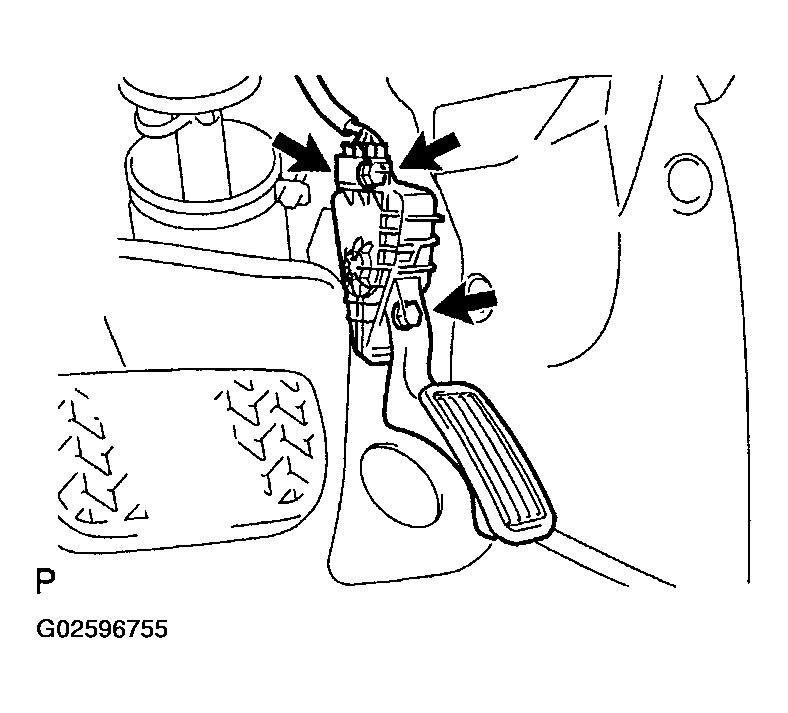

      Fig 1: Installing Accelerator Pedal Rod Assy
      G02596755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
