Engine Control System (SFI) (3MZ-FE) - Diagnostics: Location

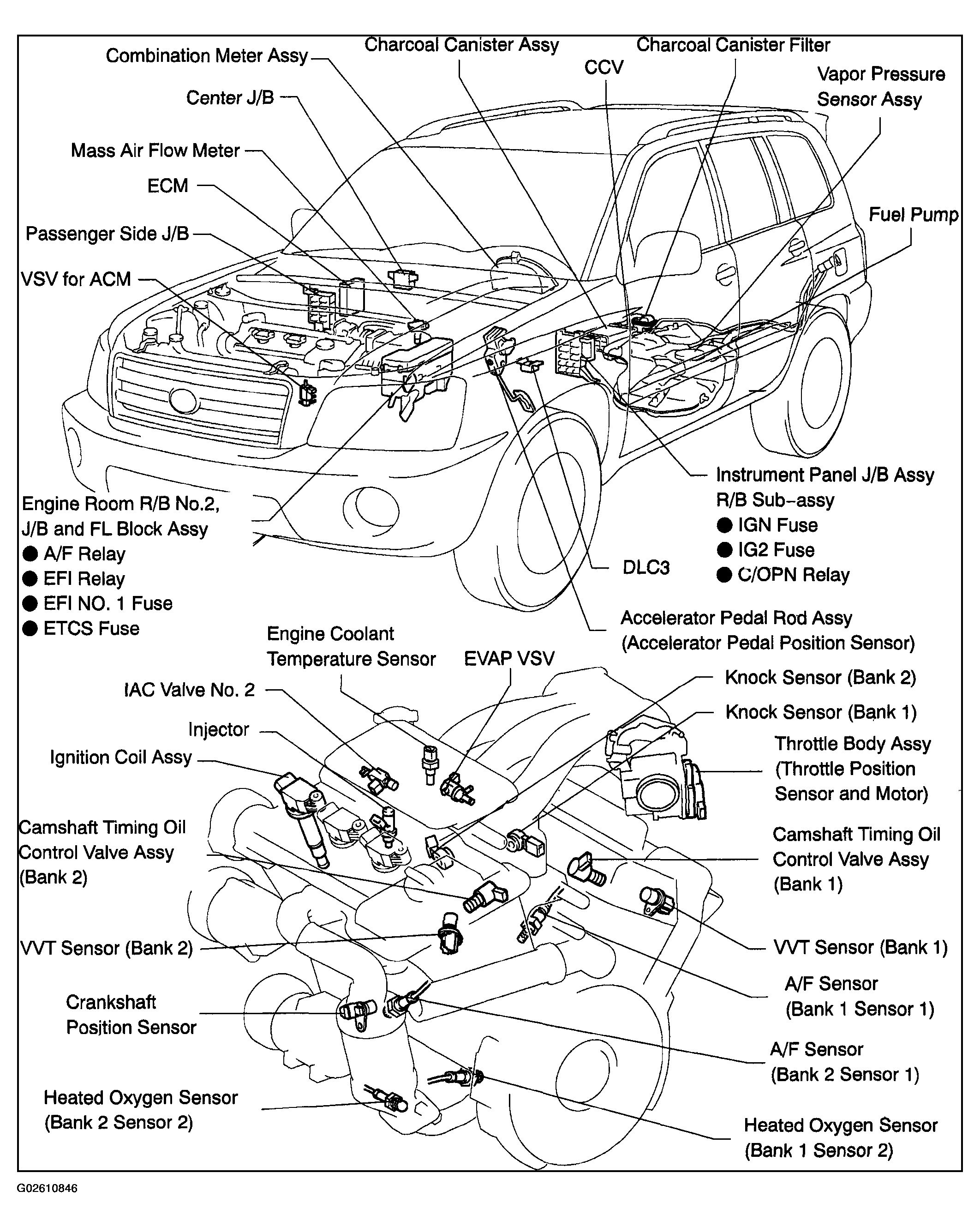

Fig 1: Identifying SFI System (3MZ-FE) Components Location

G02610846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
