Hand-held tester:

  1. PERFORM ACTIVE TEST USING HAND-HELD TESTER (OPERATE C/OPN RELAY)
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD.
    4. Check the relay operation while operating it with the hand-held tester.

      Standard: Operating noise can be heard from the relay.

    1. OK: Go to step   5
    2. NG: Go to next step
  2. INSPECT RELAY
    1. Remove the circuit opening relay from the R/B sub-assy.
    2. Check the resistance of the circuit opening relay.

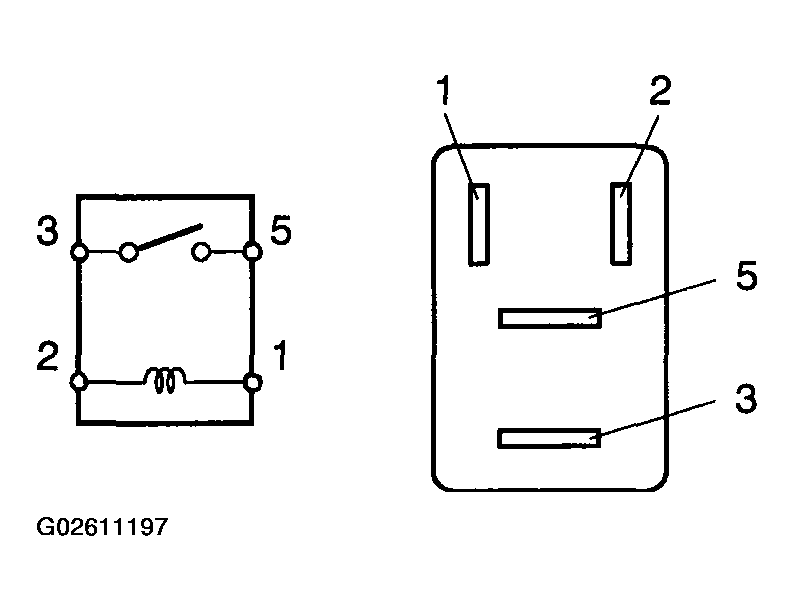

    Fig 1: Inspecting Relay
    G02611197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    CIRCUIT OPENING RELAY RESISTANCE SPECIFICATIONS

    Tester Connection Specified Condition
    3-5 10 kΩ or higher
    3-5 Below Ω (when battery voltage is applied to terminals 1 and 2)
    1. NG: REPLACE RELAY
    2. OK: Go to next step
  3. INSPECT ECM (FC VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

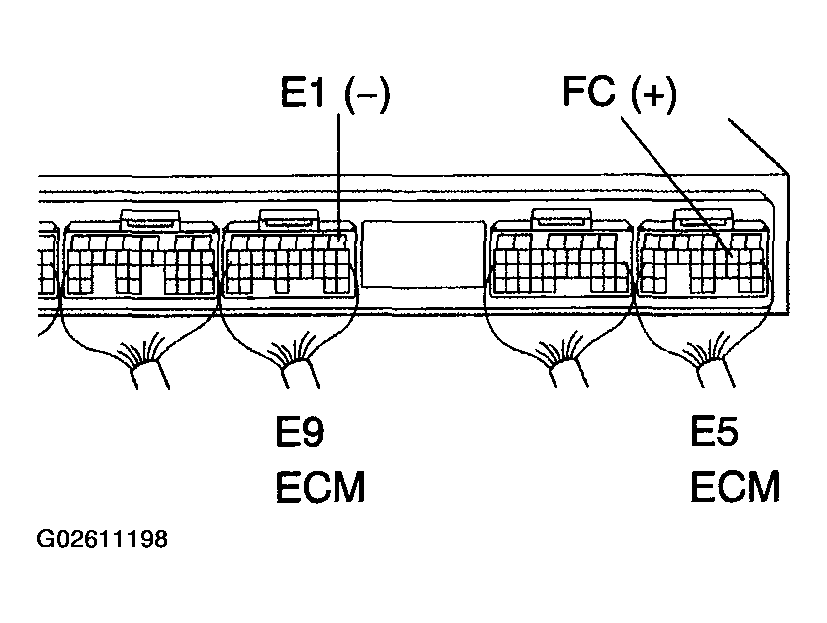

    Fig 2: Identifying ECM Connectors
    G02611198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    ECM CONNECTORS VOLTAGE SPECIFICATIONS

    Tester Connection Specified Condition
    E5-10 (FC) - E9-1 (E1) 9 to 14 V
    1. OK: REPLACE ECM (See  ECM (3MZ-FE)  )
    2. NG: Go to next step
  4. CHECK WIRE HARNESS (ECM - CIRCUIT OPENING RELAY, CIRCUIT OPENING RELAY - IGNITION)
    1. Check the wire harness between the ECM and circuit opening relay.
      1. Disconnect the E5 ECM connector.
      2. Remove the circuit opening relay from the R/B sub-assy.
      3. Check the resistance of the wire harness side connectors.

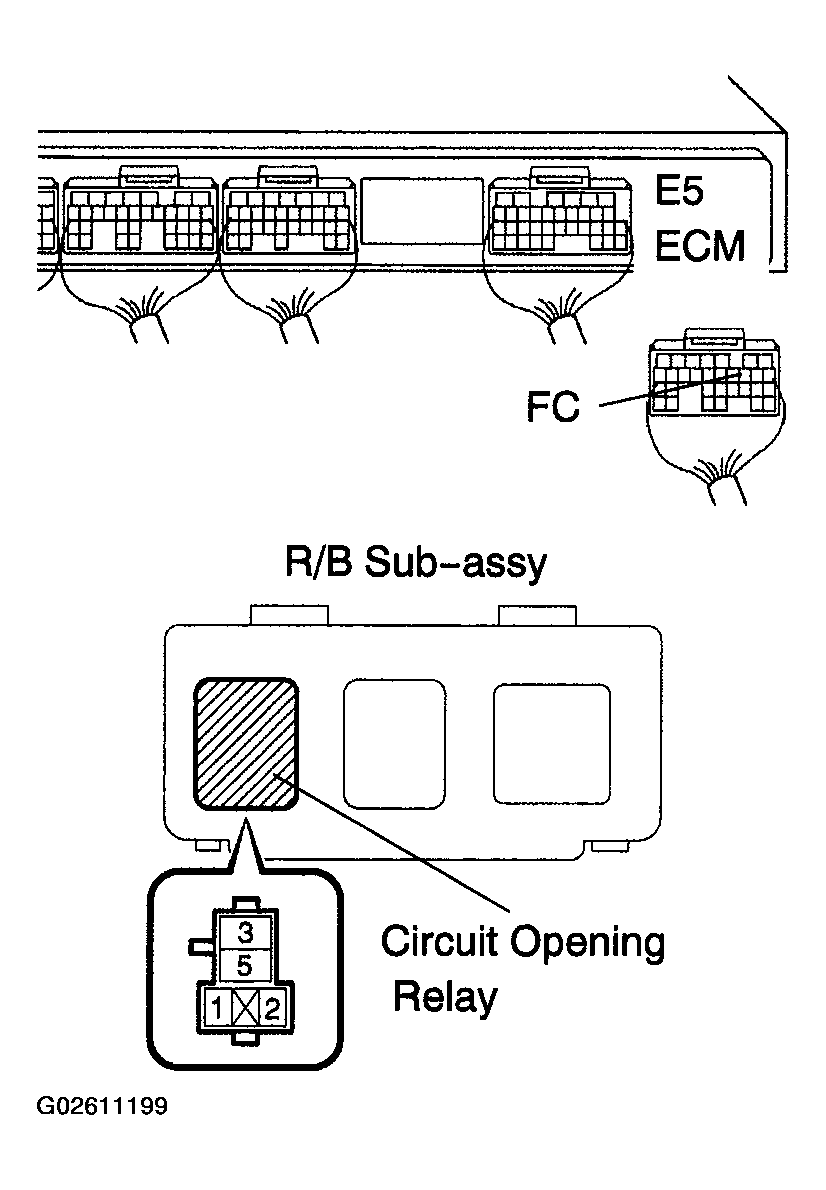

      Fig 3: Identifying E5 ECM And Circuit Opening Relay Connector Terminals
      G02611199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      ECM AND CIRCUIT OPENING RELAY CONNECTOR RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      E5-10 (FC) - R/B sub-assy circuit opening relay terminal 2 Below 1 Ω
      E5-10 (FC) or R/B sub-assy circuit opening relay terminal 2 - Body ground 10 kΩ or higher
    2. Check the wire harness between the circuit opening relay and ignition switch.
      1. Check the IGN fuse.
        • Remove the IGN fuse from the instrument panel J/B assy.
        • Check the resistance of the IGN fuse.

          Standard: Below 1 Ω

        • Reinstall the IGN fuse.
      2. Remove the circuit opening relay from the R/B sub-assy.
      3. Disconnect the 115 ignition switch connector.
      4. Check the resistance of the wire harness side connectors.

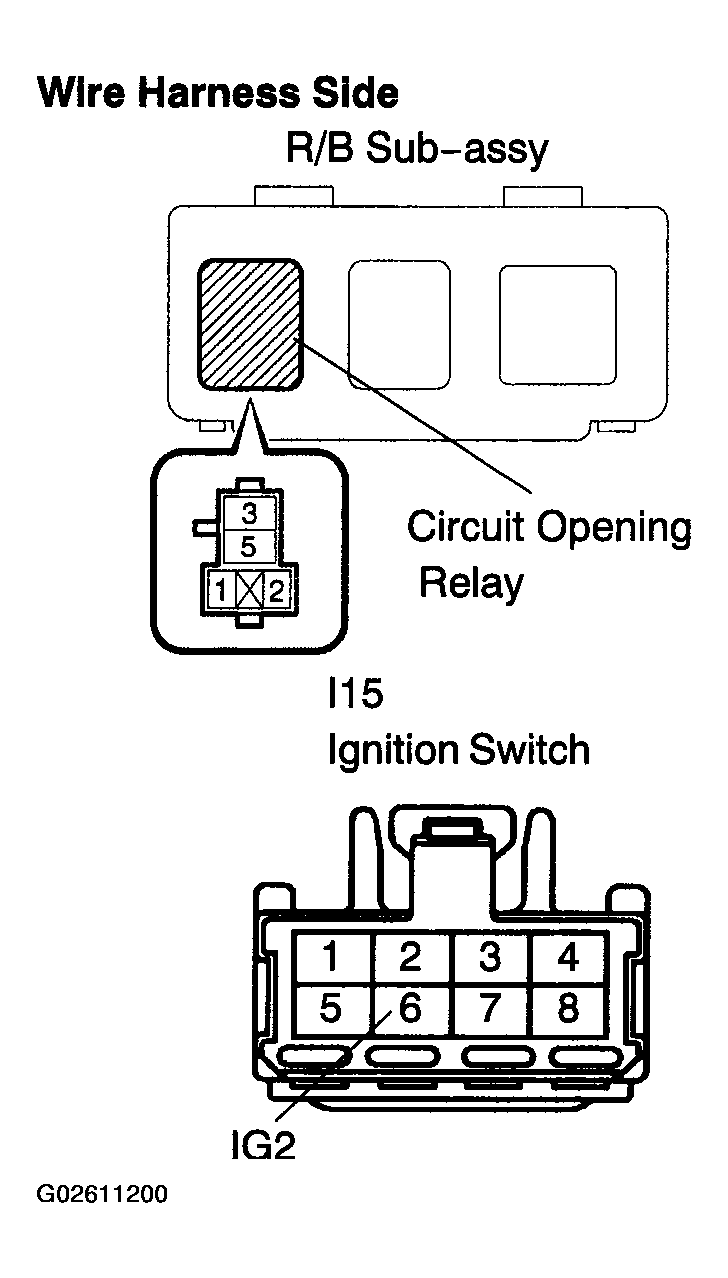

      Fig 4: Identifying 115 Ignition Switch And Circuit Opening Relay Connector Terminals
      G02611200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      IGNITION SWITCH AND CIRCUIT OPENING RELAY CONNECTOR RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      R/B sub-assy circuit opening relay terminal 1 - I15-6 Below 1 Ω
      I15-6 or R/B sub-assy circuit opening relay terminal 1 - Body ground 10 kΩ or higher
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE ECM (See  ECM (3MZ-FE)  )
  5. INSPECT FUEL PUMP ASSY
  6. Check the fuel pump resistance.
    1. Measure the resistance between terminals 4 and 5.

      Standard: 0.2 to 3.0 Ω at 20°C (68°F)

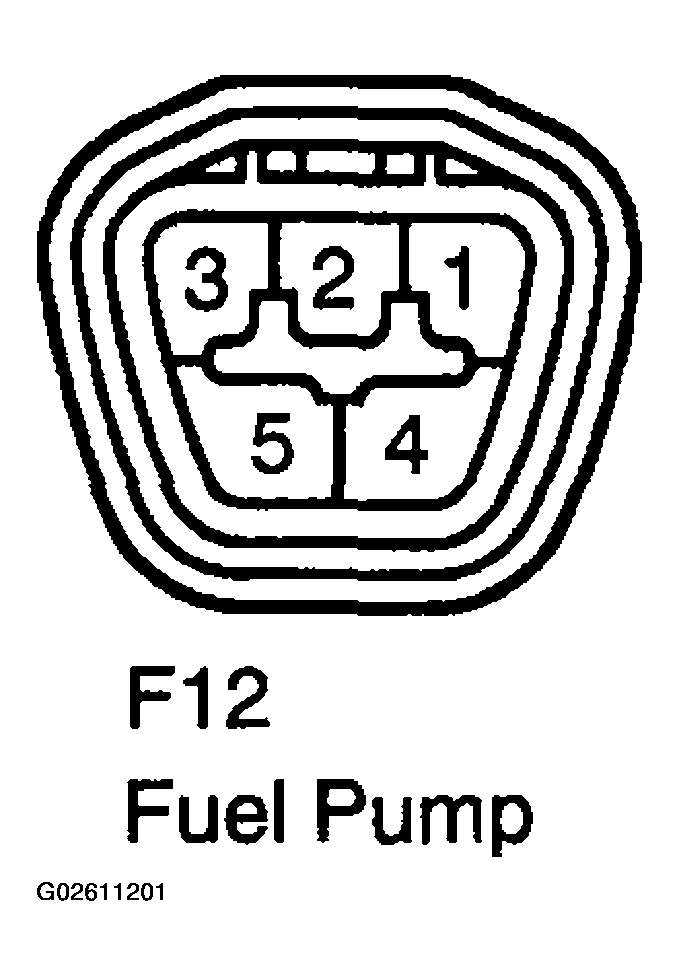

      Fig 5: Identifying Fuel Pump Connector Terminals
      G02611201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Check the fuel pump operation
    1. Apply battery voltage to both the terminals. Check that the pump operates.
    NOTE:
    • These tests must be done quickly (within 10 seconds) to prevent the coil from burning out.
    • Keep fuel pump as far away from the battery as possible.
    • Always turn on and off the voltage on the battery side, not the fuel pump side.
    1. NG: REPLACE FUEL PUMP ASSY (See  REPLACEMENT  )
    2. OK: Go to next step
  8. CHECK WIRE HARNESS (CIRCUIT OPENING RELAY - FUEL PUMP, FUEL PUMP - BODY GROUND)
    1. Check the wire harness between the circuit opening relay and fuel pump.
      1. Remove the circuit opening relay from the R/B sub-assy.
      2. Disconnect the F12 fuel pump connector.
      3. Check the resistance of the wire harness side connectors.

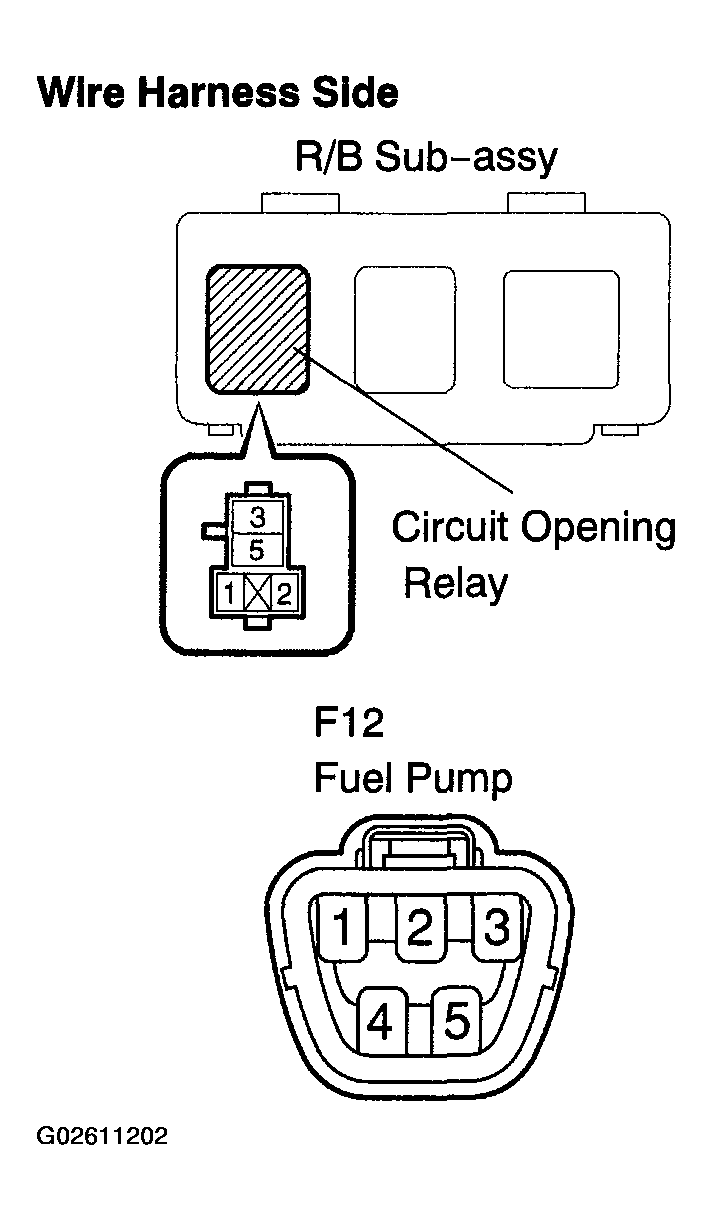

      Fig 6: Identifying Fuel Pump And Circuit Opening Relay Connector Terminals
      G02611202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      FUEL PUMP AND CIRCUIT OPENING RELAY CONNECTOR RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      R/B sub-assy circuit opening relay terminal 3- F12-4 Below 1 Ω
      R/B sub-assy circuit opening relay terminal 3 or F12-4 - Body ground 10 kΩ or higher
    2. Check the wire harness between the fuel pump and body ground.
      1. Disconnect the F12 fuel pump connector.
      2. Check the resistance the wire harness side connectors.

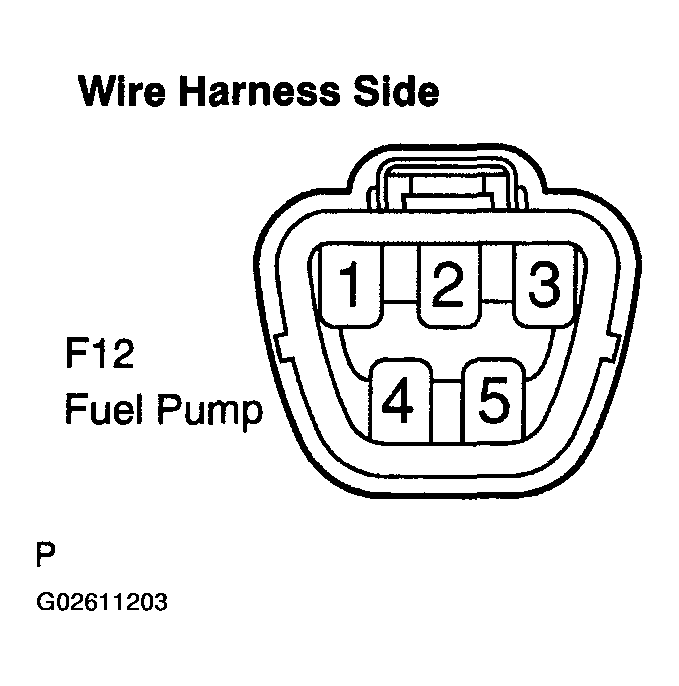

      Fig 7: Identifying F12 Fuel Pump Connector Terminal
      G02611203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      F12 FUEL PUMP CONNECTOR RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      F12-5 - Body ground Below 1 Ω
    1. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. NG: REPLACE ECM (See  ECM (3MZ-FE)  )
