Fail-Safe Chart

If any of the following codes are recorded, the ECM enters fail-safe mode.

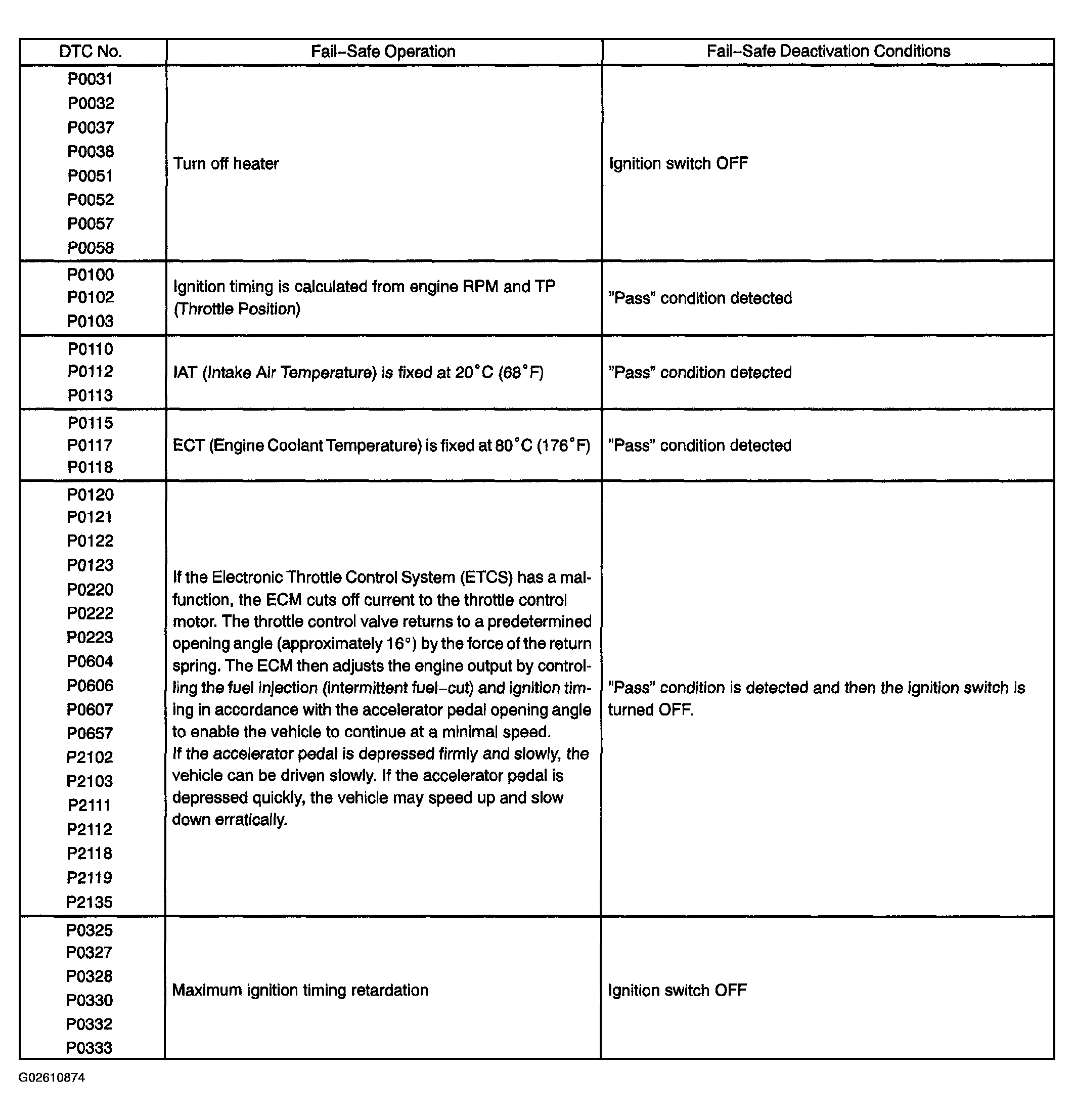

Fig 1: Fail-Safe Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

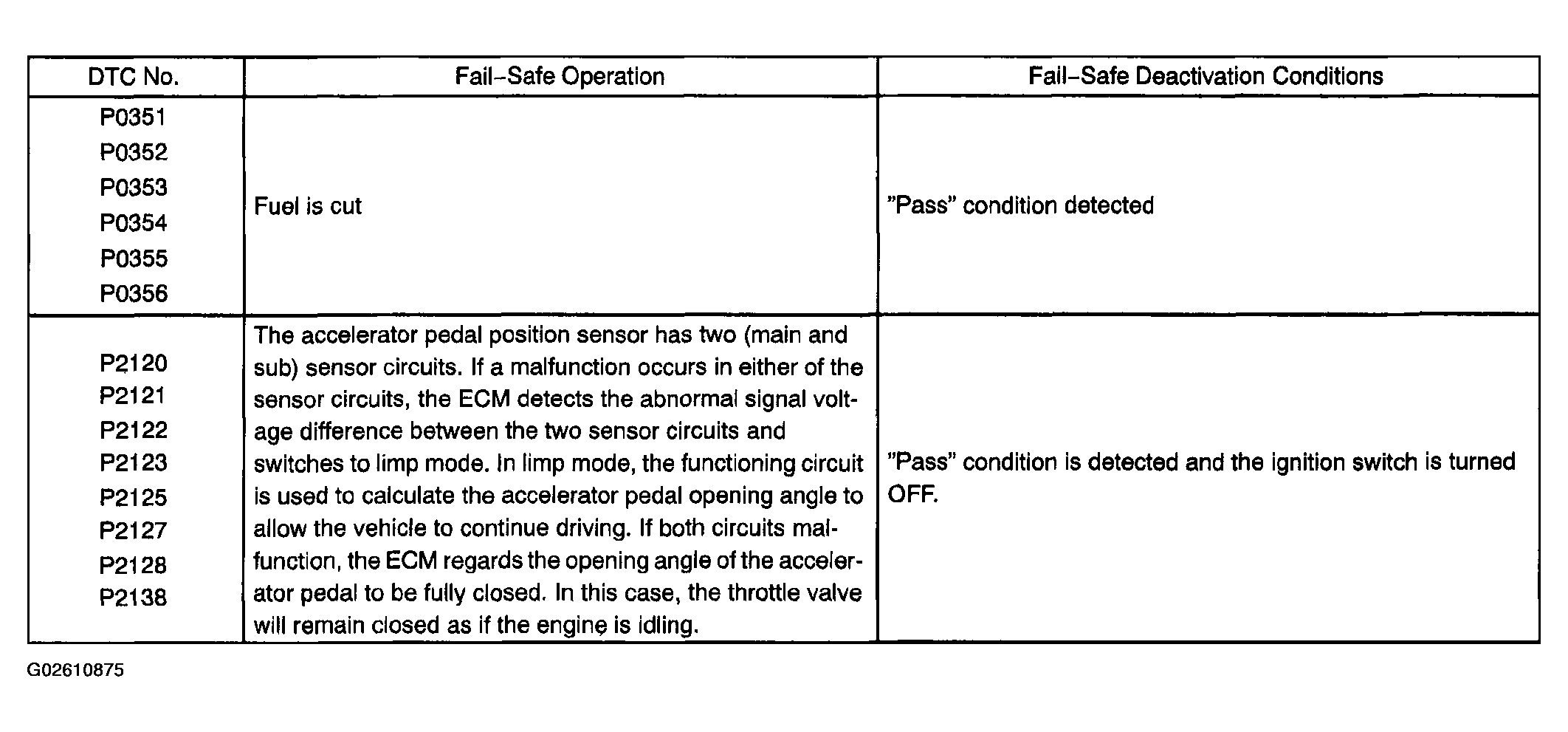

Fig 2: Fail-Safe Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
