Active Control Engine Mount: Wiring Diagram

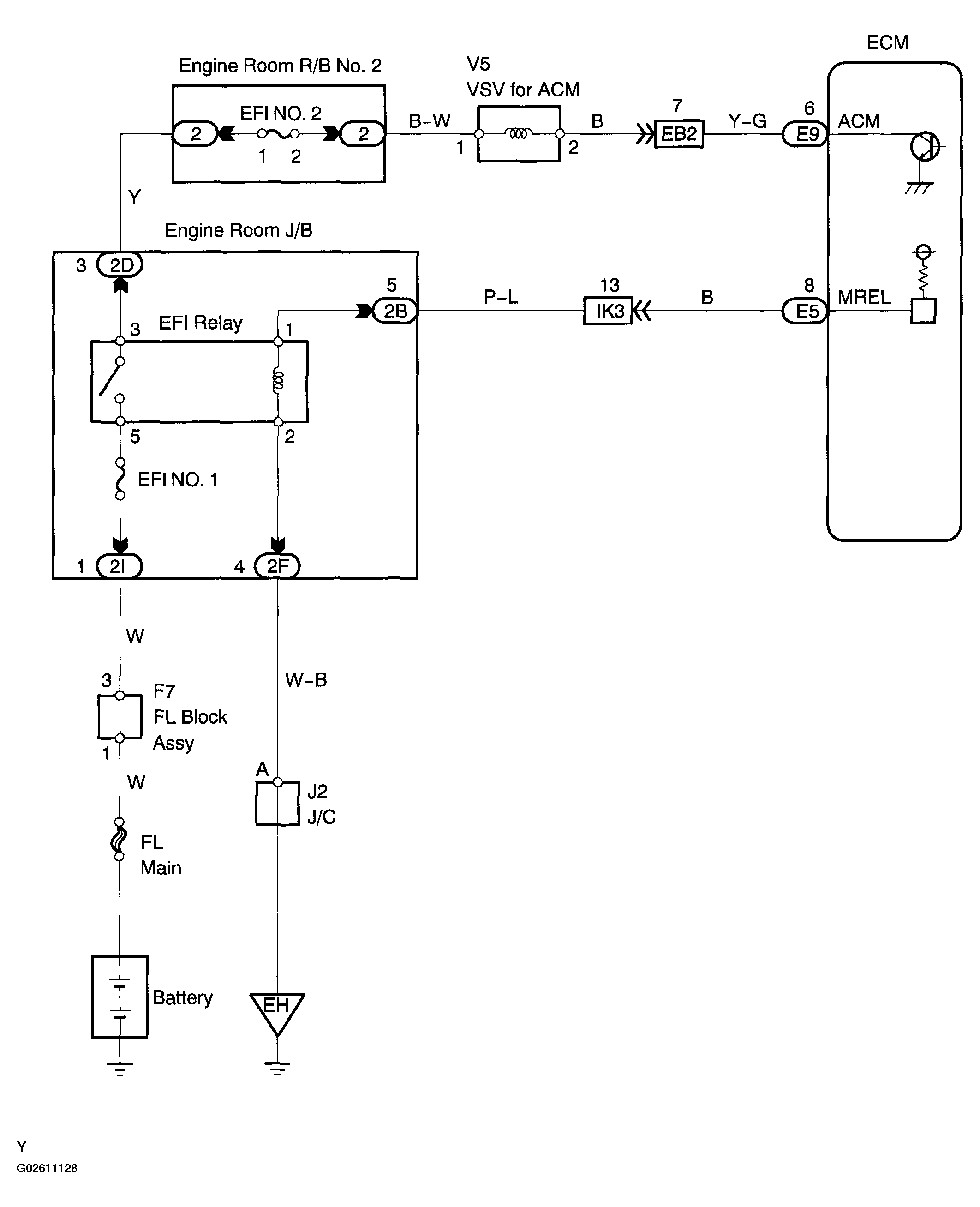

Fig 1: Wiring Diagram - Active Control Mount (ACM) System

G02611128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
