Inspection Procedure

  1. INSPECT COMBINATION METER ASSY
    1. Measure the resistance according to the value (s) in the table below.

      Standard:

      TERMINAL SPECIFIED CONDITION CHART

      Terminal No Condition Specified condition
      C11-11-Body ground Always Below 1 Ω

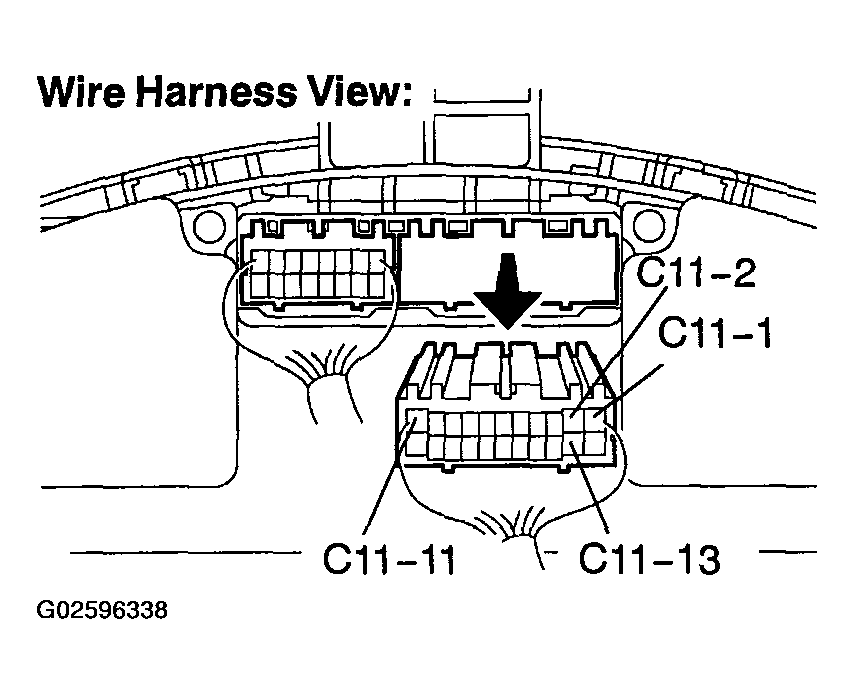

      Fig 1: Identifying Combination Meter Assy Connector
      G02596338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      TERMINAL SPECIFIED CONDITION CHART

      Terminal No Condition Specified condition
      C11-2-Body ground Always Below 10 to 14 V
      C11-1-Body ground Ignition switch ON 10 to 14 V
      C11-13-Body ground Ignition switch ON 10 to 14 V
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: REPLACE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )
