Cruise Control System - Diagnostics
>>
Cruise Control Switch Circuit
>>
Wiring Diagram
Cruise Control Switch Circuit: Wiring Diagram

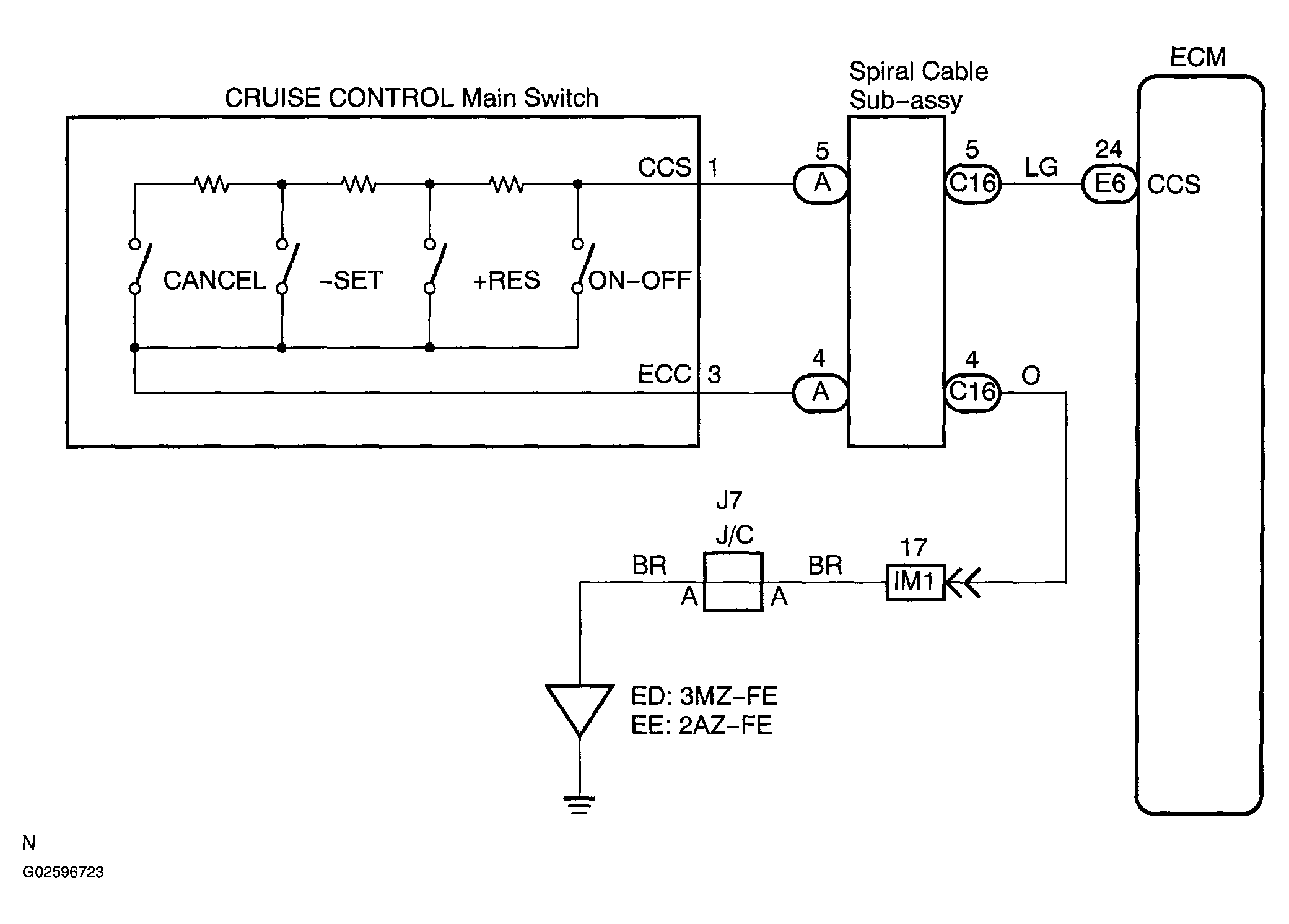

Fig 1: Cruise Control Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
