Inspection Procedure

CHECK THE MAP DISC
1. Check for dirt on the map disc surface.
  OK: No dirt is on the map disc surface.

  HINT:

  If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

  NOTE: Do not use conventional record cleaner or anti-static preservative.

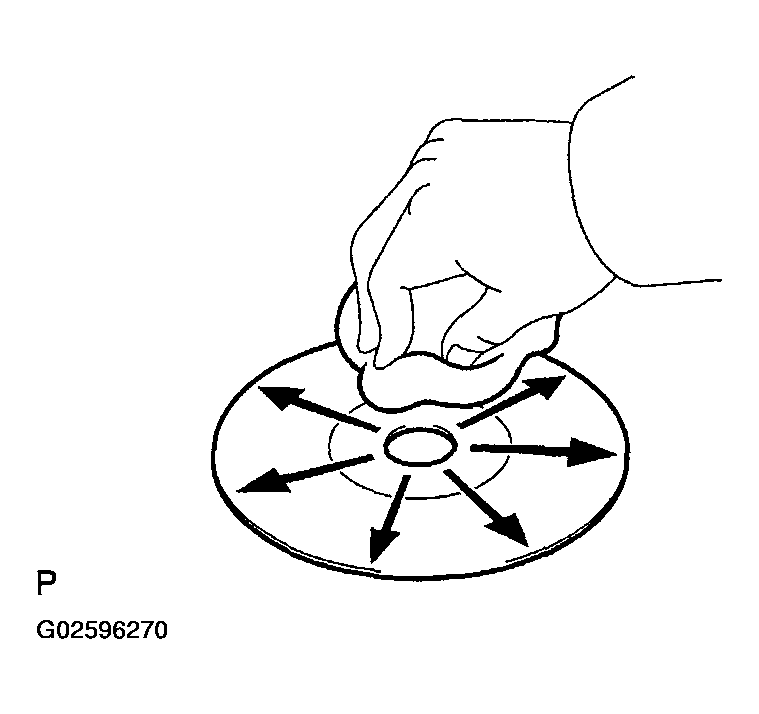

  Fig 1: Cleaning MAP Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CLEAN THE MAP DISC
2. OK: Go To Next Step
CHECK THE MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks appear on the map disc.

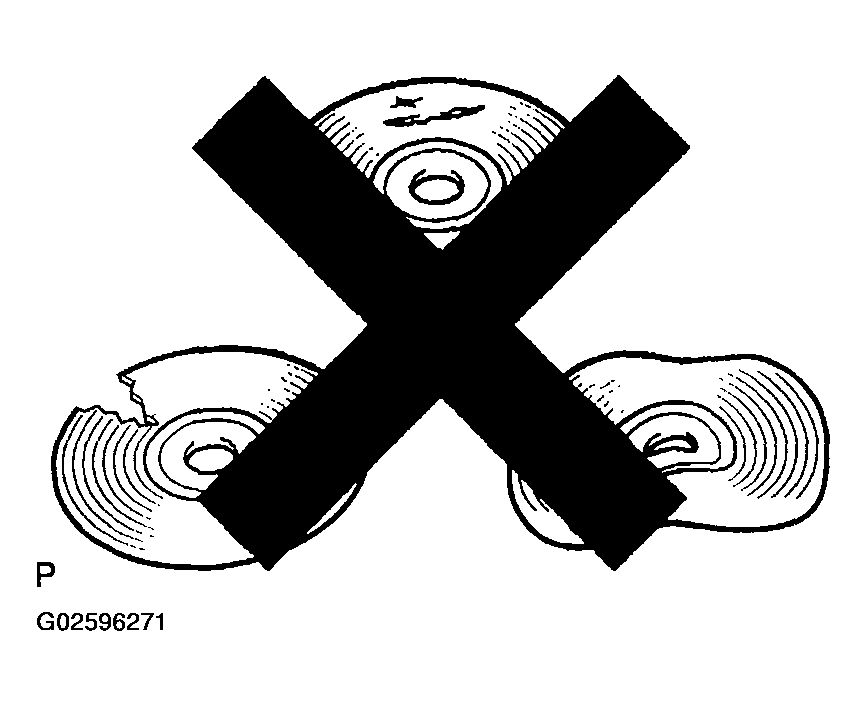

  Fig 2: Identifying Cracked Or Deformed Map Discs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE THE MAP DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
