Generator ASSY (3MZ-FE): Replacement

REMOVE GENERATOR ASSY
1. Remove the wire harness clamp.
2. Disconnect the generator connector.
3. Open the terminal cap, remove the nut and disconnect the generator wire.

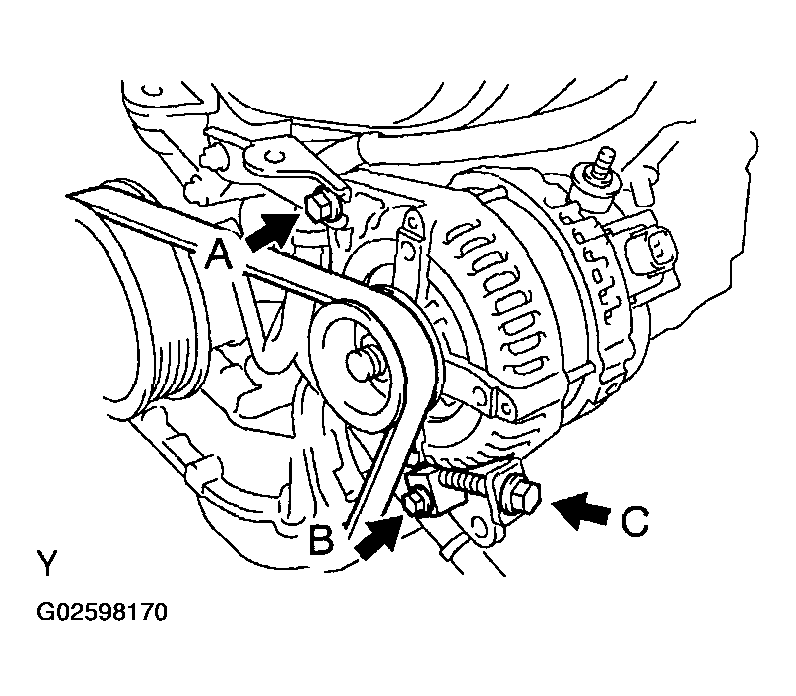

  Fig 1: Disconnecting Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Loosen bolts A and B.
5. Loosen bolt C to lessen the tension of the V belt.

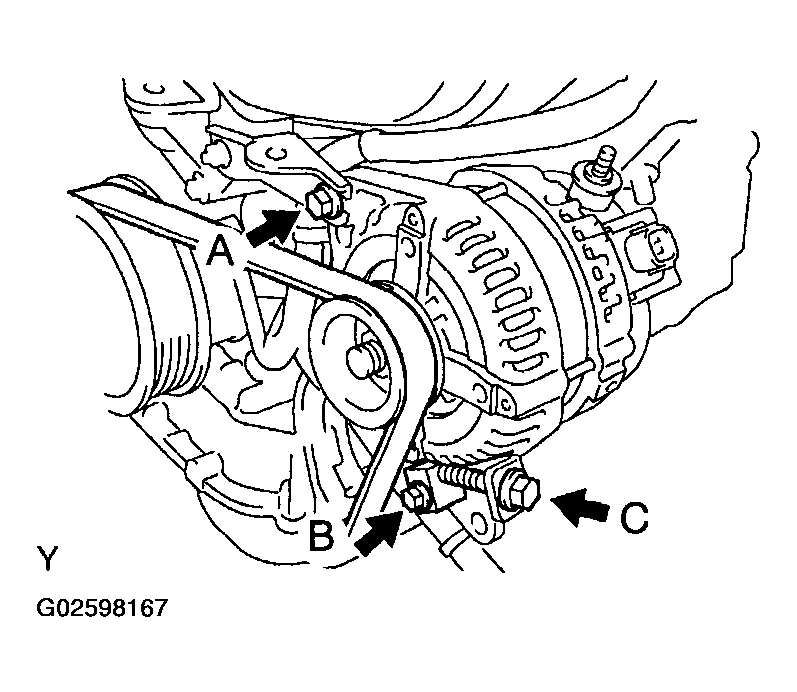

  Fig 2: Loosening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove bolts A and B, and the generator.

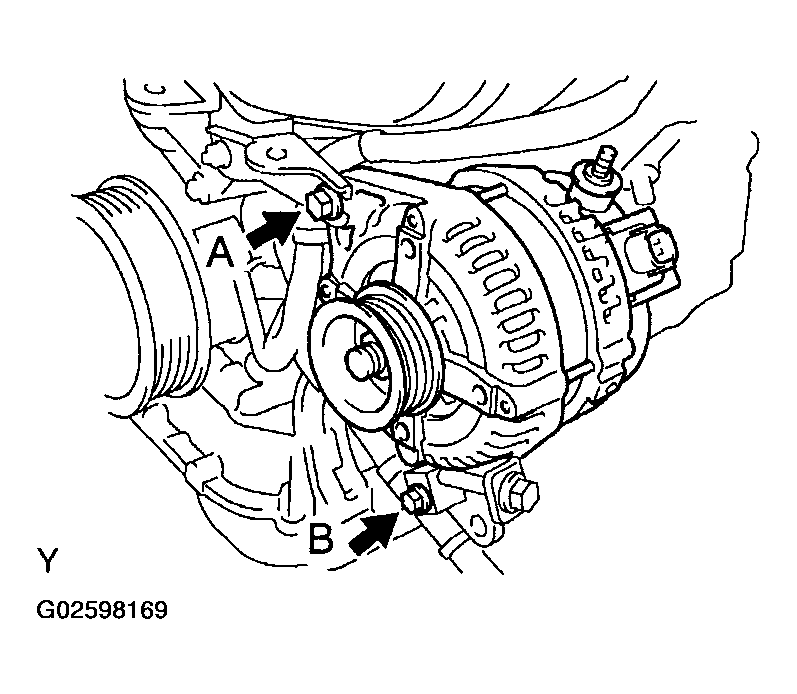

  Fig 3: Removing Bolts And Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GENERATOR ASSY
1. Temporarily install the generator with bolts A and B.

  Fig 4: Installing Generator Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the V belt tension by tightening bolt C (see DRIVE BELT (3MZ-FE) ).
3. Tighten bolts A and B.
  Torque:

  58 N.m (592 kgf.cm, 43 ft.lbf) for bolt A

  18 N.m (184 kgf.cm, 13 ft.lbf) for bolt B
4. Install the generator wire with the nut.
  Torque: 9.8 N.m (100 kgf.cm, 7.0 ft.lbf)
5. Connect the generator connector.
6. Install the wire harness clamp.

  Fig 5: Installing Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT V BELT (See ENGINE (3MZ-FE) )
