Emission Control System (3MZ-FE): Location

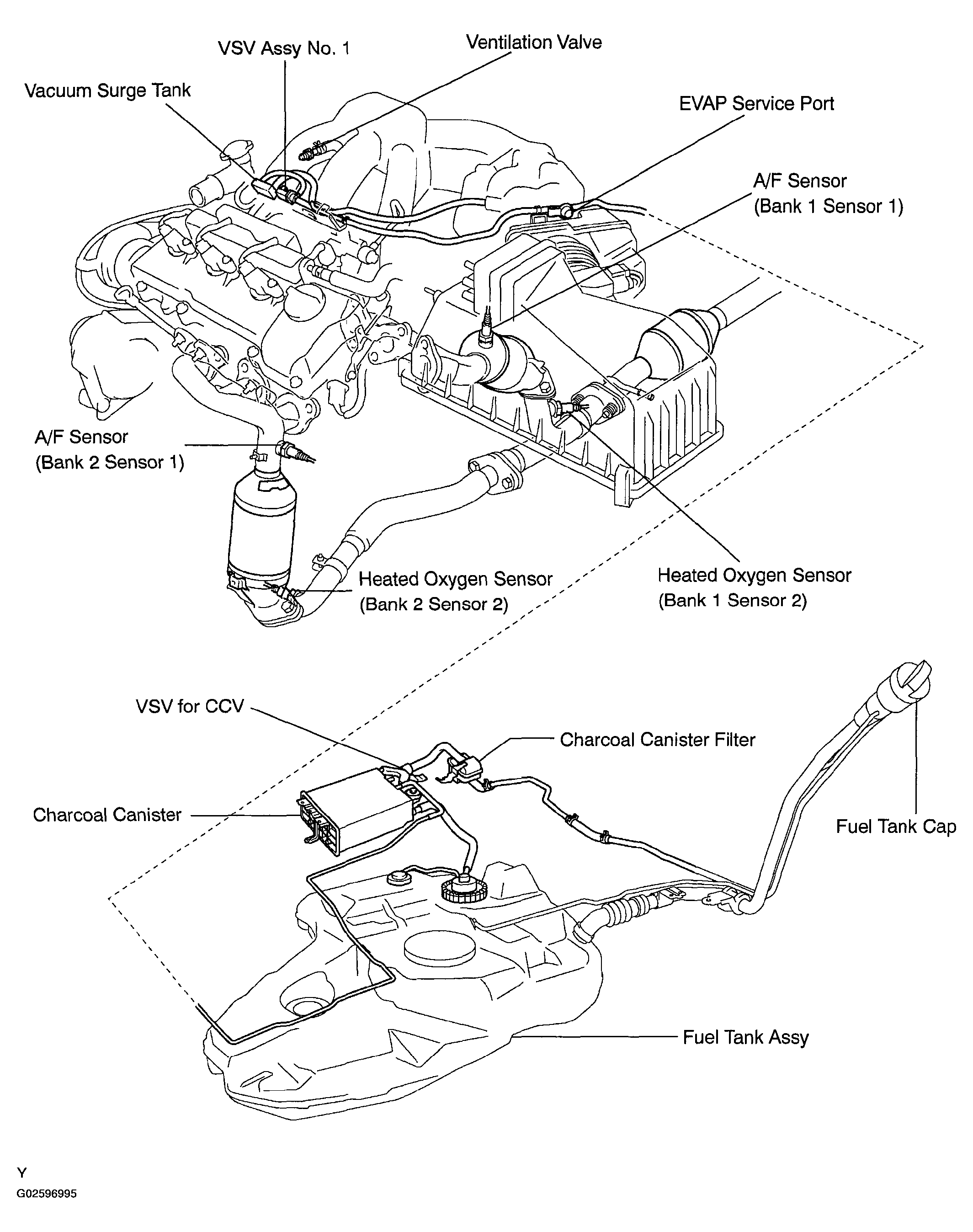

Fig 1: Locating Emission Control System (3MZ-FE) Components

G02596995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
