Generator ASSY (2AZ-FE): Components

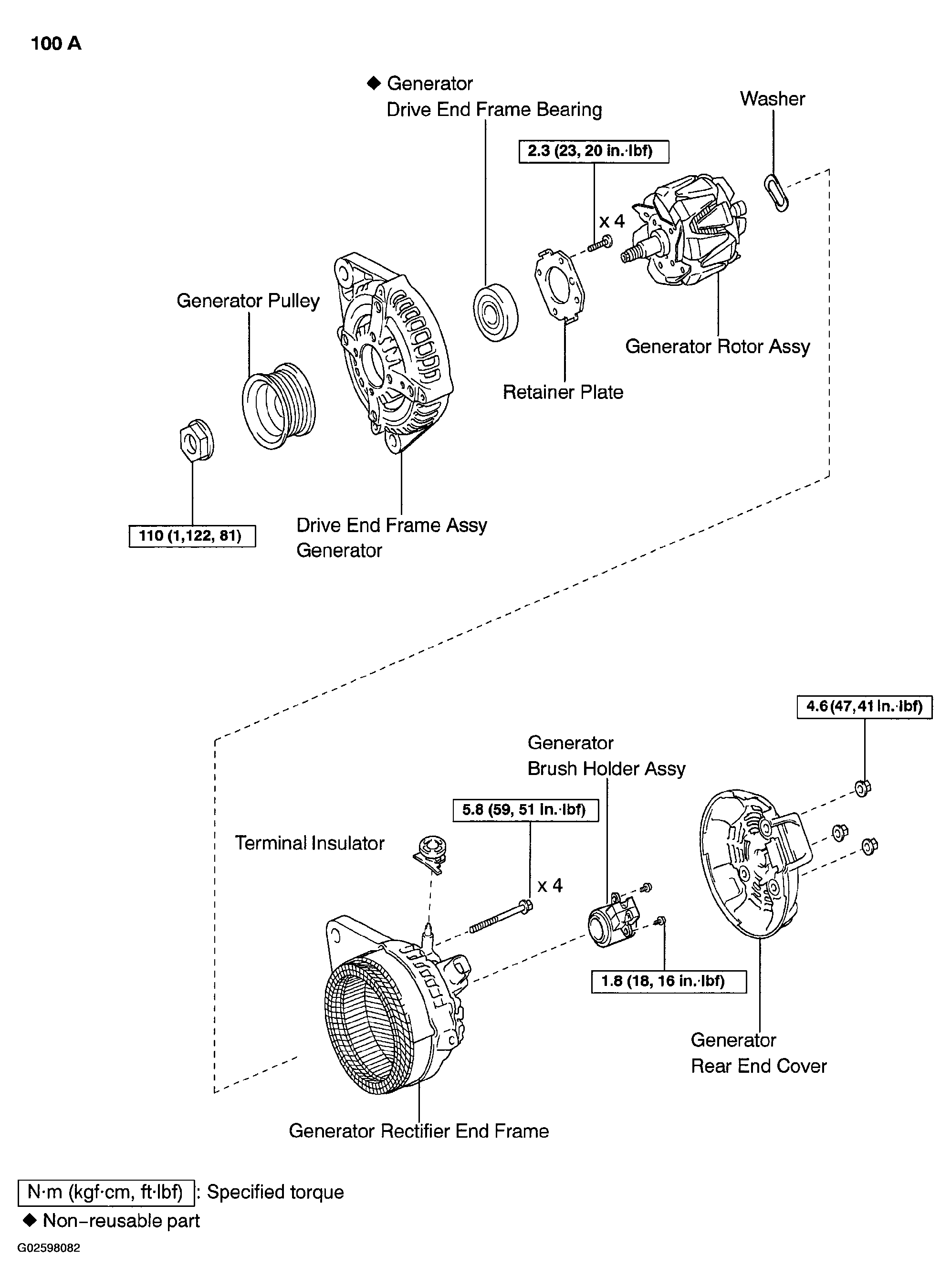

Fig 1: Generator Assy Replacement Components (2AZ-FE) And Torque Specifications (1 Of 2)
G02598082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

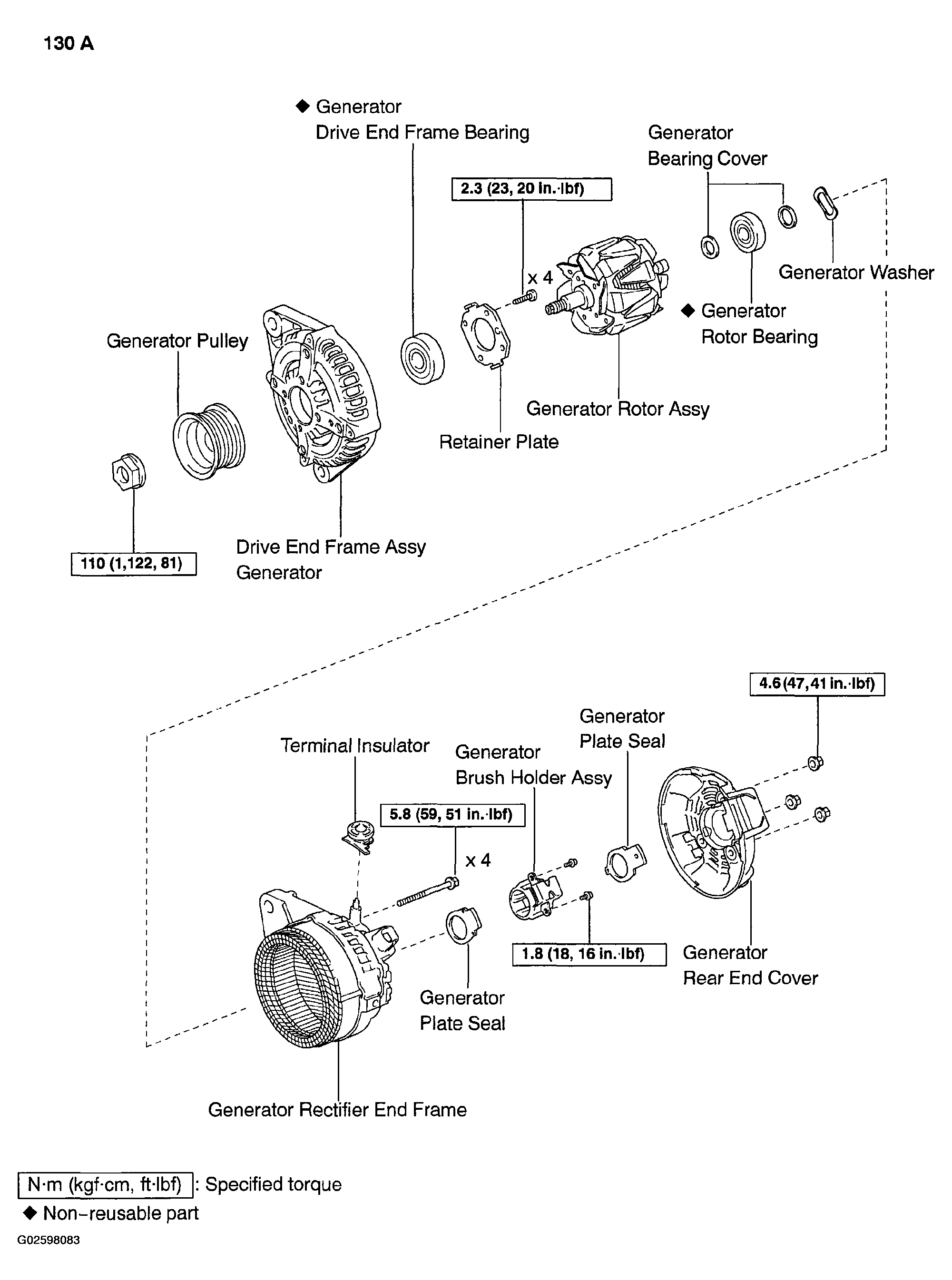

Fig 2: Generator Assy Replacement Components (2AZ-FE) And Torque Specifications (2 Of 2)
G02598083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
