Starter ASSY (3MZ-FE): Components

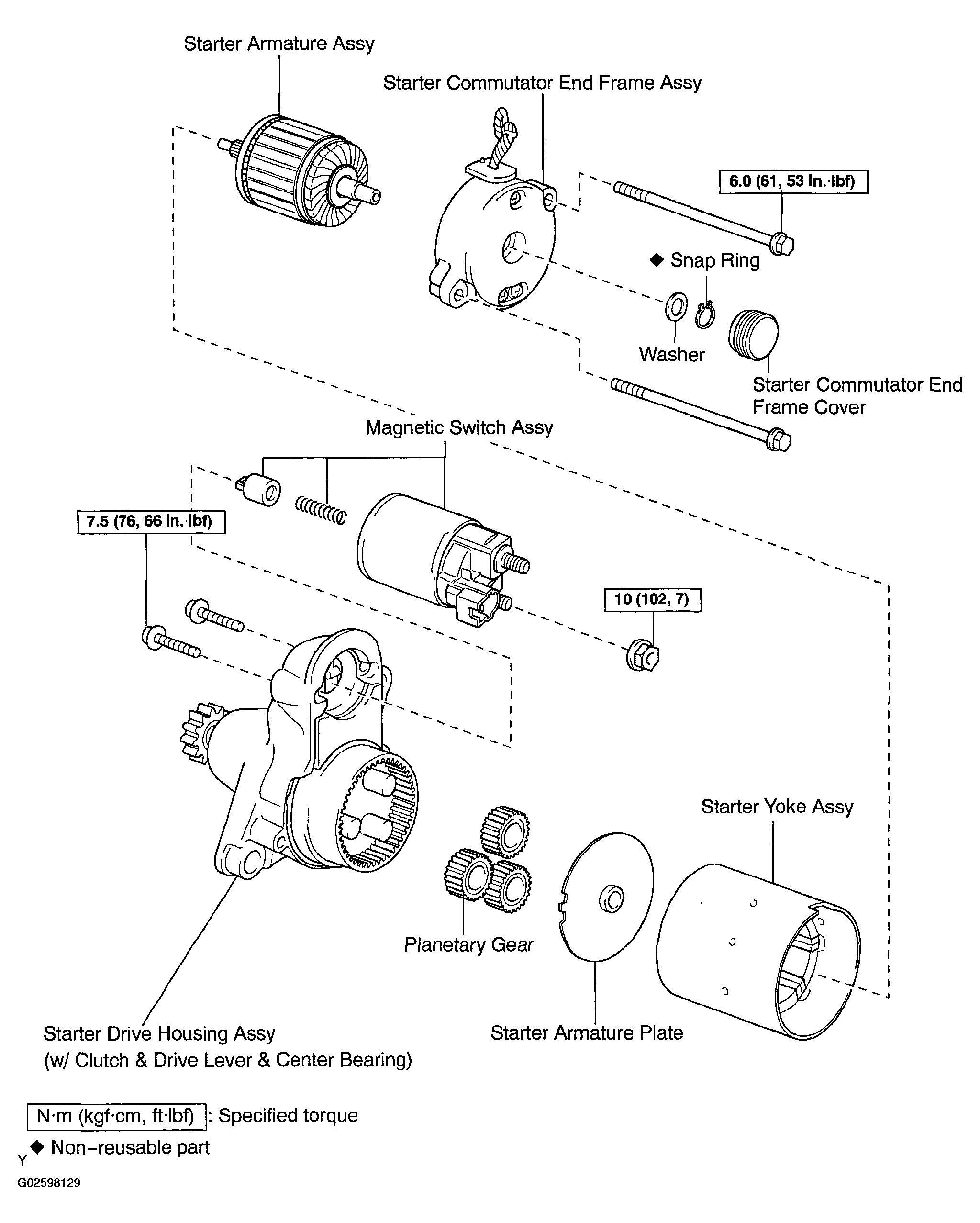

Fig 1: Starter Assy Replacement Components With Torque Specifications (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
