Cruise Control Main Switch: Replacement

HINT:

Installation is in the reverse order of removal.

1. PRECAUTION (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE CRUISE CONTROL MAIN SWITCH
   1. Disconnect the connectors.
   2. Remove the 2 screws and cruise control main switch.

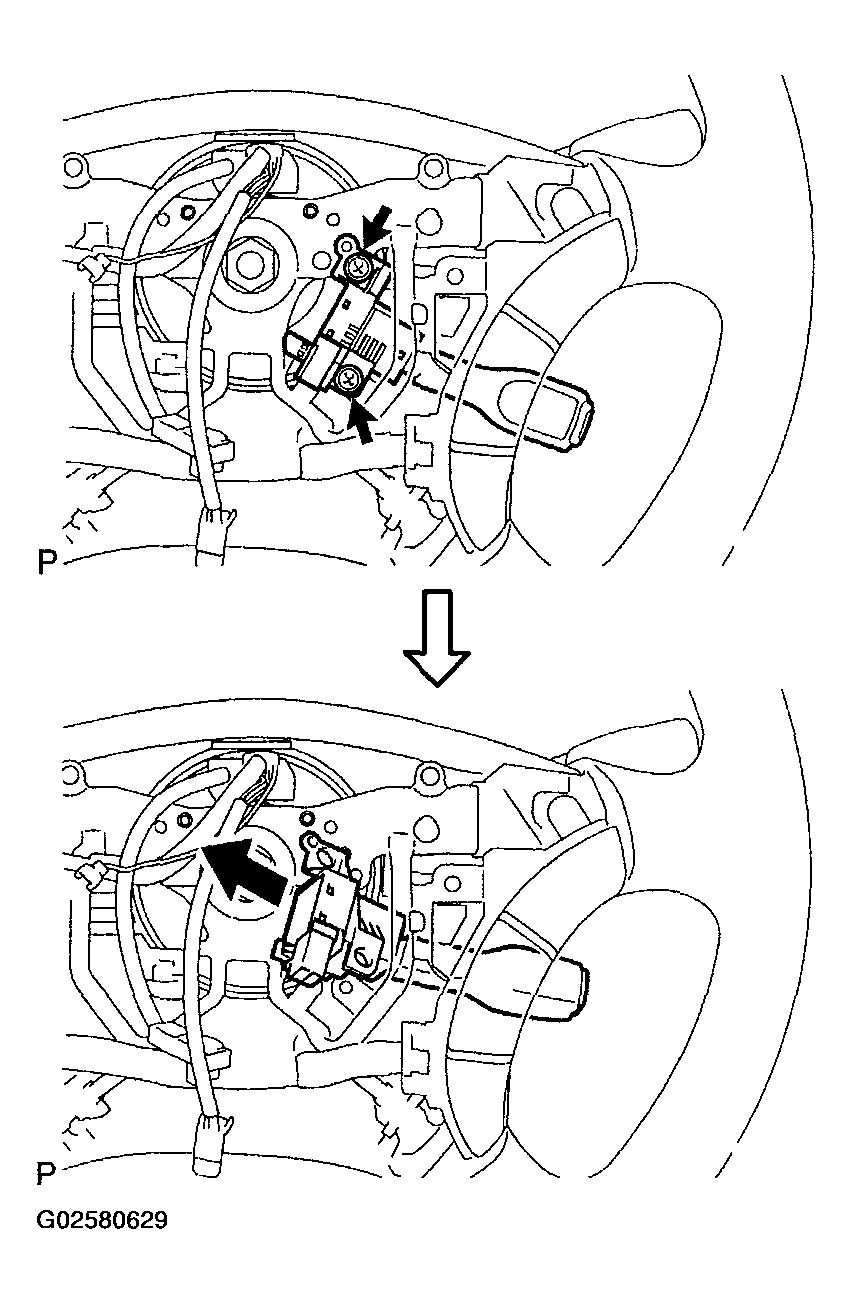

      Fig 1: Removing Cruise Control Main Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
10. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
