Section 41 (Stop Light System): Inspection
WARNING: This page is about a different car, the 2005 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

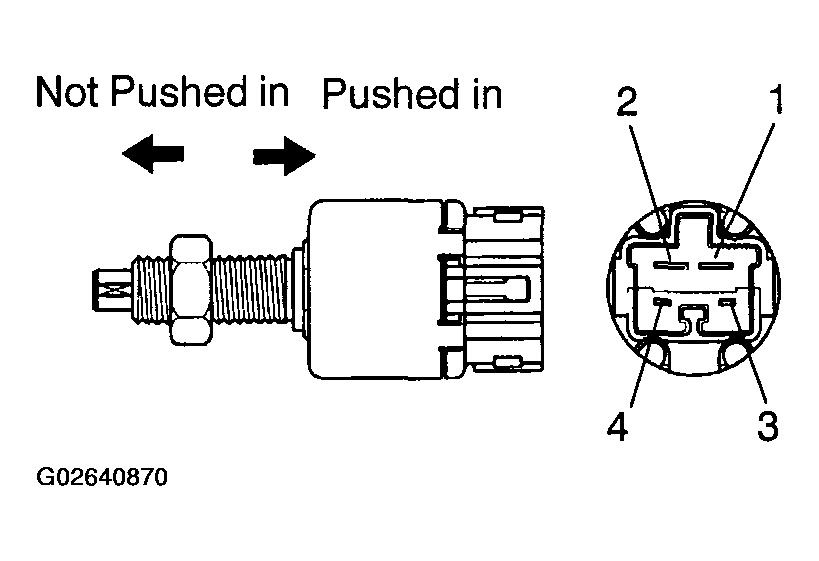

SWITCH POSITION SPECIFIED CONDITION
| Switch Position | Tester Connection | Specified Condition |
|---|---|---|
| Switch pin pushed in (pedal released) | 1 - 2 | No continuity |
| Switch pin not pushed in (pedal depressed) | 1 - 2 | Continuity |
| Switch pin pushed in (pedal released) | 3 - 4 | Continuity |
| Switch pin not pushed in (pedal depressed) | 3 - 4 | No continuity |
If the continuity is not as specified, replace the switch.
