Section 39 (Front Fog Light System): Inspection

WARNING: This page is about a different car, the 2005 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

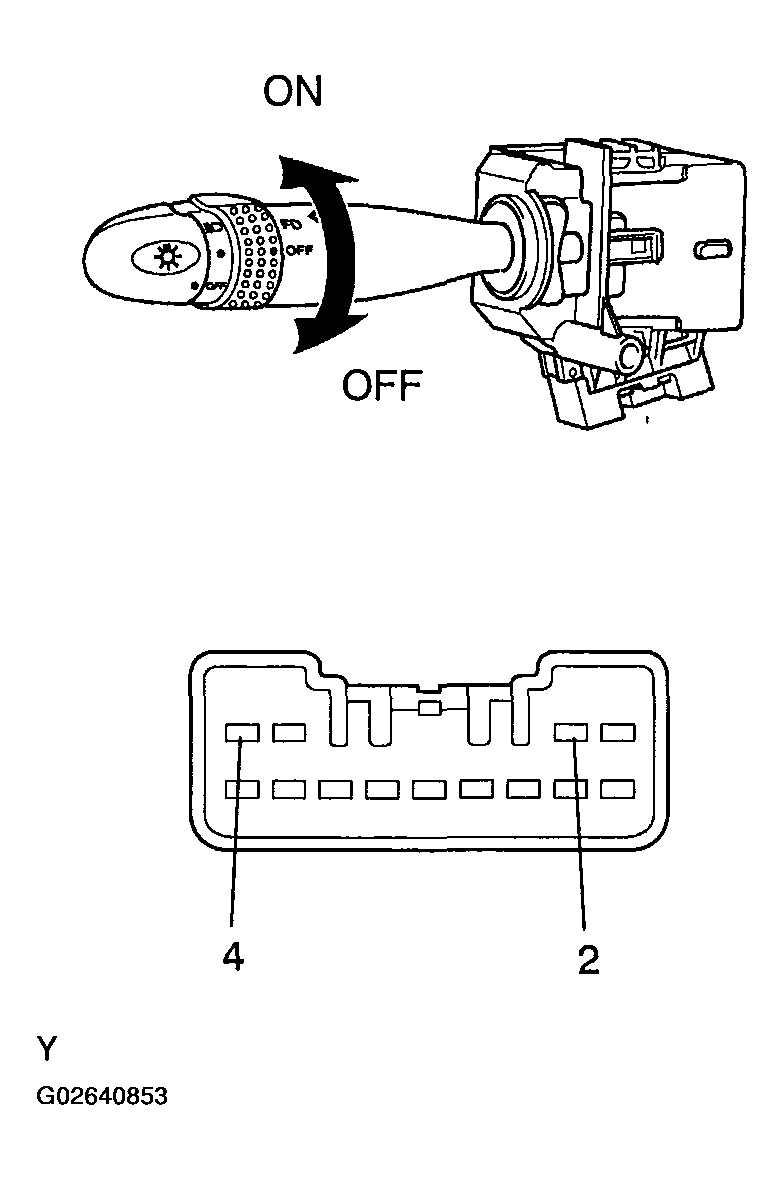

INSPECT FRONT FOG LIGHT SWITCH CONTINUITY

FRONT FOG LIGHT SWITCH CONTINUITY

Switch Position	Tester Connection	Specified Condition
OFF	2 - 4	No continuity
ON	2 - 4	Continuity

If the continuity is not as specified, replace the switch.

Fig 1: Inspecting Front Fog Light Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

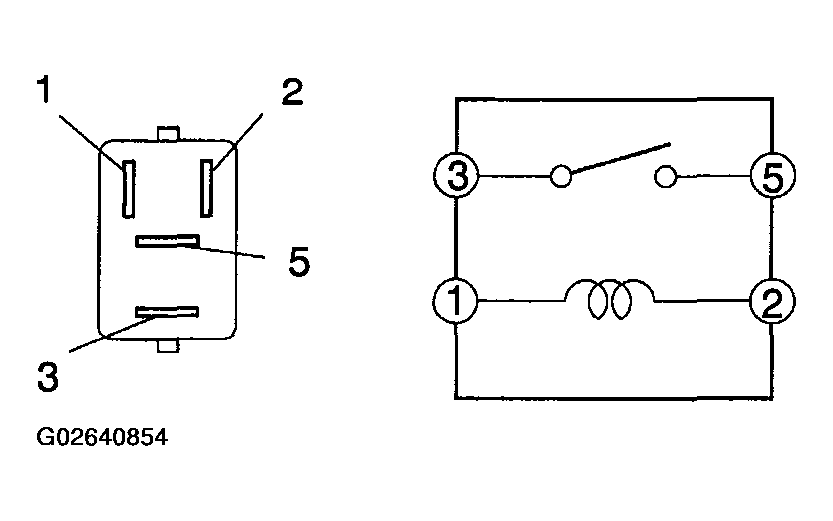

INSPECT FRONT FOG LIGHT RELAY CONTINUITY

FRONT FOG LIGHT RELAY CONTINUITY

Tester Connection	Specified Condition
3 - 5	No continuity
3 - 5	Continuity (When battery voltage is applied to terminals 1 and 2)

If the continuity is not as specified, replace the relay.

Fig 2: Inspecting Front Fog Light Relay Continuity
