Section 12 (Can Communication System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTCs COMBINATION TABLE

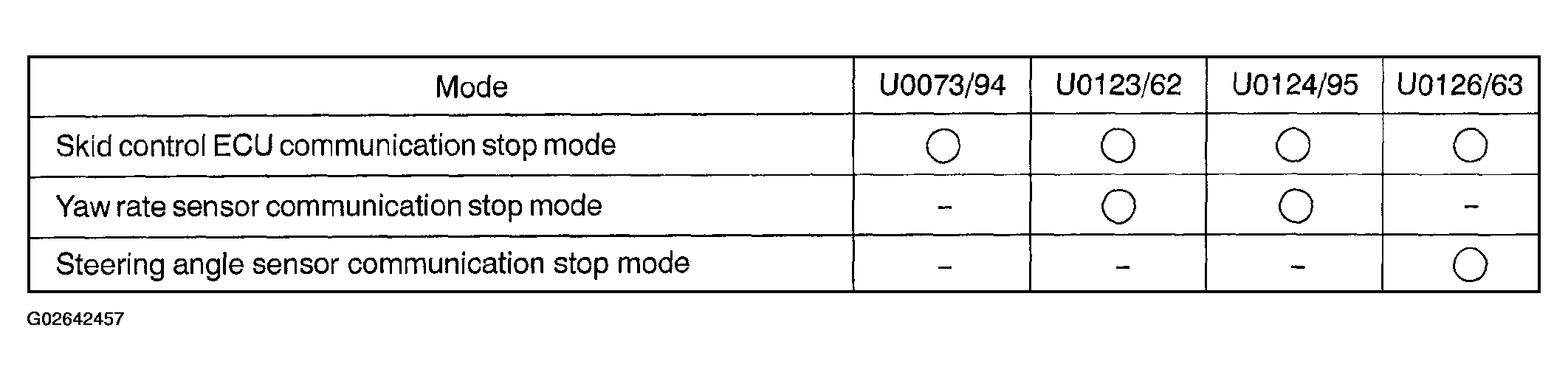

    Fig 1: DTC Combination Table
    G02642457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

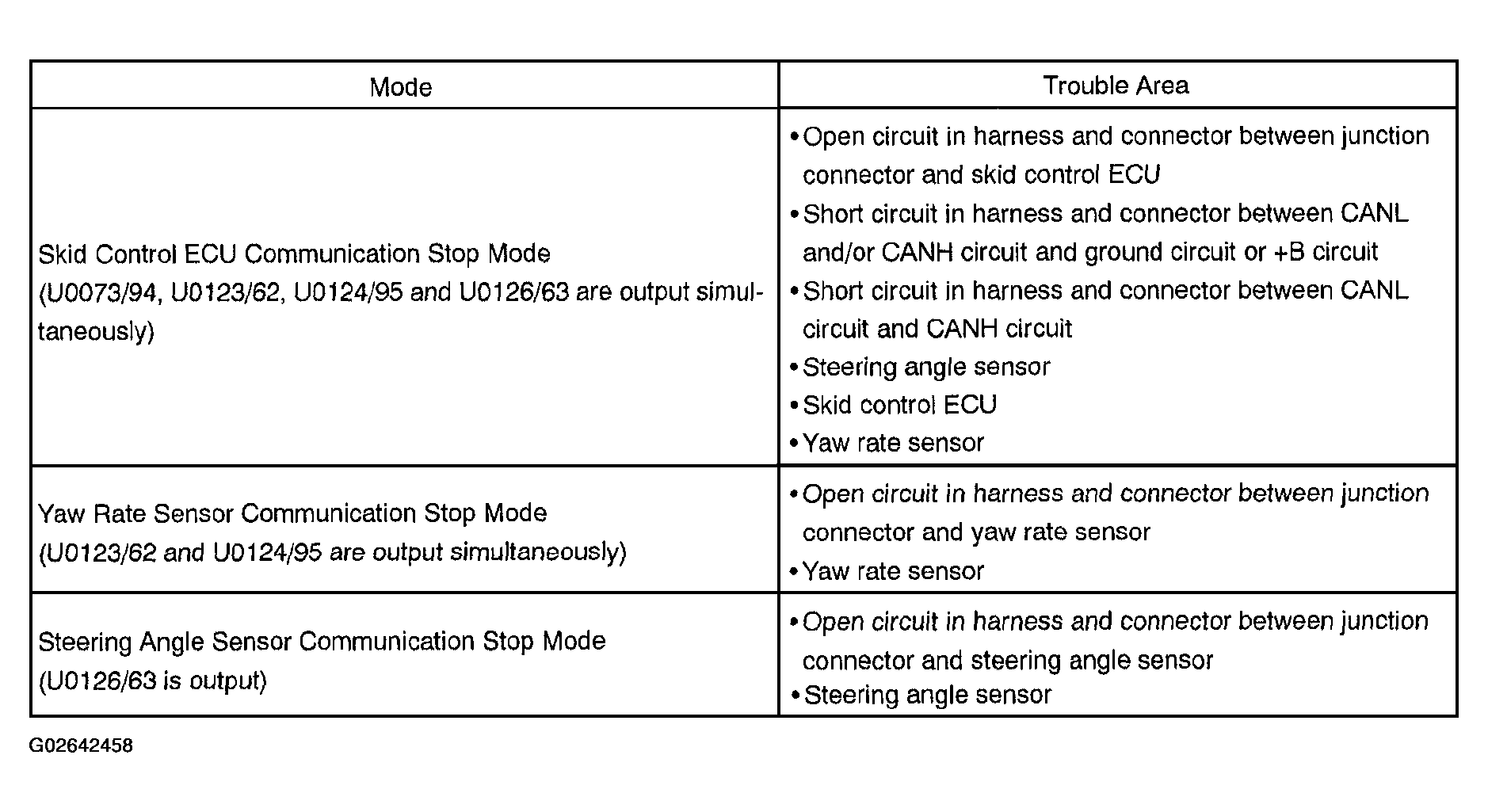

    Fig 2: DTC Combination Troubleshooting Table
    G02642458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
