Home >> Toyota >> 2005 >> ECHO 2D Sedan, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Output Shaft >> Components

Output Shaft: Components

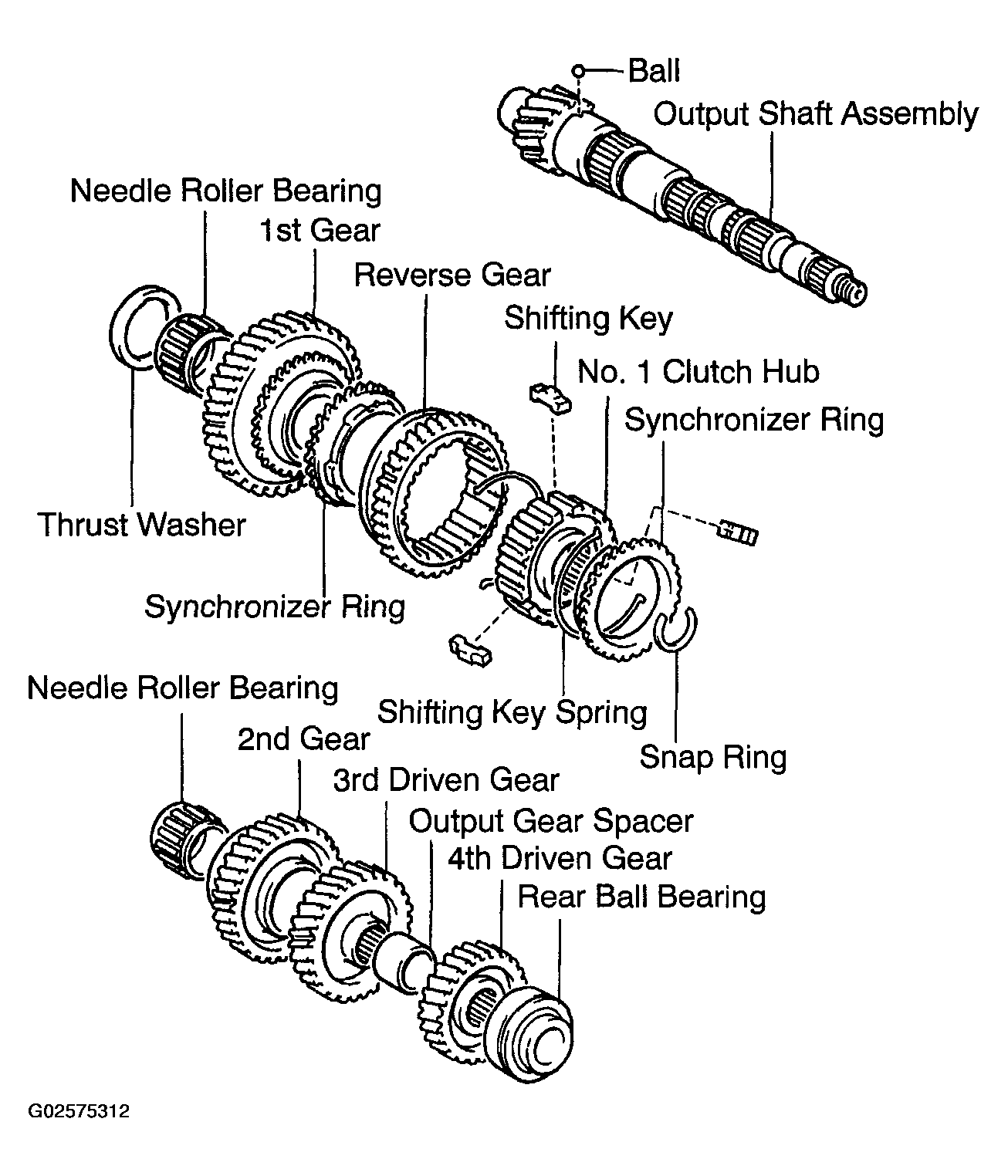

Fig 1: Identifying Output Shaft Components

G02575312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
