Manual Transaxle Unit: Components

Fig 1: Identifying Manual Transaxle Unit Components (1 Of 2)
G02575244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

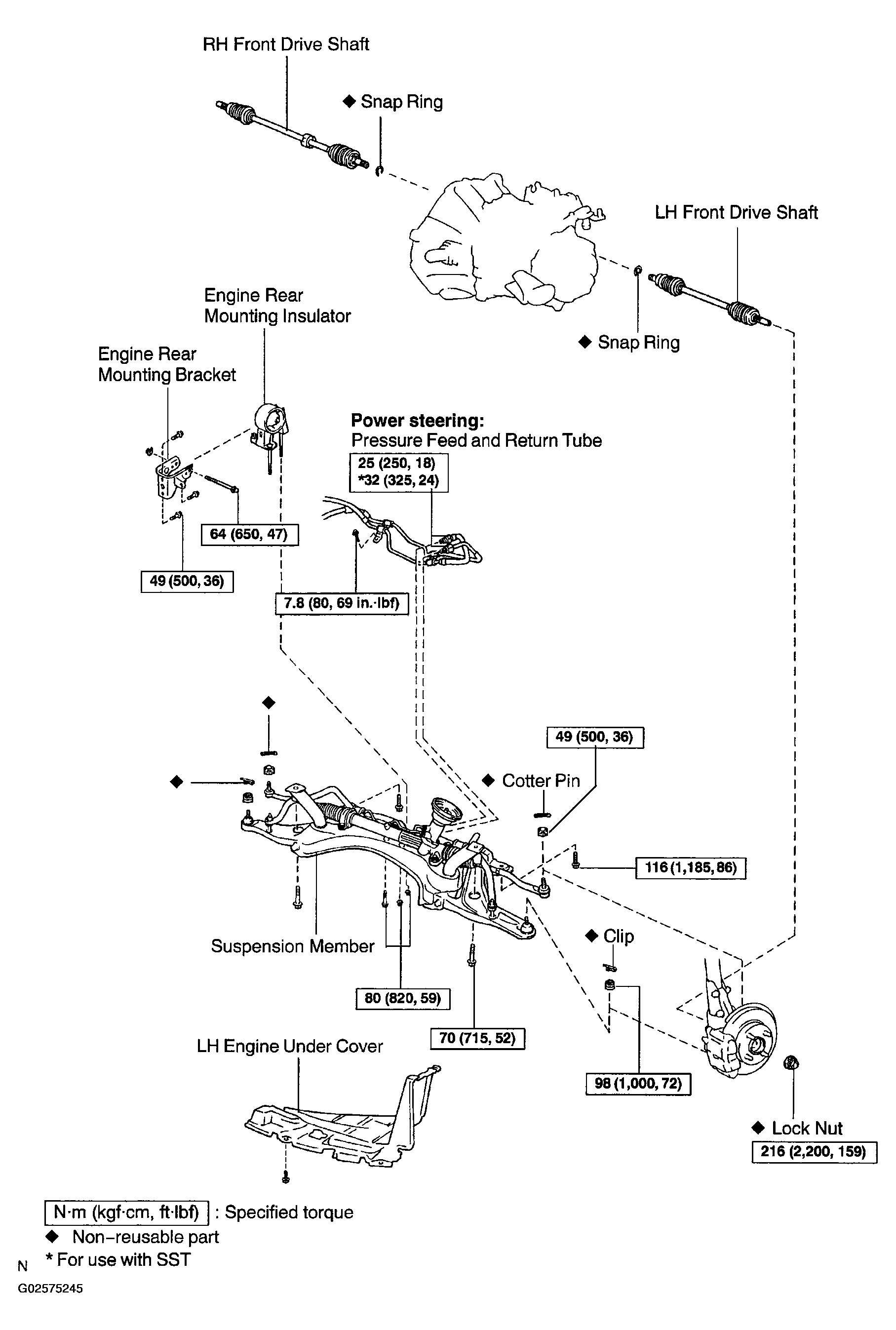

Fig 2: Identifying Manual Transaxle Unit Components (2 Of 2)
G02575245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
