Manual Transaxle Assembly: Components

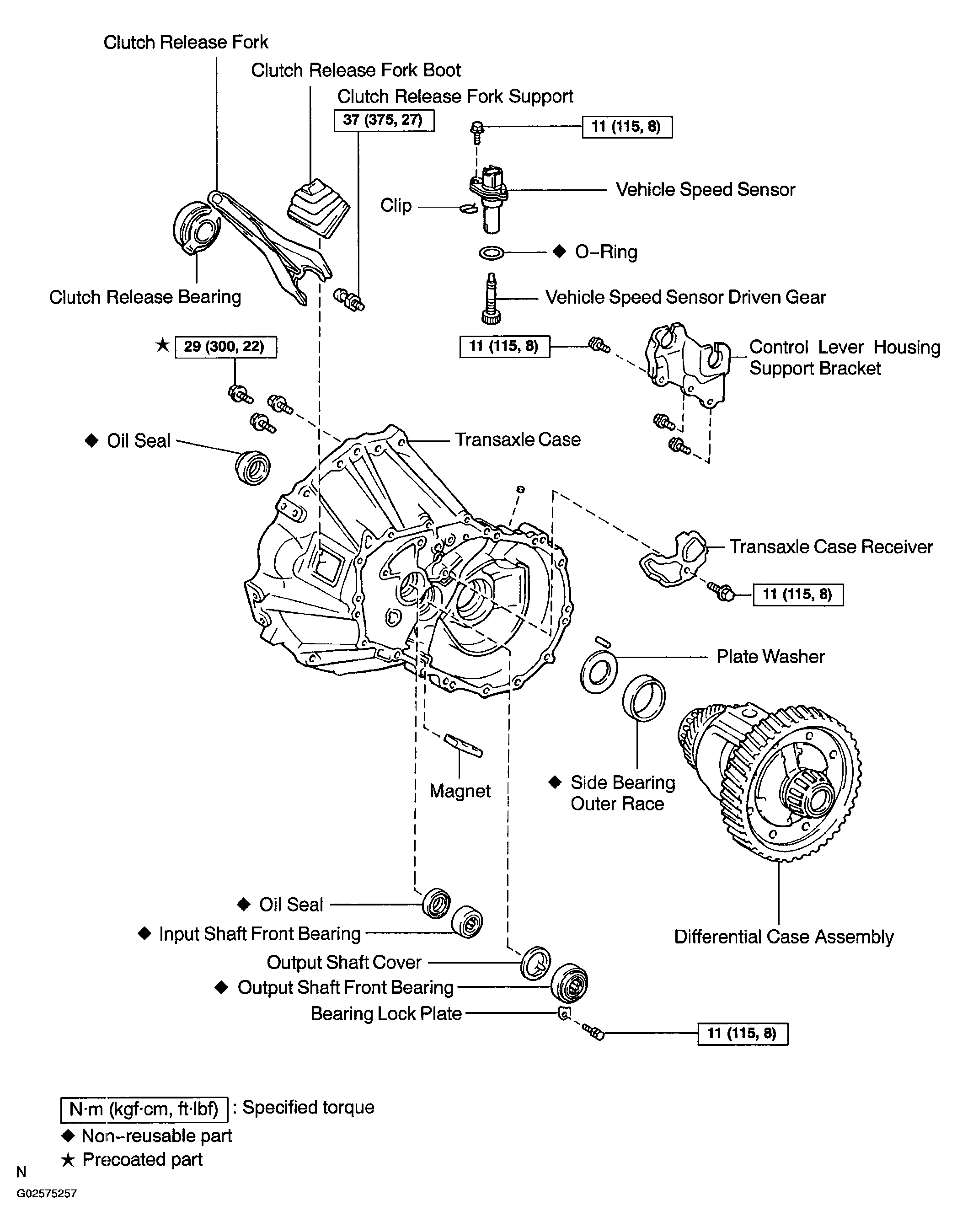

Fig 1: Identifying Manual Transaxle Assembly Components (1 Of 3)
G02575257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

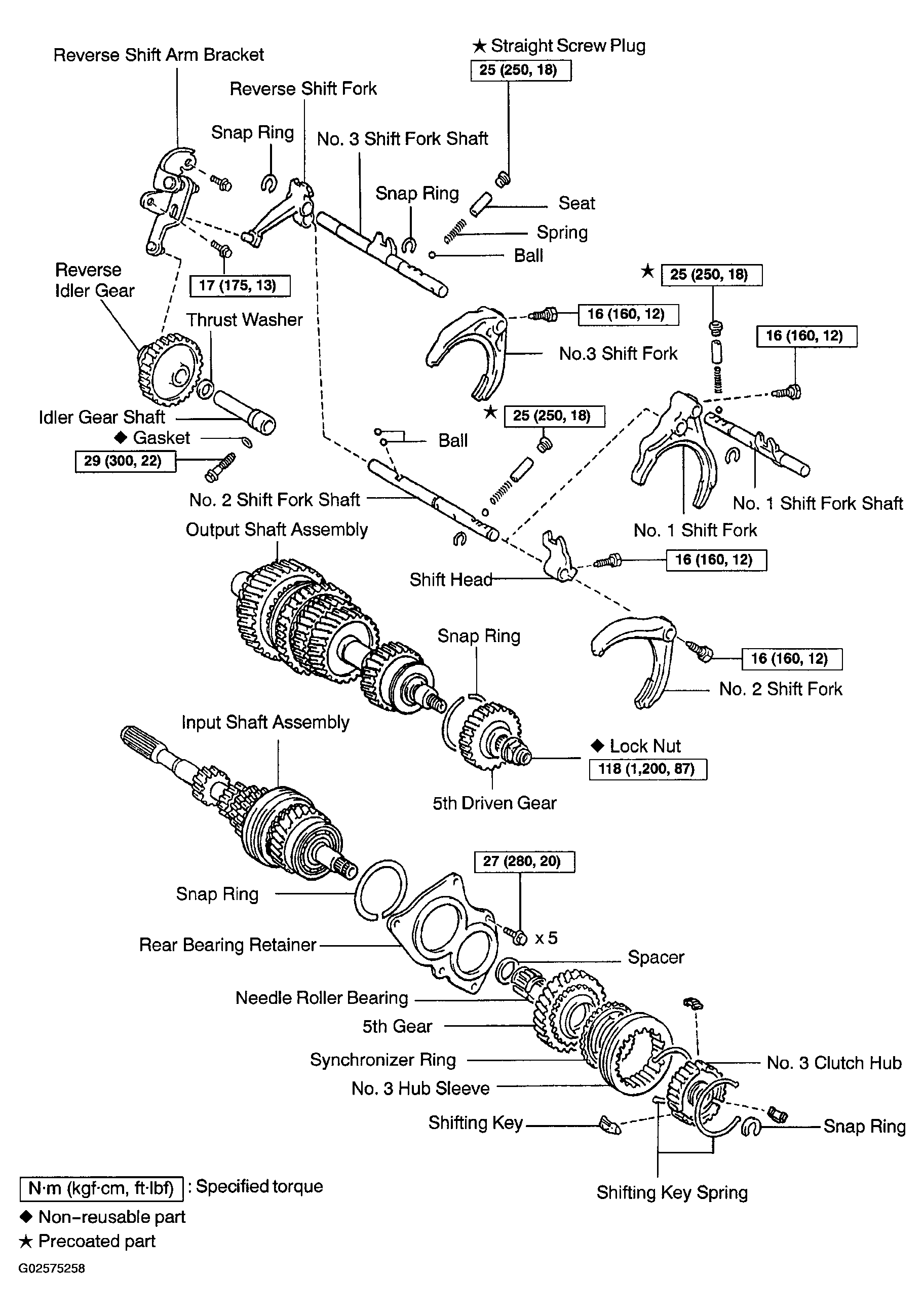

Fig 2: Identifying Manual Transaxle Assembly Components (2 Of 3)
G02575258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

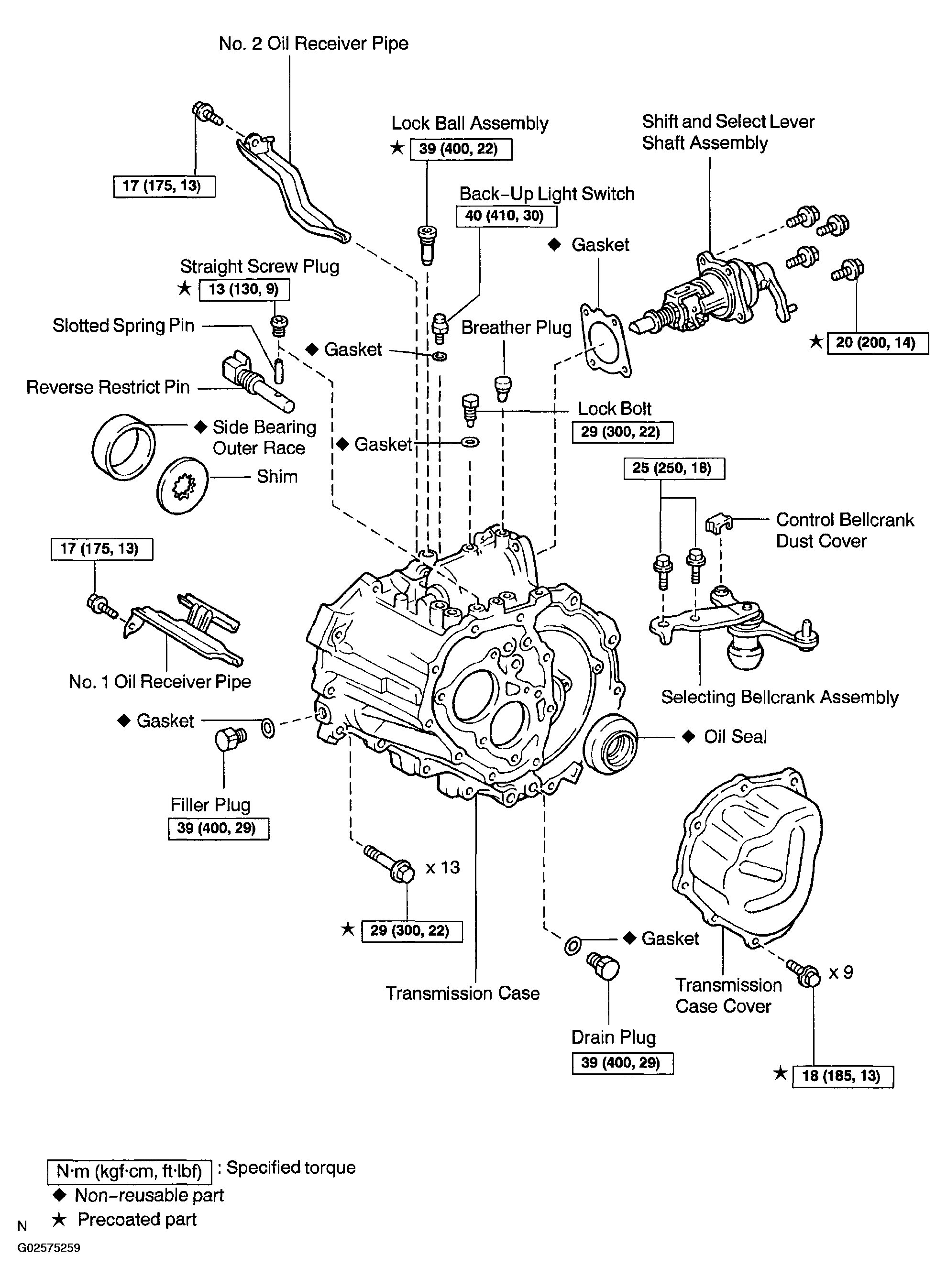

Fig 3: Identifying Manual Transaxle Assembly Components (3 Of 3)
G02575259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
