Tilt Steering Column: Components

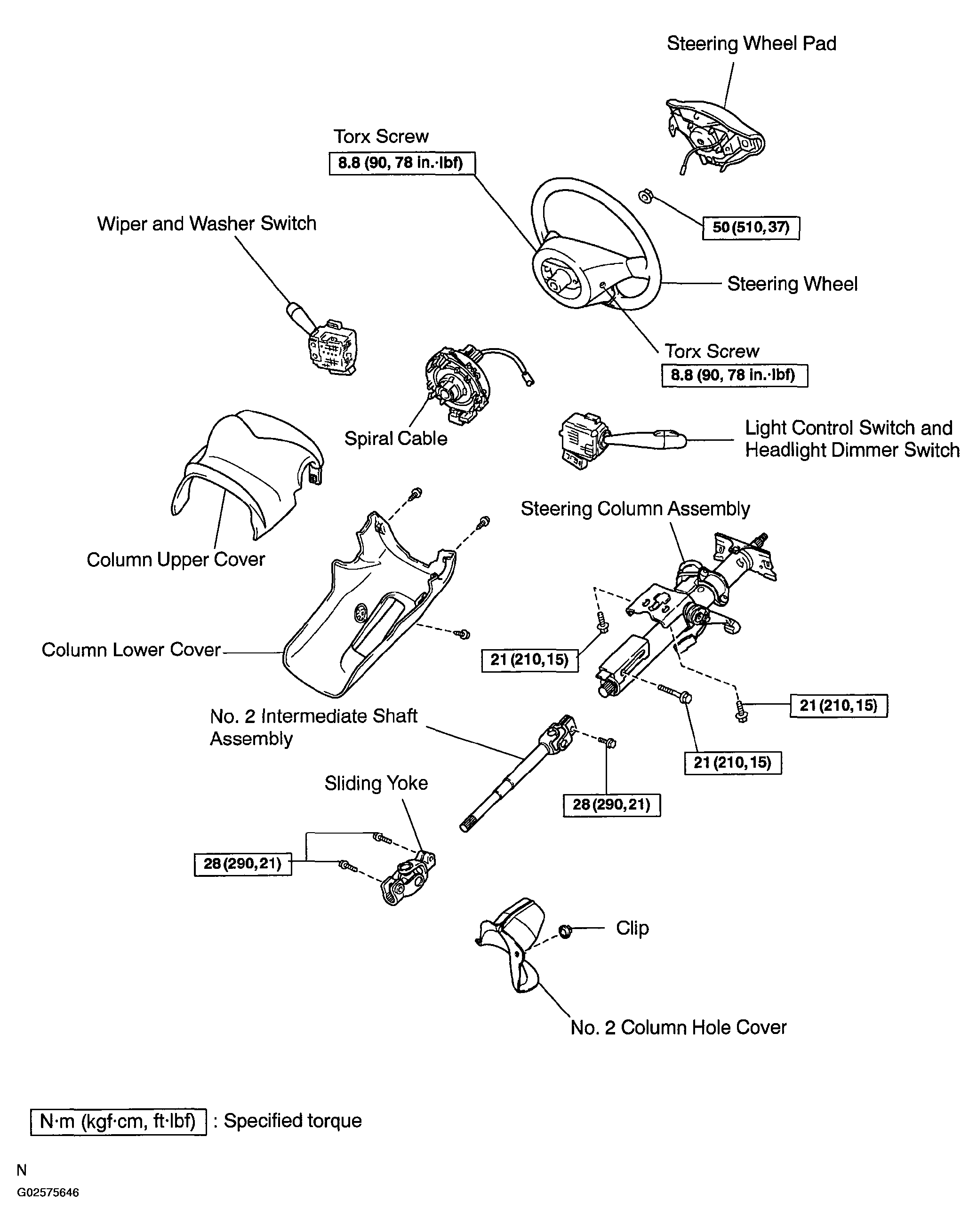

Fig 1: Removing Tilt Steering Column Components (1 Of 2)
G02575646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

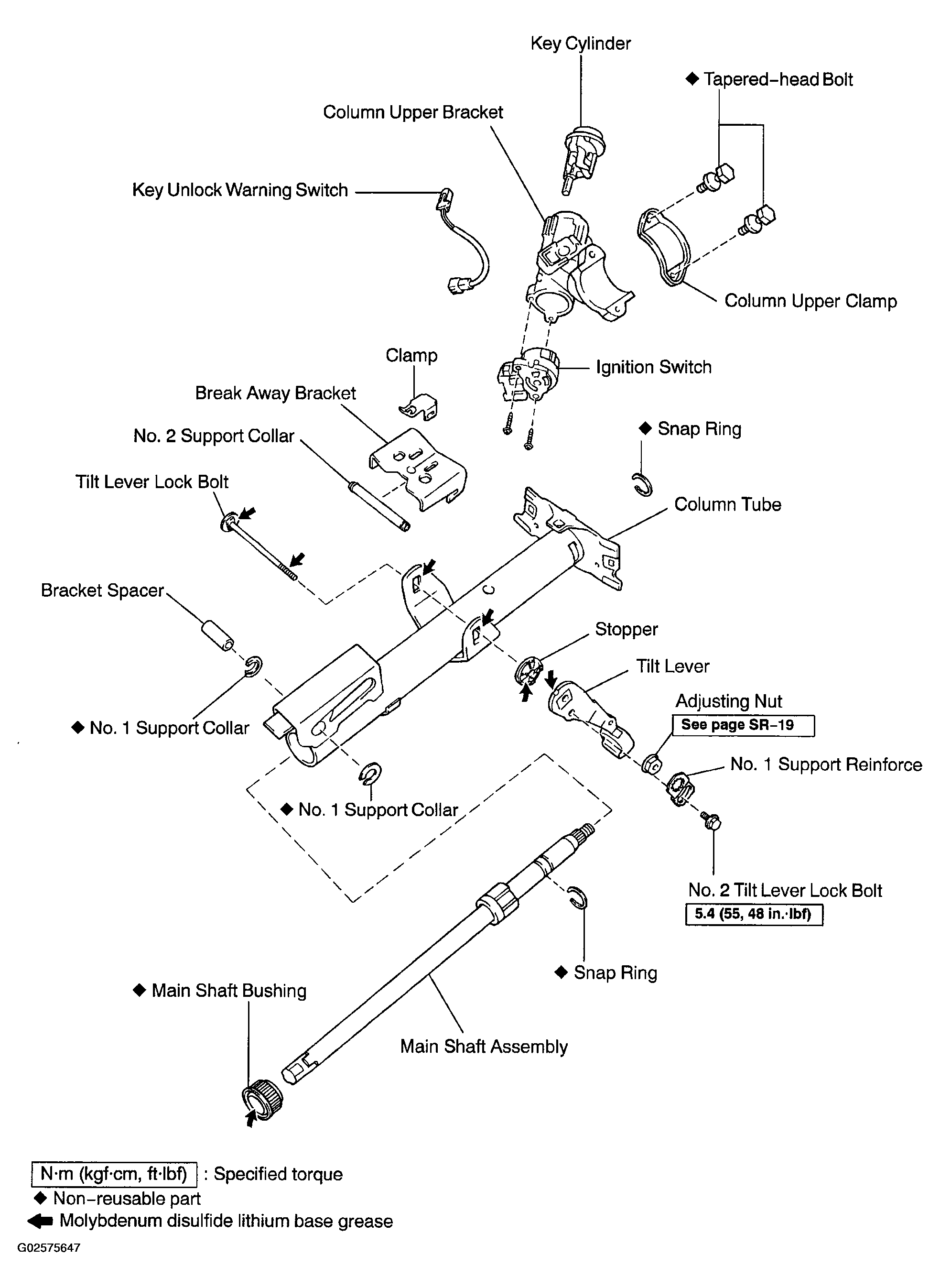

Fig 2: Removing Tilt Steering Column Components (2 Of 2)
G02575647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
