Power Steering Gear: Replacement

NOTE: When using a vise, do not overtighten it.

IF NECESSARY, REPLACE OIL SEAL

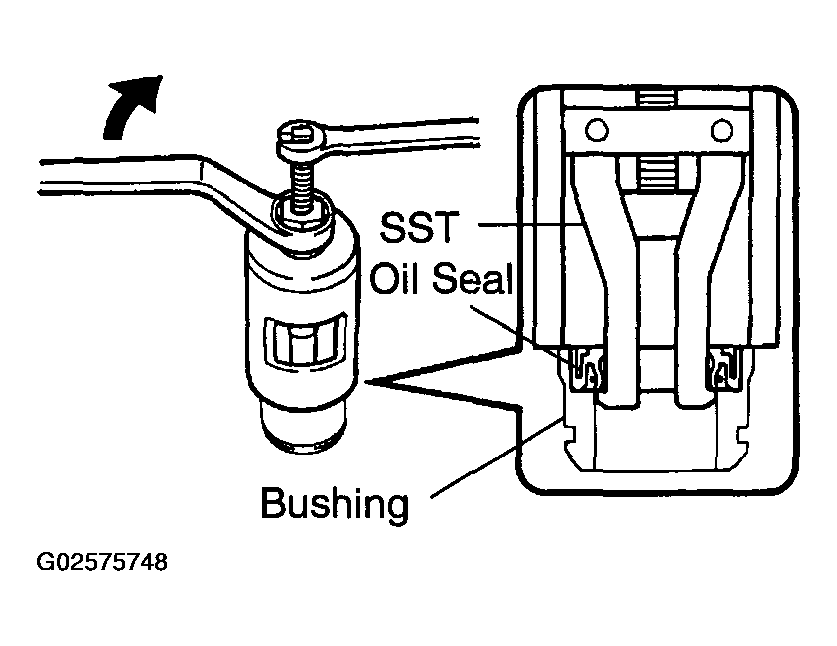

1. Using SST, remove the oil seal from the bushing.
  SST 09612-24014 (09613-22011)

  NOTE: Be careful not to damage the bushing.

  NOTE: As shown in the illustration, from the opposite side of SST confirm that its claws are firmly caught on the oil seal.

  Fig 1: Removing Oil Seal From Bush Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat a new oil seal lip with power steering fluid.

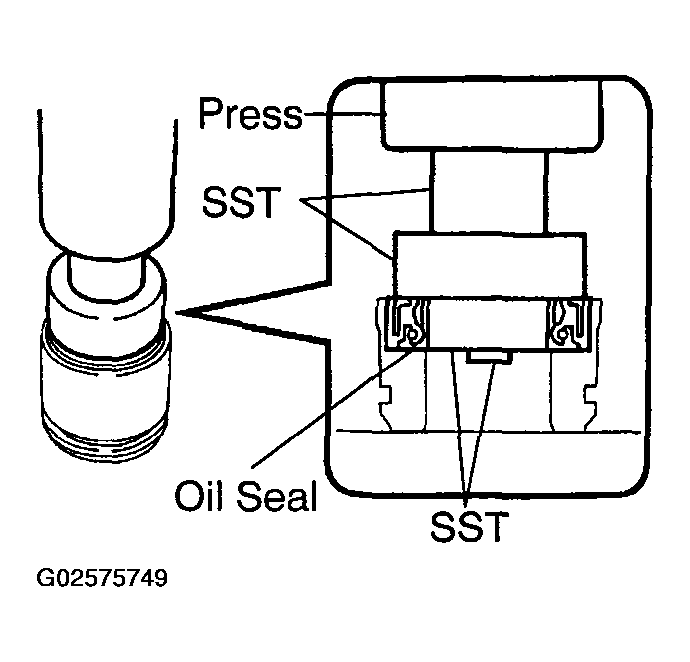

3. Using SST, press in the oil seal.
SST 09950-60010 (09951-00210, 09951-00340, 09952-06010), 09950-70010 (09951-07100)

NOTE: Make sure that the oil seal is installed facing in the correct direction.

Fig 2: Pressing Oil Seal Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, REPLACE TEFLON RING AND O-RING

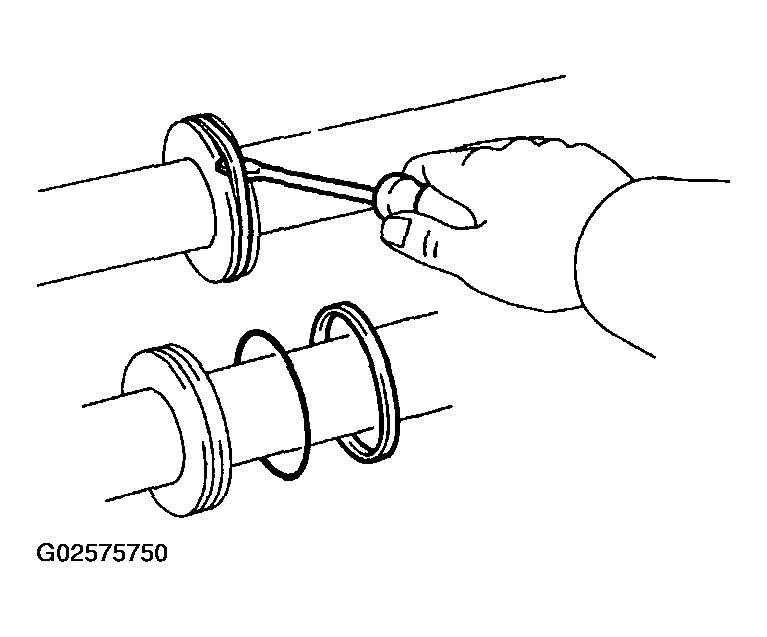

1. Using a screwdriver, remove the Teflon ring and O-ring from the steering rack.
  NOTE: Be careful not to damage the groove for the Teflon ring.
2. Coat a new O-ring with power steering fluid and install it to the steering rack.

  Fig 3: Removing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

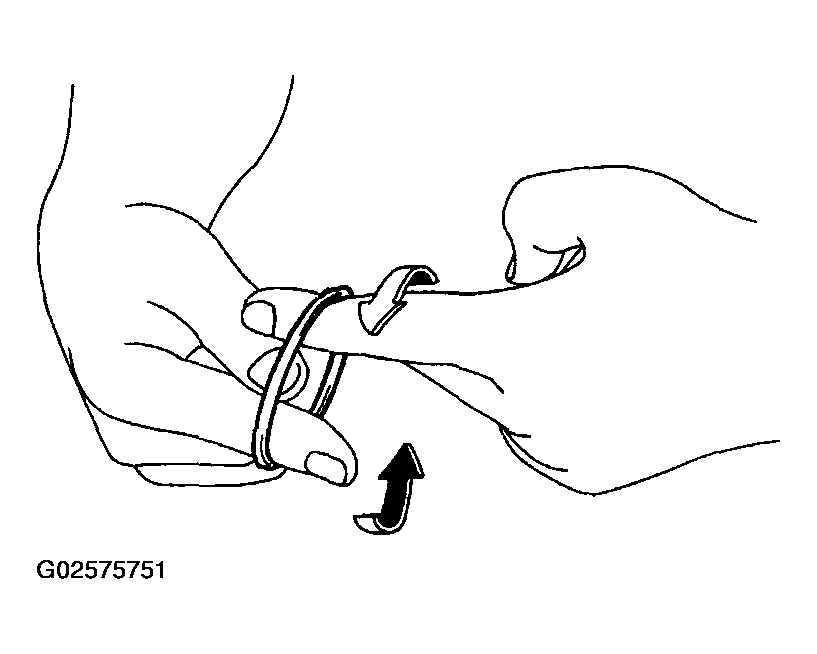

3. Expand a new Teflon ring with your fingers.
  NOTE: Be careful not to overexpand the Teflon ring.

  Fig 4: Expanding Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Coat the Teflon ring with power steering fluid.

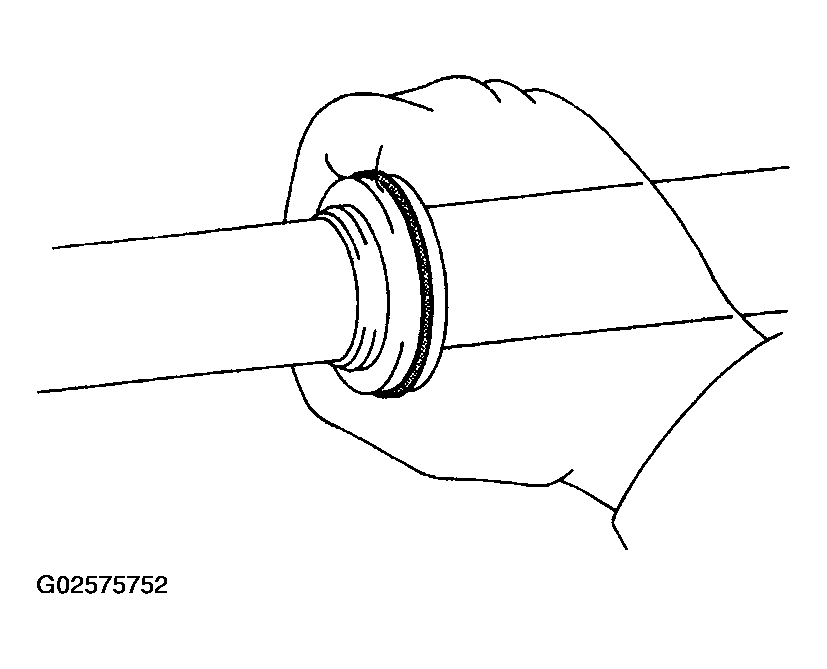

5. Install the Teflon ring to the steering rack and settle it down with your fingers.
6. Using a screwdriver, remove the 4 Teflon rings from the control valve assembly.
Fig 5: Installing Teflon Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
