SST (Special Service Tools)

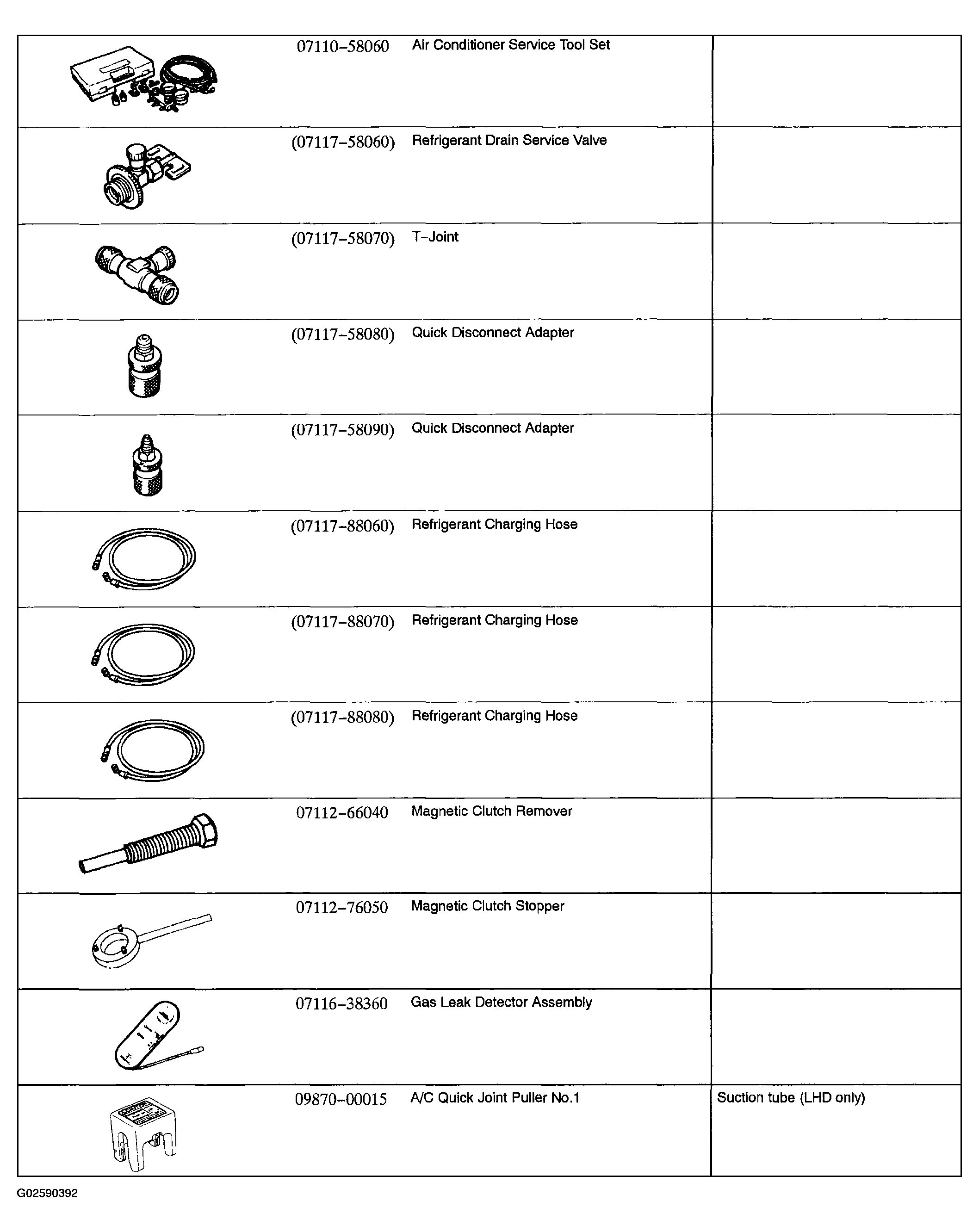

Fig 1: Identifying Air Conditioning Special Service Tools (1 of 2)
G02590392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

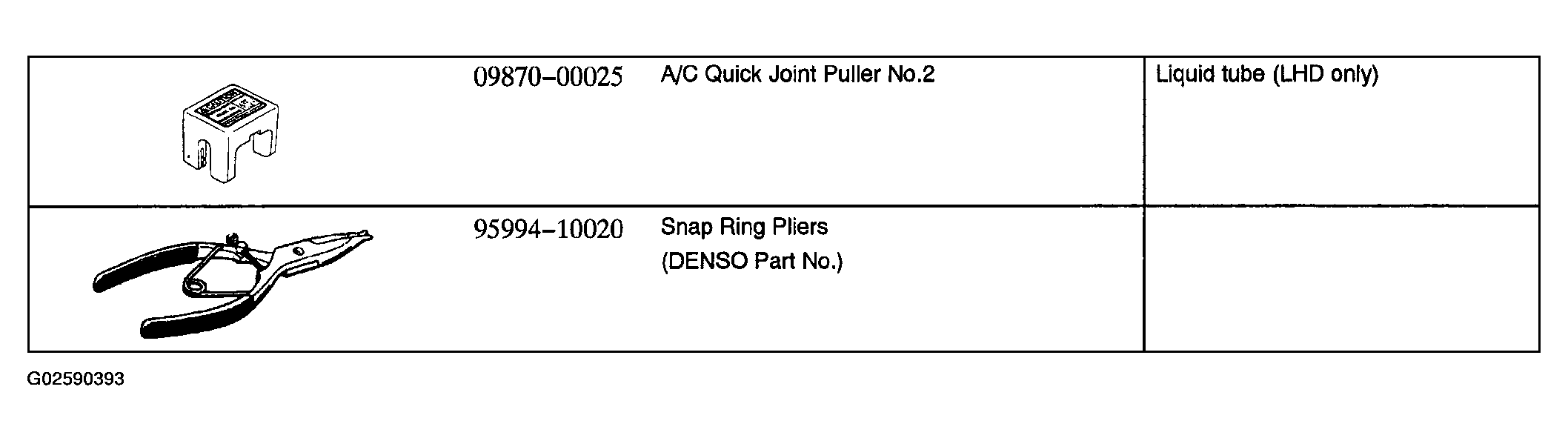

Fig 2: Identifying Air Conditioning Special Service Tools (2 of 2)
G02590393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
